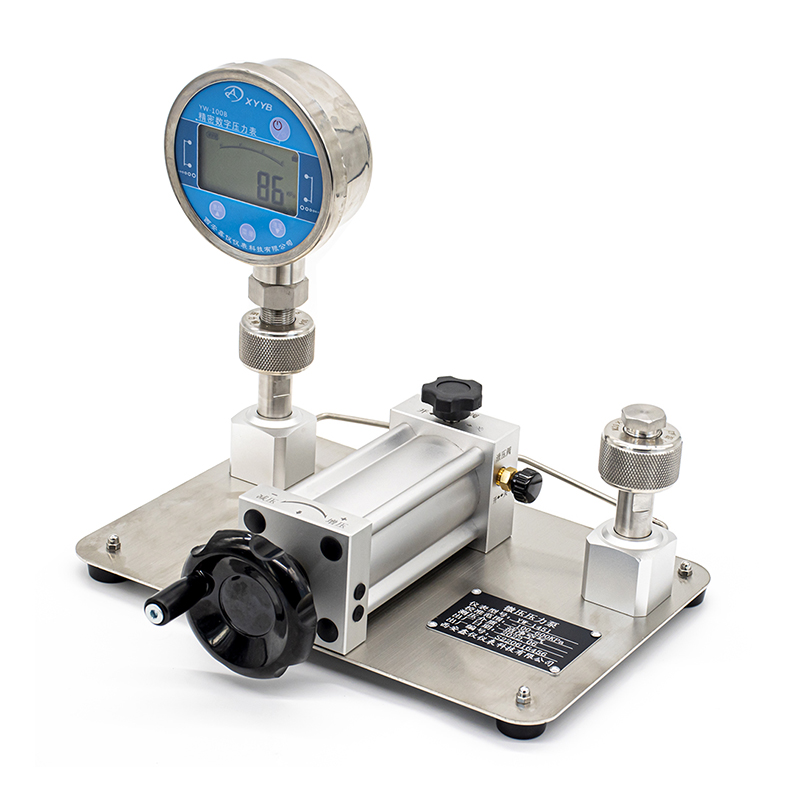

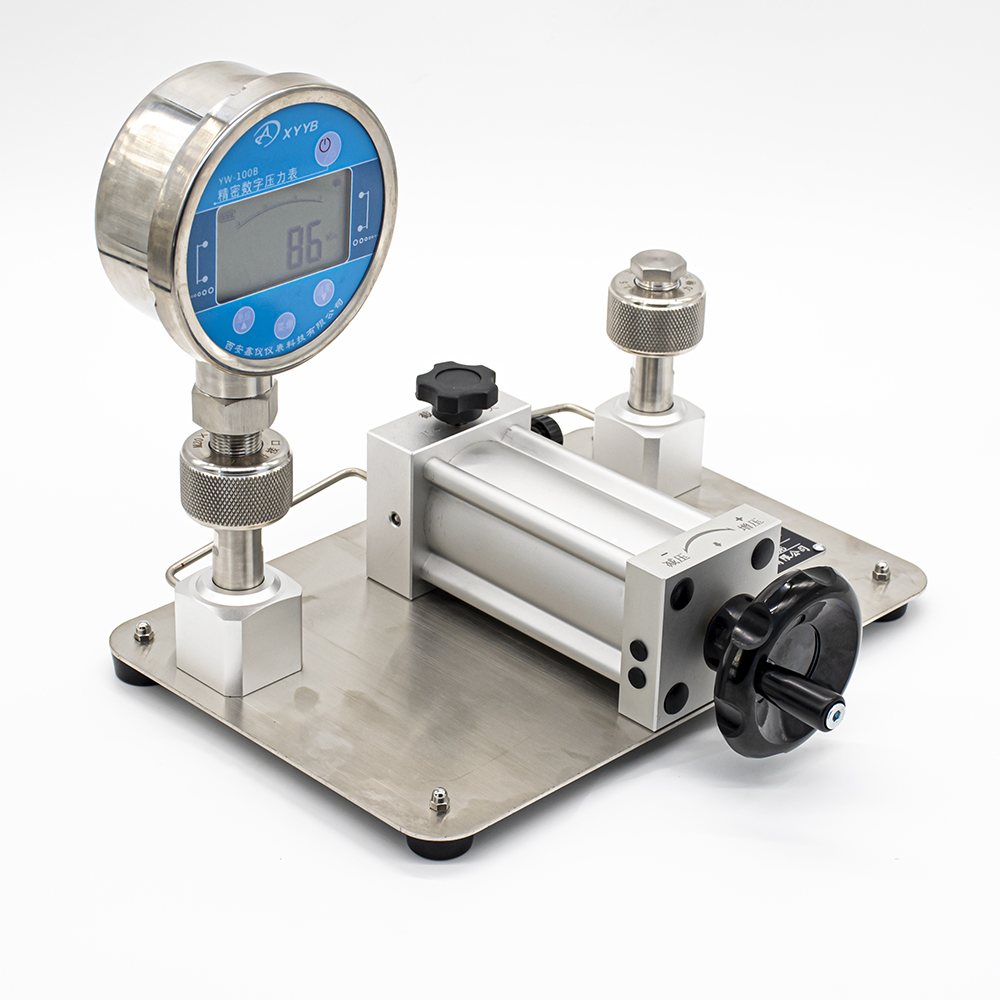

Micro Pressure Calibrator Pump

The micro-pressure gas pressure source is made of high-quality stainless steel and aluminum alloy materials, and the range of seals and connectors imported from Germany is refined.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

XINYI-1451B Micro-pressure gas pressure source (micro-pressure gas generator) is made of high-quality stainless steel and aluminum alloy materials, and imported seals and connectors from Germany.

Micro-pressure gas pressure source is one of the main equipments for calibrating micro (differential) pressure transmitters, micro-pressure sensors, micro-pressure diaphragm pressure gauges and other micro-pressure instruments. In a digital pressure calibration system, it can provide a stable and small enough pressure source to control the pressure change.

The portable micro-pressure pressure pump is a manual pneumatic pressure source. It is suitable for debugging in pressure process control, and it can also be matched with a pressure calibrator or a precision pressure gauge without a pressure source to provide a stable and reliable pressure source when calibrating pressure gauges, pressure transmitters, pressure switches and other pressure instruments.

Features

◆Simple operation and easy maintenance

◆Stable rise and fall, less affected by external temperature

◆Minimum controllable adjustment fineness is high

◆Excellent sealing performance, close to zero leakage

Technical indicators

◆Pressure range:

(-50～0～50)kPa

(-95～0～600)kPa

◆Minimum controllable adjustment: 0.01Pa

◆Dimensions: 270mm×210mm×100mm

◆Weight: 2.6kg
