Product Description

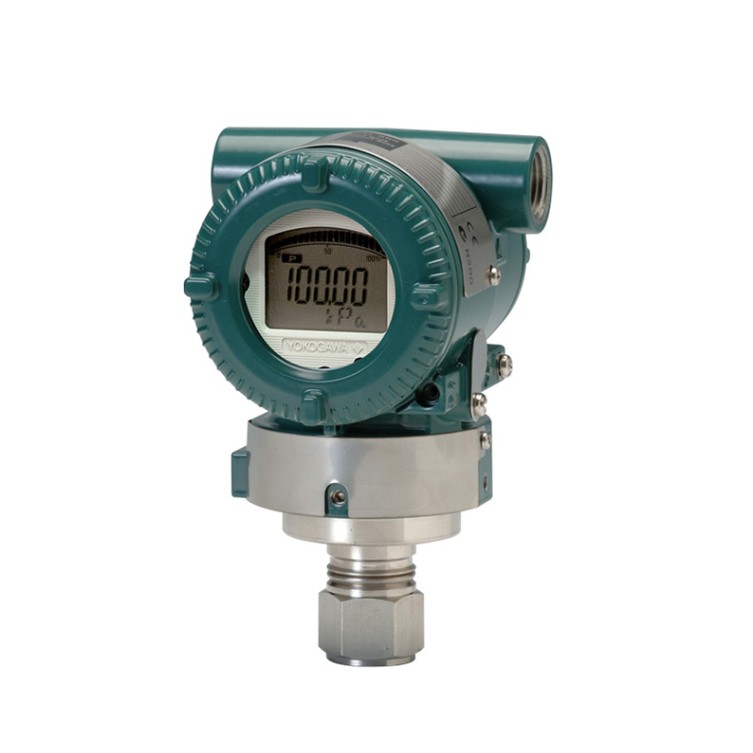

The  EJX510A  high-performance absolute pressure transmitter adopts single-crystal silicon resonant sensor technology and is  suitable for measuring the pressure of liquids, gases or steam. The  EJX510A  converts the measured pressure into a 4～20mA DC current signal output, and features fast response, remote  configuration, self-diagnosis and other functions.

Main Functions

1. Remote Management: Supports remote parameter configuration, monitoring and fault diagnosis via HART/BRAIN    protocols.

2. Self-diagnosis: Multi-sensing technology can detect abnormalities such as pressure impulse pipe blockage and heat    tracing faults, and provide early risk warning.

3. Local Configuration: Supports LPS local parameter setting, enabling on-site configuration without additional    tools.

4. Alarm Output: High and low pressure alarm status output is optional, facilitating system integration and interlock  control.

Core Advantages

1. Ultra-high Precision: Measurement accuracy up to ±0.04% span, ensuring the accuracy of critical process data.

2. Long-term Stability: Only ±0.2% stability deviation over 15 years, significantly reducing calibration and   maintenance costs.

3. Fast Response: With a response time of 90ms, it can capture dynamic pressure changes in real time.

4. Safety and Reliability: Certified by Exida and TUV SIL 2/3, suitable for Safety Instrumented Systems.

5. Excellent overpressure resistance: Maximum withstand pressure reaches up to 10,800 psig (approximately 74.5 MPa)    with outstanding shock resistance.

Typical Applications

1. Petrochemical Industry: Absolute pressure monitoring and control for distillation towers, reaction kettles and    storage tanks.

2. Electric Power & Energy: Pressure measurement for boilers, steam turbines, and vacuum systems.

3. Pharmaceuticals and Food: Pressure monitoring of sterile tanks, fermenters, and vacuum packaging equipment.

4. Semiconductor Industry: High-precision pressure measurement for vacuum chambers and gas delivery systems.
