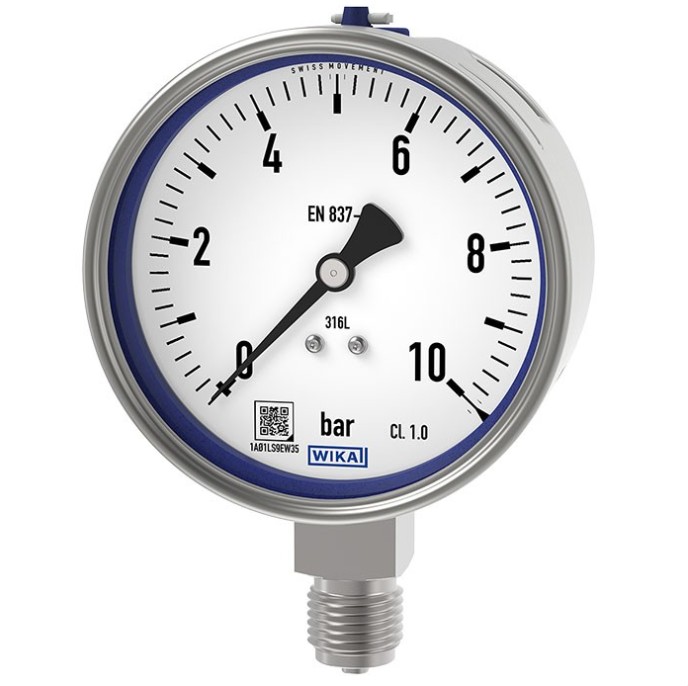

Product Description

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.The use of  high-quality stainless steel materials and the robust design are geared to applications in the chemical and process  engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive  environments.Scale ranges of 0 ... 0.6 to 0 ... 1,600 bar [0 ... 10 to 0 ... 20,000 psi] ensure the measuring ranges  required for a wide variety of applications.

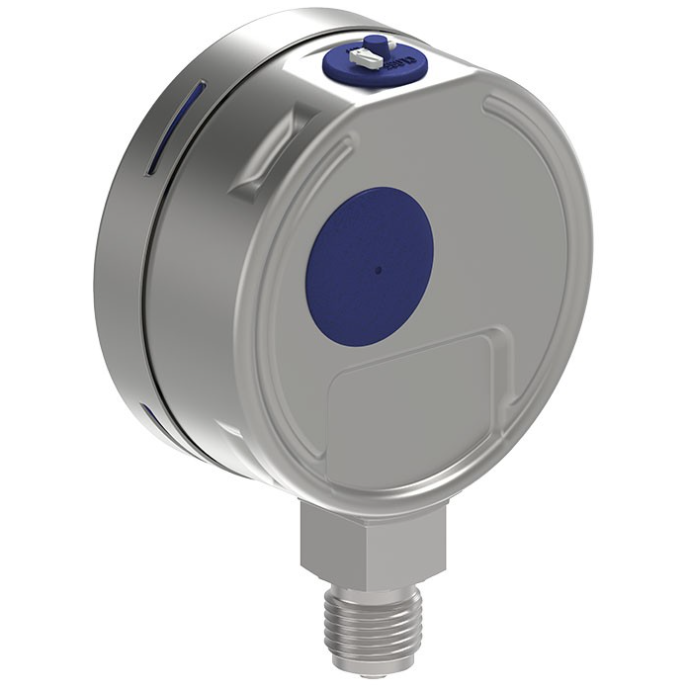

WIKA manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. As a  safety function, this instrument has a blow-out device with blow-out plug on the back of the case. In the event of a  failure, overpressure can escape there.

The model 233.50 with liquid-filled case is suitable for high dynamic pressure loads and vibrations.

The QR code on the dial allows instrument-specific information such as the serial number, the order number,  certificates and other product data to be retrieved from the internet easily and in the long term.

Special Features

• Excellent load cycle stability and shock resistance.

• With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations.

• Scale ranges from 0 ... 0.6 to 0 ... 1,600 bar or 0 ... 10 to 0 ... 20,000 psi.

• QR code on dial links to instrument-specific information.

Applications

• For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive      environments.

• Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater      technology.

• Machine building and general plant construction.
