Product Description

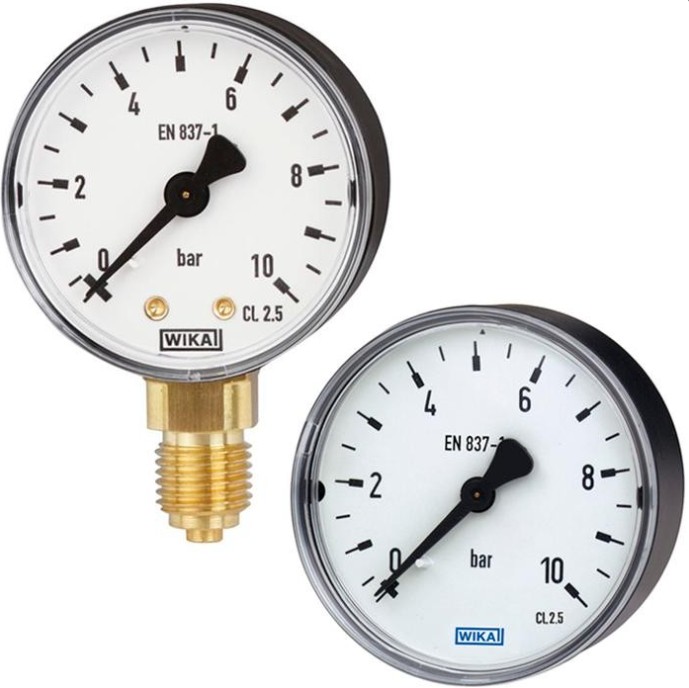

The model 111 pressure gauges are based on the proven Bourdon tube measuring system. The deflection of the Bourdon  tube is transmitted to a movement and indicated.The modular design enables a multitude of combinations of case  materials, process connections, nominal sizes and scale ranges. Due to the high variance, the instrument is suitable  for use in a wide range of applications within industry.For mounting in control panels, the pressure gauges can,  depending on the process connection, be fitted with a surface mounting flange or with a triangular profile ring and  mounting bracket.The standard version of the model 111 is manufactured, cost-optimised on modern production lines, in  volumes of several million instruments per year.

Special Features

• Reliable and cost-effective.

• Design per EN 837-1 or ASME B40.100.

• Nominal size 40 [1 ½"], 50 [2"], 63 [2 ½"], 80 [3"], 100 [4"] and 160 [6"].

• Scale ranges to 0 ... 400 bar [0 ... 6,000 psi].

Applications

• For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

• Pneumatics.

• Heating and air-conditioning technology.

• Medical engineering.
