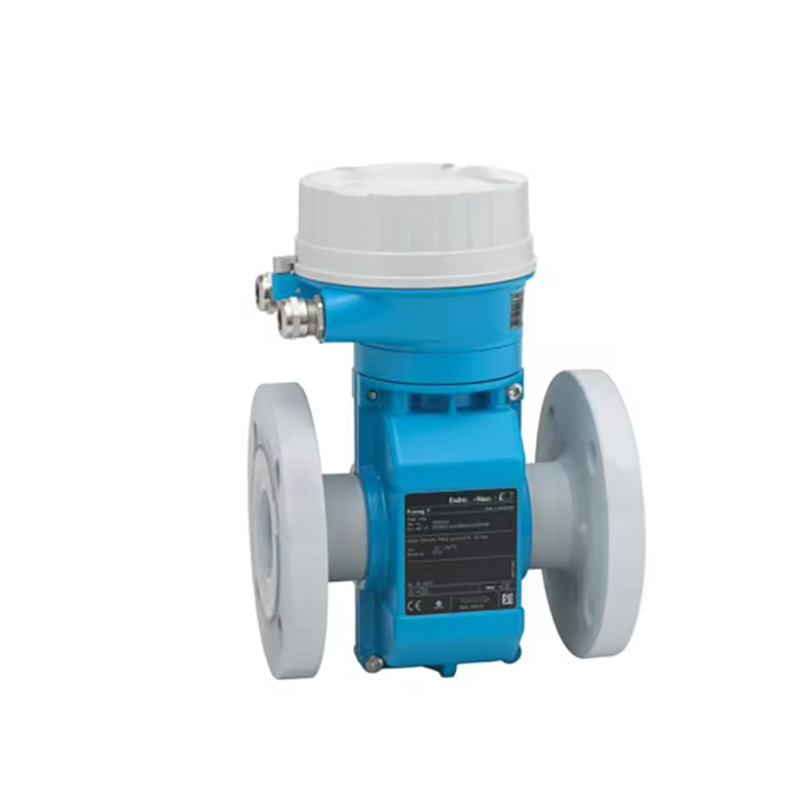

Endress+Hauser 5P1B Electromagnetic Flowmeter E+H 5P1B PFA Liner High Temperature Flowmeter

›

‹

  • Endress+Hauser 5P1B Electromagnetic Flowmeter E+H 5P1B PFA Liner High Temperature Flowmeter

›

Endress+Hauser 5P1B Electromagnetic Flowmeter E+H 5P1B PFA Liner High Temperature Flowmeter
The E+H 5P1B electromagnetic flowmeter belongs to Endress+Hauser Proline Promag P100 series. It is a reliable and cost-effective flow measuring instrument for conductive liquids in industrial processes.
Working on the electromagnetic induction principle, this flowmeter has no moving parts inside, featuring no pressure loss, stable measurement and low maintenance. It is suitable for measuring water, wastewater, chemical liquids and other conductive media.
Equipped with high-quality lining and optional electrodes, the 5P1B flowmeter resists corrosion and abrasion, adapting to various harsh working conditions. It supports standard 4-20mA and pulse signal output, easy to connect with PLC and DCS control systems.
With compact design, simple installation and easy commissioning, it is widely applied in water treatment, chemical, municipal engineering, food and beverage industries, being an economical and practical choice for industrial flow monitoring.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The Endress+Hauser 5P1B electromagnetic flowmeter is a high-reliability, cost-effective intelligent measuring device, which is an important part of the Proline Promag P100 series. Specifically designed for the accurate volumetric flow measurement of conductive liquids in various industrial scenarios, it integrates stability, practicality and operability, and is widely recognized by professional purchasers in the global industrial market.
Based on the Faraday’s Law of Electromagnetic Induction, the 5P1B flowmeter achieves non-contact, high-precision flow detection without any mechanical moving parts inside the measuring tube. This innovative design not only ensures zero pressure loss during the measurement process, reducing energy consumption of the entire pipeline system, but also effectively avoids wear, clogging and failure caused by medium scouring, greatly extending the service life of the instrument and reducing long-term maintenance costs for users.
In terms of material configuration, the 5P1B electromagnetic flowmeter is equipped with high-quality lining materials (optional PTFE, rubber, PFA) and a variety of electrode material options (stainless steel, Hastelloy, tantalum, etc.), which have excellent corrosion resistance, wear resistance and high-temperature resistance. It can stably measure various conductive media, including tap water, industrial wastewater, sewage, chemical corrosive liquids, pulp, slurry, food-grade liquids and other conductive fluids, and can adapt to harsh working conditions such as high temperature, high pressure, strong corrosion and high viscosity.
In terms of performance and operability, the 5P1B flowmeter has high measurement accuracy (up to ±0.5% of the measured value) and a wide measuring range, which can meet the flow measurement needs of different industrial processes. It supports multiple standard signal output modes, including 4-20mA analog output, pulse output and digital communication (optional HART, Modbus), which can be seamlessly connected with PLC, DCS and other industrial control systems, realizing real-time monitoring, data transmission and remote control of flow parameters.
With a compact integrated structure, the 5P1B flowmeter is easy to install and commission, whether it is flange connection or other installation methods, it can be quickly adapted to the on-site pipeline layout. The instrument has strong anti-interference ability, can resist the interference of external electromagnetic fields and pipeline vibrations, and ensure stable and reliable operation in complex industrial environments.
Widely used in water supply and drainage, municipal engineering, chemical industry, petrochemical, food and beverage, pharmaceutical, papermaking, environmental protection and other industrial fields, the E+H 5P1B electromagnetic flowmeter provides an economical and practical flow measurement solution for industrial process control and monitoring, helping users improve production efficiency, reduce energy consumption and ensure product quality.
