Product Description

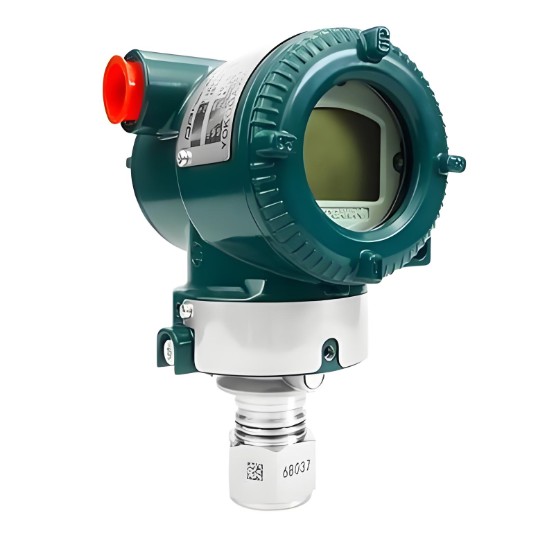

The  EJX530A  high-performance pressure transmitter adopts single-crystal silicon resonant sensor technology and is suitable for  measuring the pressure of liquids, gases or steam. The  EJX530A  converts pressure into a 4～20mA DC current signal output and features fast response, remote configuration,  self-diagnosis and other functions.

Main Functions

1. DPharp Digital Sensing: Outputs digital signals directly, reduces errors from digital-to-analog conversion, and  delivers more stable measurements.

2. Remote Operation & Maintenance: Realize remote configuration, monitoring and diagnosis via HART/BRAIN to   reduce on-site workload.

3. Local Configuration (LPS): Complete parameter settings via buttons without a handheld communicator, enabling   efficient on-site commissioning.

4. Advanced Self-Diagnosis: Detects abnormalities such as pressure impulse pipe blockage and heat tracing faults to    provide early risk warning.

5. 10-segment signal curve: capable of nonlinear compensation and suitable for complex applications such as tank and   flow measurement.

Core Advantages

1. Ultra-high Accuracy: Measurement accuracy reaches ±0.04% of span, ensuring precise process control.

2. Ultra-long Stability: ±0.1% URL stability over 15 years, greatly reducing calibration and maintenance costs.

3. Fast Response: Response time of 90 ms, capturing dynamic pressure changes in real time.

4. Overpressure Resistance: Maximum withstand pressure 7200 psi (approximately 50 MPa), with impact resistance and  high reliability.

5. Multi-communication Compatibility: Supports HART 5/7, BRAIN, FF Fieldbus, and PROFIBUS PA.

6. Safety Certification: Certified by Exida and TUV SIL 2/3, compatible with Safety Instrumented Systems (SIS).

Typical Applications

1. Petrochemical Industry: Gauge pressure monitoring and control of reaction kettles, distillation towers and storage  tanks.

2. Electric Power Energy: Pressure monitoring for boilers, steam turbines and compressor units.

3. Metallurgical Industry: Pressure measurement for blast furnaces, heating furnaces and hydraulic systems.

4. Water treatment: Pressure monitoring of pipelines, filters and pumping stations.
