Product Description

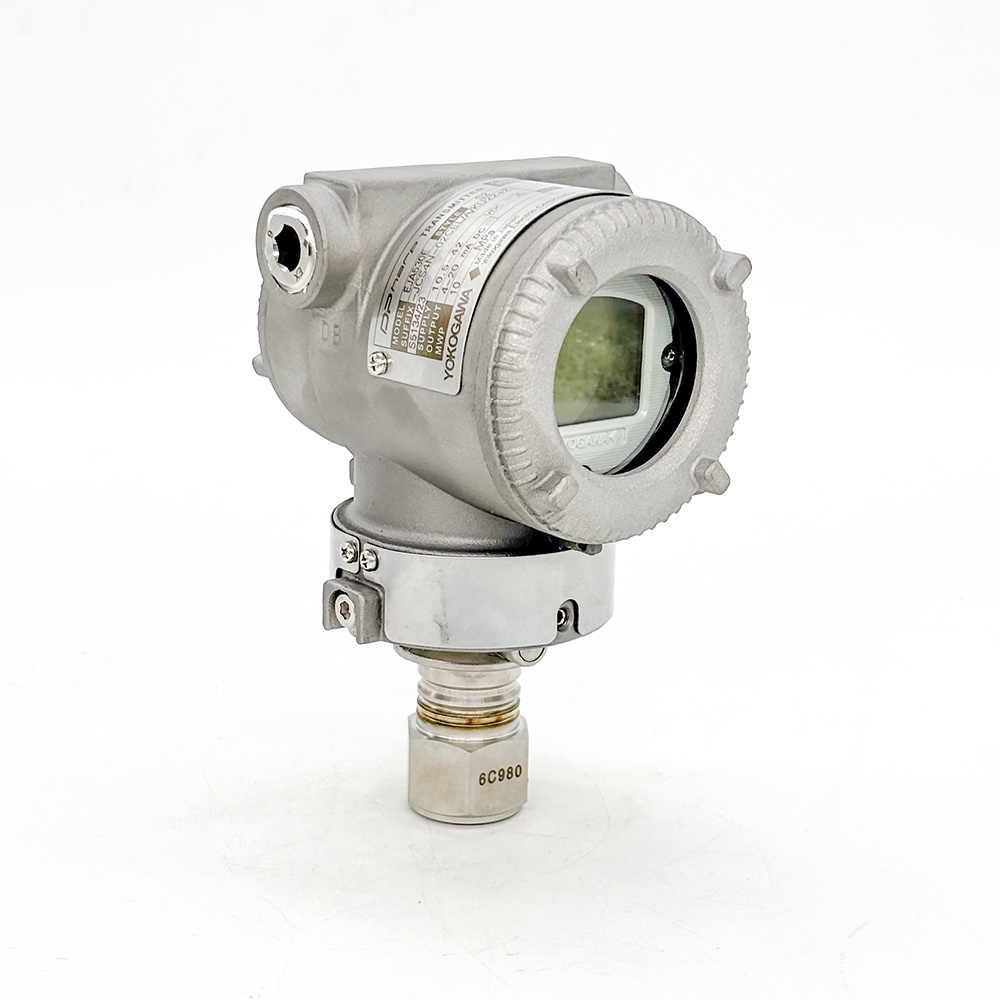

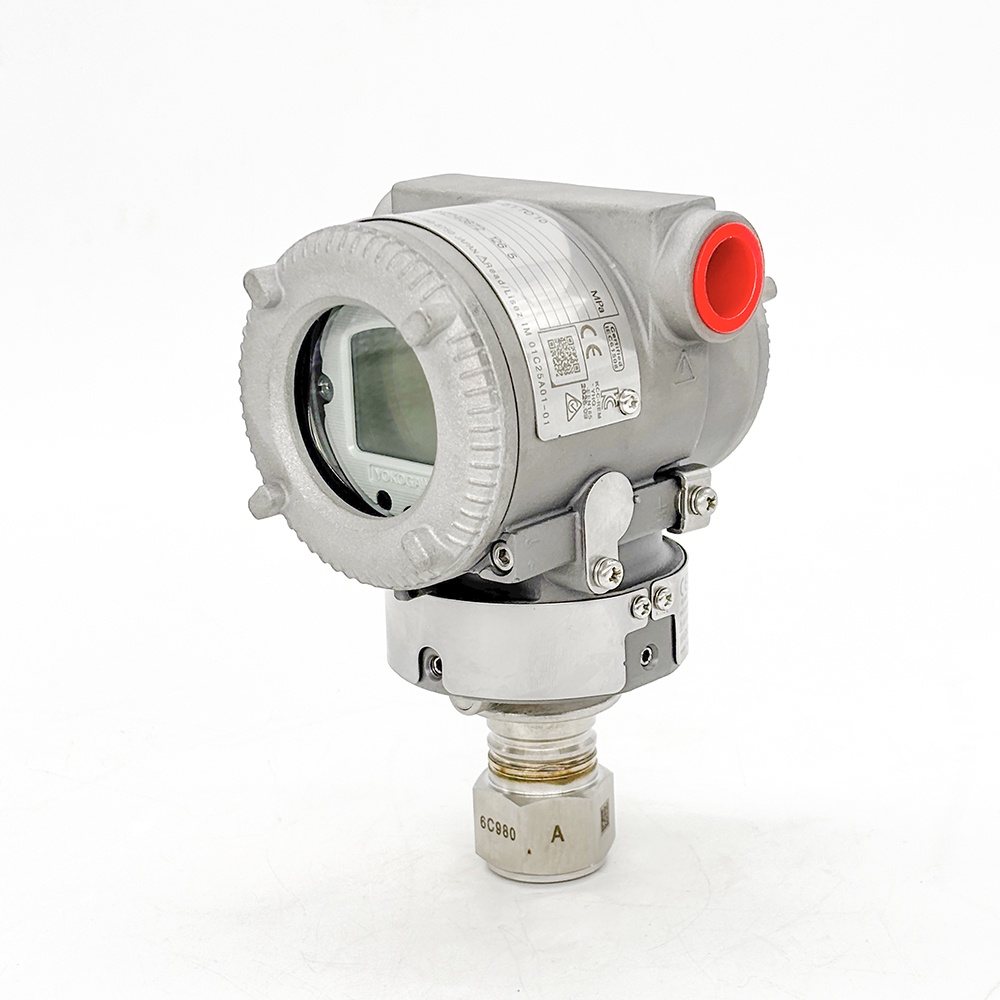

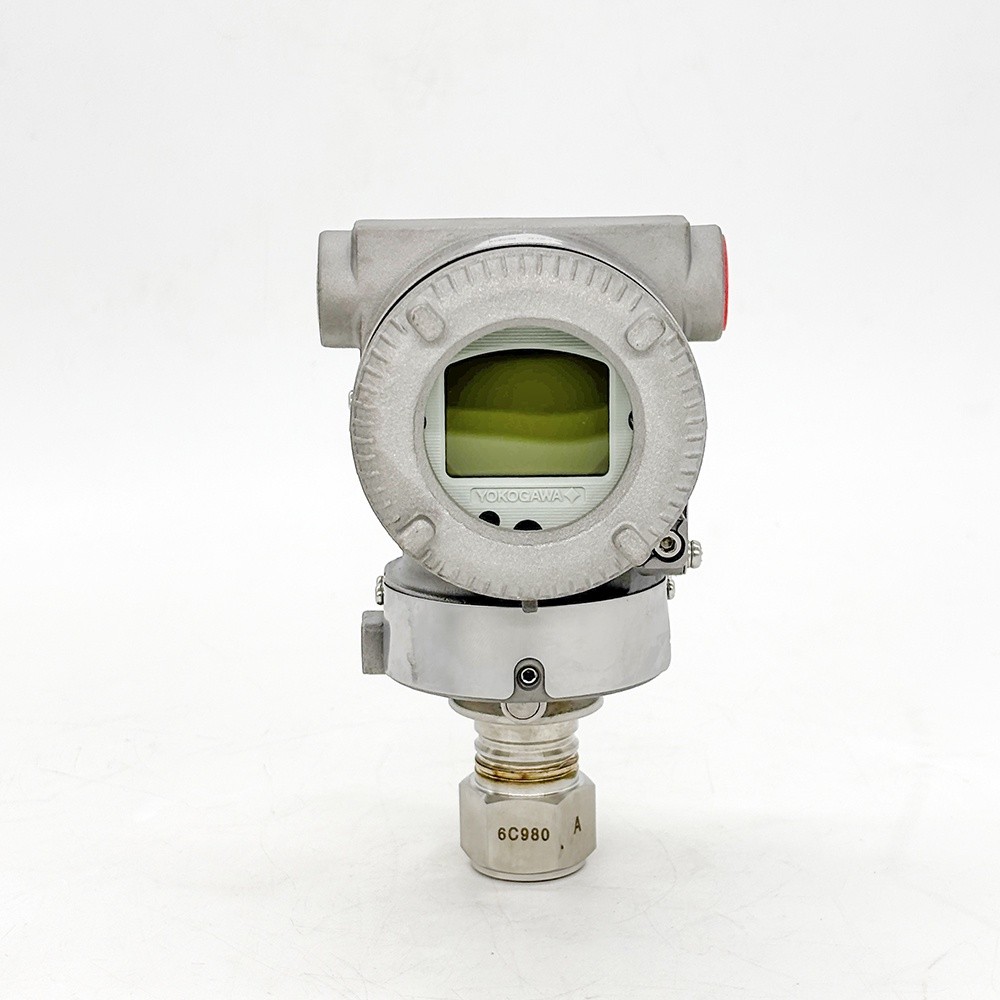

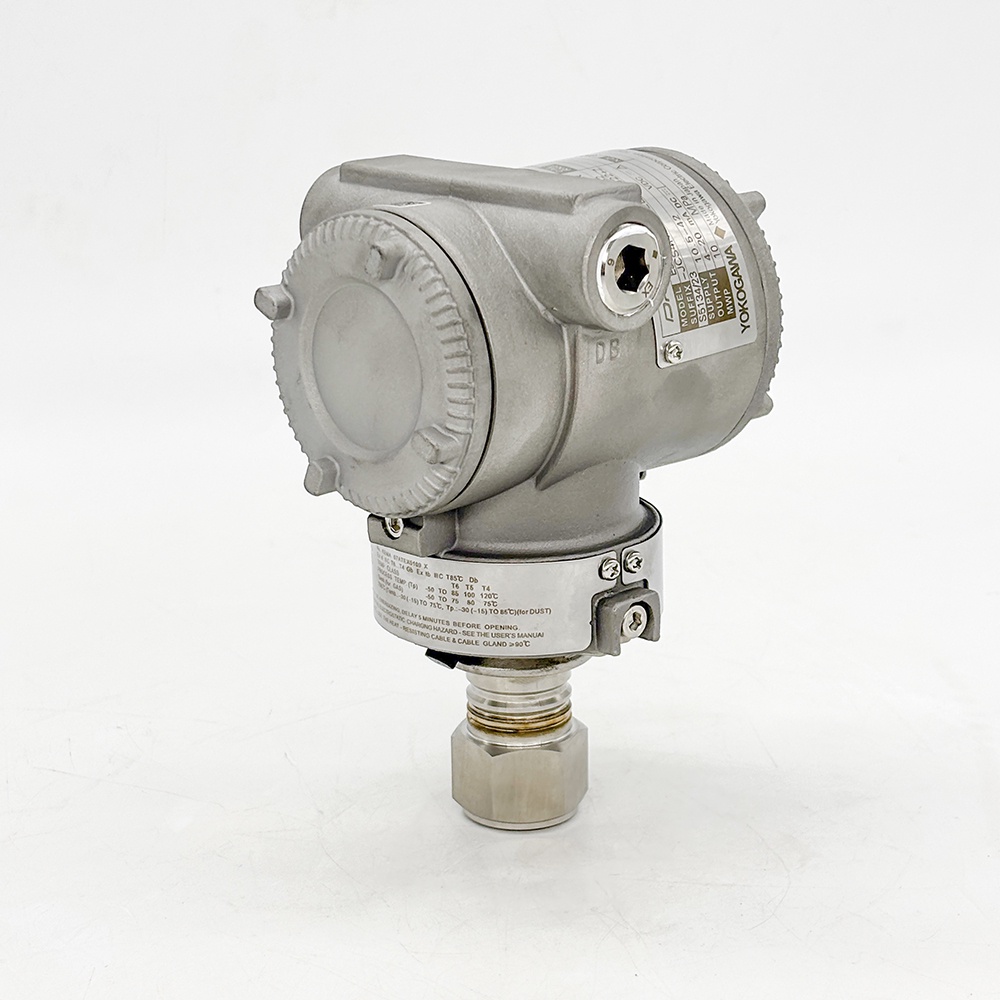

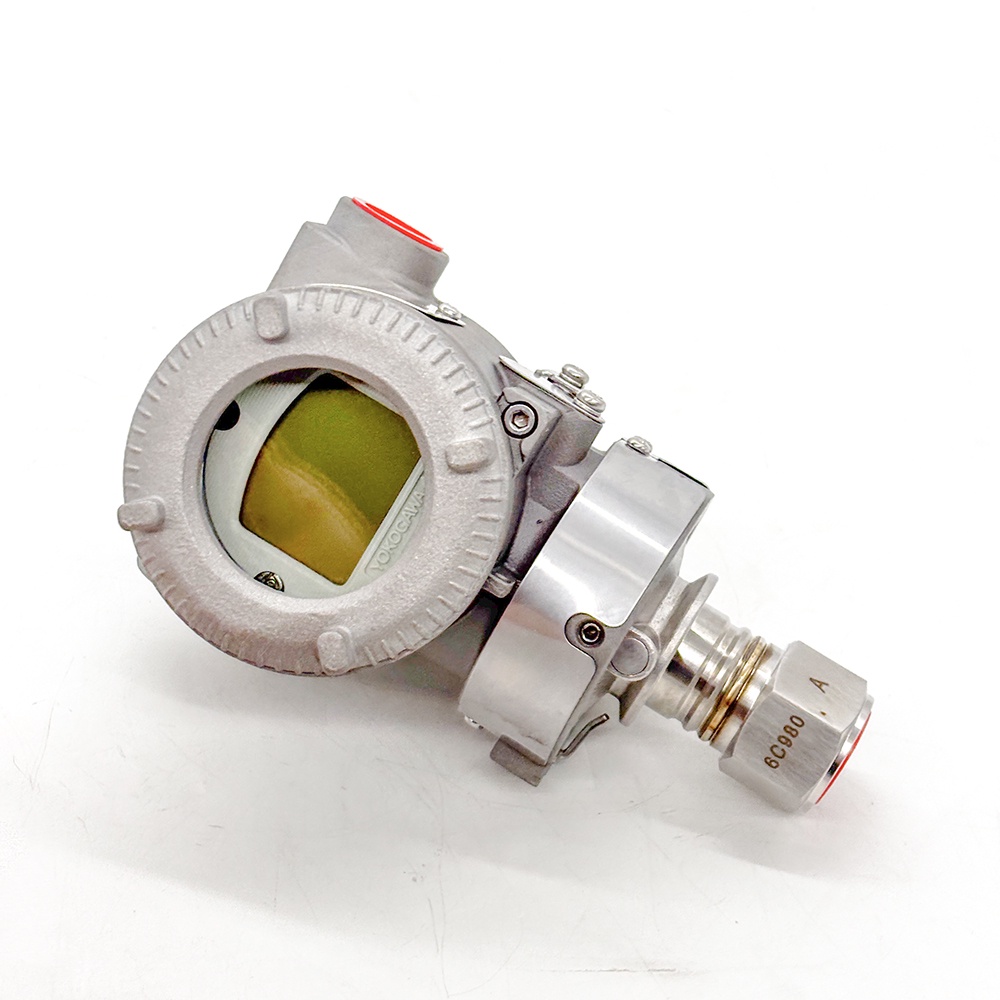

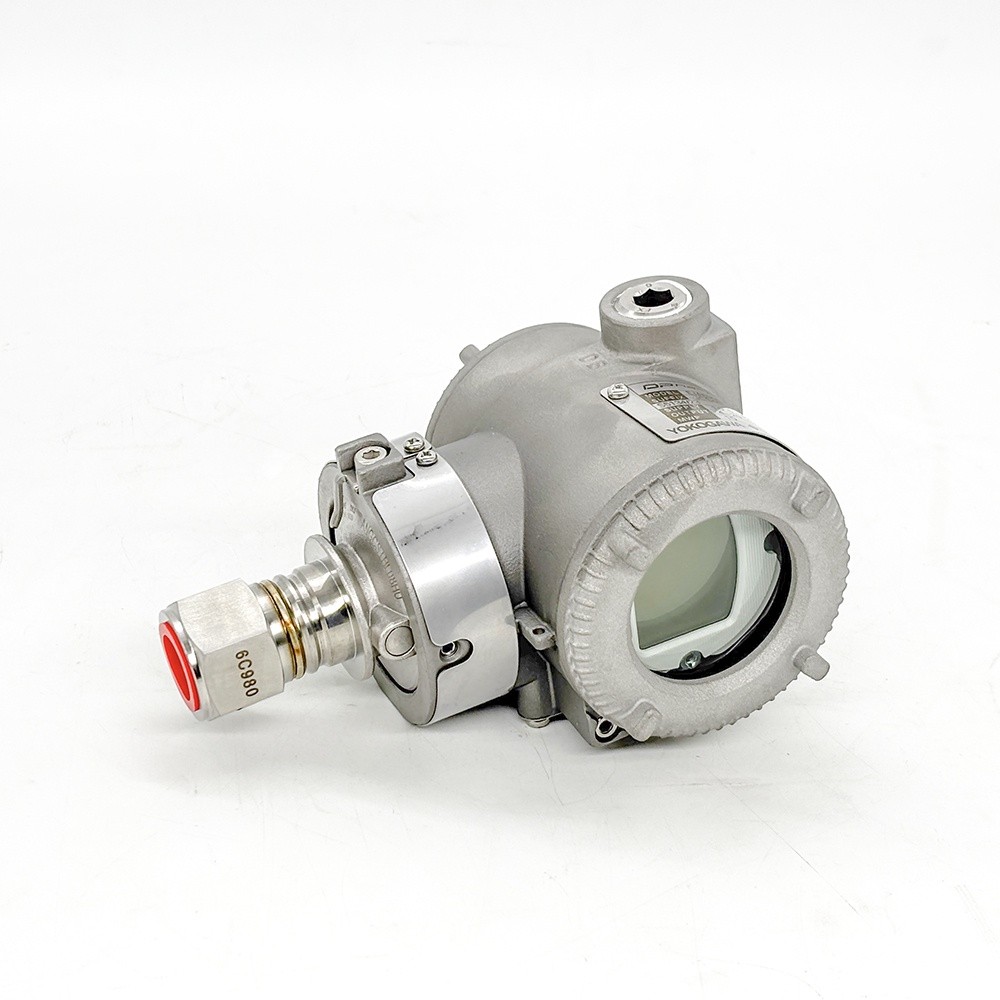

Yokogawa  EJA530E  is a high-performance online installed gauge pressure transmitter from Yokogawa Electric Corporation's EJA-E series,  which is a market leader. Based on Yokogawa Electric's revolutionary DPharp (Digital Pressure High Precision Resonant  Piezoelectric) monocrystalline silicon resonant sensor technology, it provides unparalleled accuracy, stability, and  reliability for measuring liquid, gas, and vapor pressures in different industrial processes.

Product Features

1.Ultra high measurement accuracy

The benchmark accuracy can reach ± 0.055%, and higher precision versions can be selected to meet the requirements of  precision process control.

2.Ten year long-term stability

The ten-year drift is only ± 0.1%, significantly reducing the frequency of on-site calibration, lowering maintenance  costs, and improving system reliability.

3.Fast response performance

The response time is only 90ms, which can accurately capture rapidly changing working pressure and ensure real-time  control

4.Advanced digital sensing technology

Adopting a monocrystalline silicon resonant sensor, it directly outputs digital signals without A/D conversion errors,  with strong anti-interference ability and more stable measurement.

5.Enrich communication protocols

Supports mainstream protocols such as HART, BRAIN, FF fieldbus, PROFIBUS PA, etc., and can seamlessly integrate into  various DCS systems

6.Improve self diagnostic function

Built in intelligent diagnosis and reverse verification function, real-time monitoring of sensor and circuit status,  facilitating early troubleshooting.

7.Complete explosion-proof and safety certification

Meets international explosion-proof certifications such as ATEX, IECEx, FM, CSA, etc., suitable for hazardous  explosion-proof areas; Simultaneously supporting SIL2 security level, it can be used for safety instrumented systems.

8.Easy to install and use

Supports optional 4-digit LCD display, with a rotatable header for easy multi angle reading; Support local button  settings, basic configuration can be completed without the need for a handheld device.

9.Wide range and strong adaptability

The measurement range covers 10kPa to 50MPa (maximum 70MPa), which can meet various working conditions from low  pressure to high pressure.

10.Durable and sturdy structure

Fully welded sealed structure, with a protection level of IP67/NEMA4X, resistant to vibration and corrosion, suitable  for harsh industrial environments.
