Endress+Hauser 5H5B Proline Promag H500 Hygienic Electromagnetic Flowmeter

›

‹

  • Endress+Hauser 5H5B Proline Promag H500 Hygienic Electromagnetic Flowmeter
  • Endress+Hauser 5H5B Proline Promag H500 Hygienic Electromagnetic Flowmeter

›

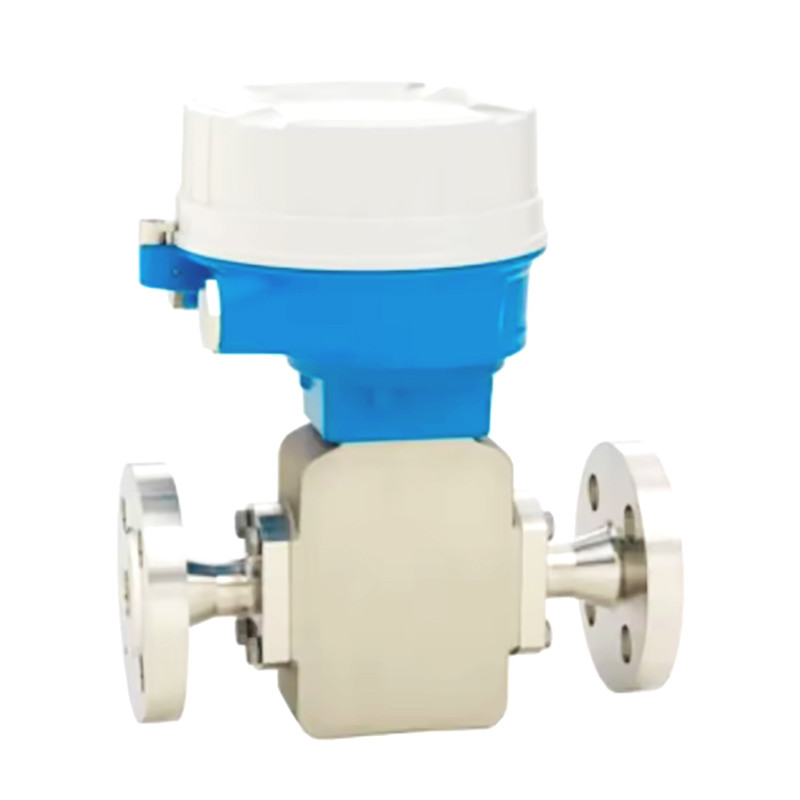

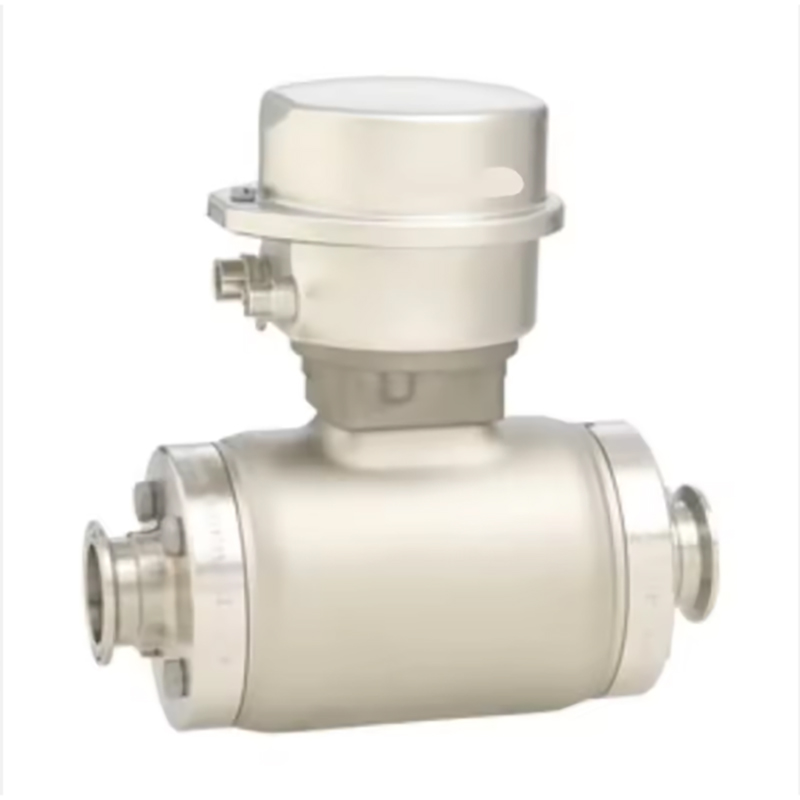

Endress+Hauser 5H5B Proline Promag H500 Hygienic Electromagnetic Flowmeter
The E+H 5H5B series electromagnetic flowmeter is a high-precision hygienic flow measuring instrument independently developed by Endress+Hauser, belonging to the classic Promag H500 product line. It is specially designed for liquid flow measurement in sanitary and high-purity industrial scenarios, featuring stable performance, reliable operation and wide application range.
This flow meter adopts advanced electromagnetic induction measurement principle, which can accurately measure the volume flow of various conductive liquids. It has no mechanical moving parts, low wear and long service life. The compact and streamlined sanitary structure fully meets food, beverage, pharmaceutical, daily chemical and other industry hygiene standards, easy to install, clean and maintain.
It supports multiple signal outputs including 4-20mA and digital communication, realizes real-time data transmission and remote monitoring. With excellent anti-interference ability.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The E+H 5H5B electromagnetic flowmeter is a high-performance, hygienic flow measurement device under the Proline Promag H500 series, independently researched and produced by Endress+Hauser (E+H), a world-renowned provider of industrial measurement and automation solutions. As a professional electromagnetic flowmeter, it is specifically designed to meet the strict requirements of hygienic and high-purity industrial fields, integrating precision, stability, and ease of use, making it an ideal choice for flow measurement in various critical production processes.
Based on the advanced electromagnetic induction principle, the 5H5B flowmeter realizes accurate measurement of the volume flow of conductive liquids without any mechanical moving parts inside. This structural design not only avoids wear and tear caused by medium scouring, greatly extending the service life of the equipment, but also eliminates the risk of medium pollution, which is particularly suitable for industries with high hygiene requirements. The measurement accuracy of the flowmeter reaches ±0.5% of the measured value (under standard conditions), with a repeatability of ±0.1%, ensuring that the flow data is true and reliable, providing strong support for production process control and product quality management.
In terms of structural design, the 5H5B electromagnetic flowmeter adopts a compact and streamlined hygienic structure, with a smooth inner wall that is easy to clean and sterilize, fully complying with the hygiene standards of food, beverage, pharmaceutical, and daily chemical industries (such as 3A, EHEDG, and FDA certifications). The meter body is made of high-quality stainless steel, which has excellent corrosion resistance and high-temperature resistance, and can adapt to the working environment with a medium temperature range of -20°C to 130°C and a working pressure of up to 16 bar, effectively coping with various harsh on-site conditions.
In terms of functional configuration, the 5H5B flowmeter is equipped with a high-performance intelligent sensor and transmitter, supporting multiple signal output modes, including 4-20mA analog signal, HART digital communication, and Profibus/Modbus bus communication. This allows the flowmeter to seamlessly connect with the on-site control system, realizing real-time transmission of flow data, remote monitoring, and parameter adjustment, greatly improving the efficiency of industrial automation management. At the same time, it has strong anti-interference ability, which can effectively resist the interference of external electromagnetic fields, voltage fluctuations, and other factors, ensuring stable operation even in complex industrial environments.
The 5H5B electromagnetic flowmeter has a wide range of medium adaptability, and can accurately measure various conductive liquids, including clean water, syrup, fruit juice, dairy products, medicinal liquids, cosmetics, and various chemical solutions (with a conductivity of not less than 5 μS/cm). It is widely used in pipeline flow detection, process flow control, and fluid metering in food and beverage production lines, pharmaceutical workshops, daily chemical factories, and other sanitary production sites.
As an original genuine product, the 5H5B flowmeter undergoes strict factory inspection and quality control, with complete specifications and reliable quality. It is easy to install and maintain, and the modular design allows for quick replacement of parts, reducing maintenance costs and downtime. Endress+Hauser also provides professional after-sales service and technical support to ensure that customers can use the product with confidence.
