Product Description

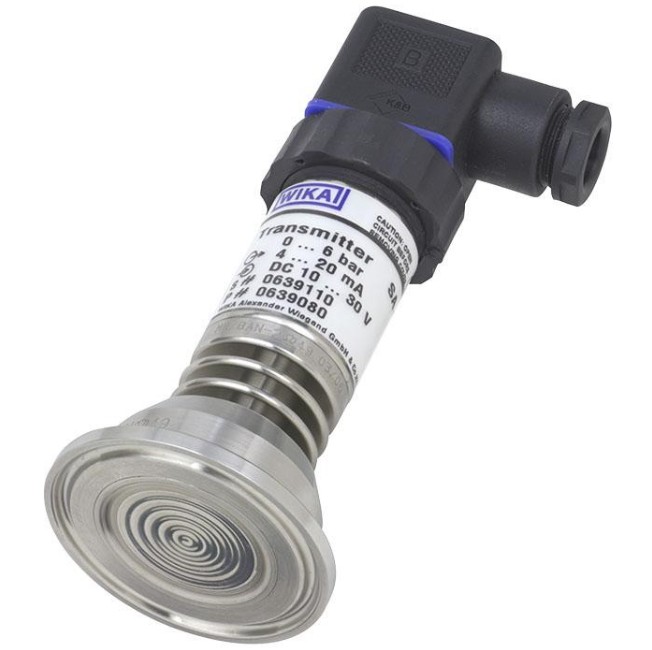

The model  SA-11  pressure sensor is designed especially for the requirements of the food and beverage, pharmaceutical and biotechnology  industries.The instrument is particularly suitable for the special conditions of CIP/SIP cleaning processes, such as  chemical stability towards cleaning liquids and high temperatures.The flush diaphragm is directly welded to the  process connection. This guarantees a crevice-free joint between the process connection and the measuring cell,  additional sealings are not required.For dead-space free instrumentation, aseptic process connections (clamp,  threaded, VARINLINE® and NEUMO®) are available.The model SA-11 conforms to the 3-A Sanitary Standard and is  EHEDG-certified.

Design

1. Flush diaphragm design made of 1.4435 (316L) stainless steel, directly welded to the process connection — no      crevices, no dead space, no extra sealsWIKA.

2. Ra < 0.38 μm surface finish for easy cleaning and zero contamination risk.

3. FDA-approved fill fluid transfers pressure hydrostatically from the diaphragm to the piezoresistive sensor.

4. All-welded, leak-tight structure ensures long-term stability in sterile processes.

Special Features

1. Wide variety of aseptic process connections, for process temperatures up to 150 °C [302 °F].

2. Diaphragm seal parts all welded.

3. Suitable for SIP and CIP.

4. Ingress protection up to IP68.

Technical Specifications

1. Measuring range: 0…250 mbar up to 0…25 bar (gauge/vacuum).

2. Output signals: 4–20 mA (2-wire), 0–20 mA, 0–10 V.

3. Power supply: 10 (14)…30 VDC.

4. Process temperature: −20°C … +150°C.

5. Media compatibility: gases, air, steam, liquids, pastes, powders, crystallizing media.

6. Process connections: Tri-Clamp®, Varivent®, Neumo®, sterile threads.
