Product Description

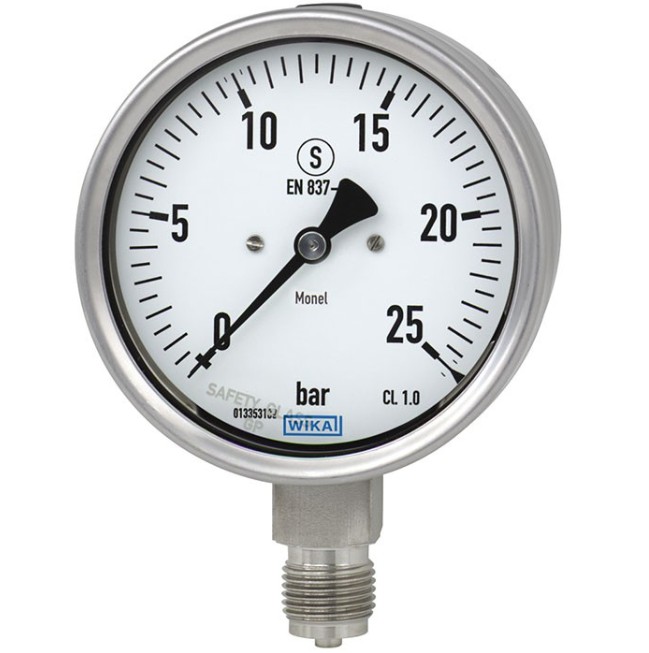

The models 262 and 263 are high-quality Bourdon tube pressure gauges with wetted parts from extremely  corrosion-resistant Monel.

The use of high-quality materials and the robust design are geared to applications in the chemical and process  engineering industries with particularly aggressive acids or bases. The instrument is suitable for liquid and gaseous  media, also in aggressive environments.Scale ranges of 0 ... 0.6 to 0 ... 1,000 bar [0 ... 10 to 0 ... 15,000 psi]  ensure the measuring ranges required for a wide variety of applications.

The safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a  blow-out back. In the event of a failure, the user is protected at the front side, as media or components can only be ejected via the rear of the case.For harsh operating conditions (e.g. vibrations), all  instruments are also available with an optional liquid filling.

Special Features

• With case filling (model 263) for applications with high dynamic pressure loads and vibrations.

• Models 262.30 and 263.30: safety version with solid baffle wall (Solidfront) designed in accordance with the    requirements of EN 837-1 and ASME B40.100.

• Suitability for particularly aggressive media, due to very high corrosion resistance.

• EMICOgauge version, to avoid fugitive emissions.

• QR code on dial links to instrument-specific information.




Applications

• For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive      environments.

• Oil and gas industry, chemical and petrochemical industries, power engineering and also water and wastewater      technology.

• Sour gas applications, also with NACE requirement.
