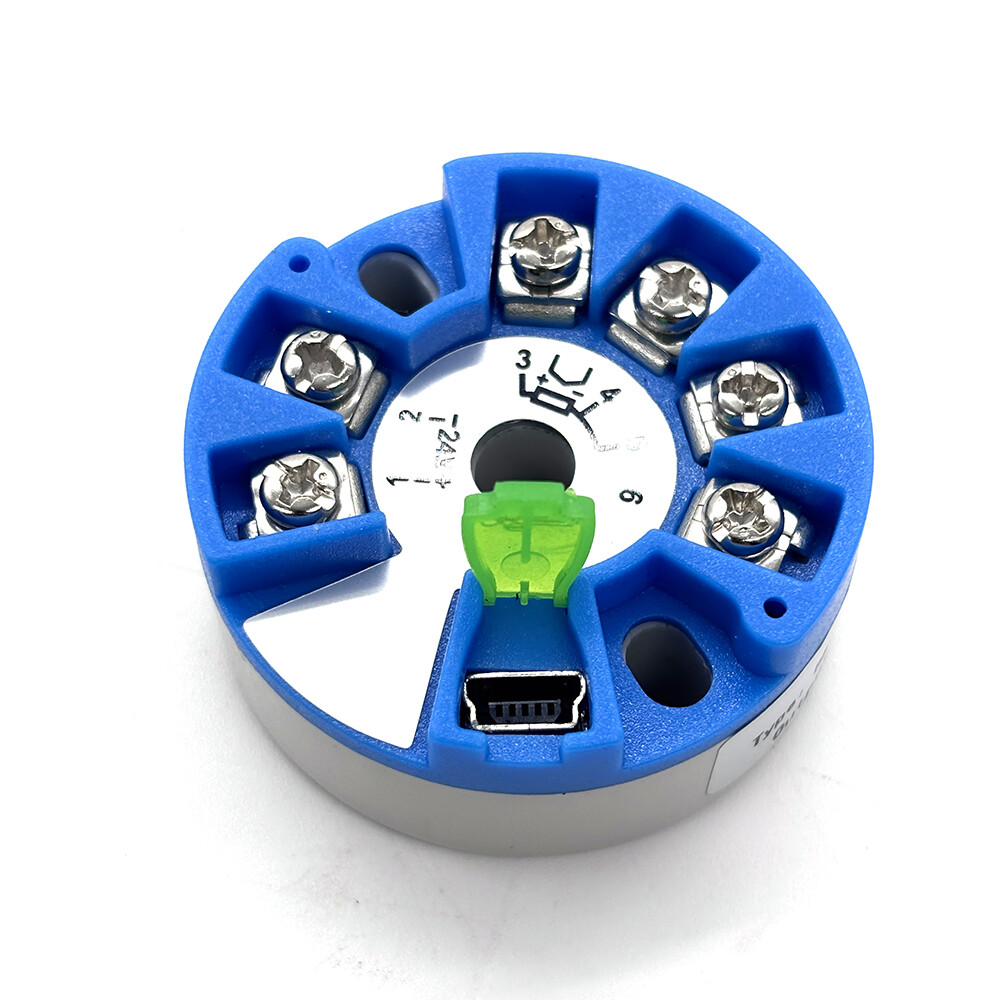

XYT-148 Intelligent Temperature Transmitter Module

Description

The Intelligent Temperature Transmitter is a high performance product, compatible with more than 10 types of thermocouple and thermal resistance signal transmission. Using 24 Σ - delta sampling chip, ensures high precision measurement; Anti-surge and anti-reverse connection design is adopted to avoid misinstallation and misoperation in engineering installation. Adopt enhanced software security design, including independent watchdog, low-voltage monitoring reset, multi-task scheduling optimization and other functions. All imported components are used to ensure long service life and stability. Can use computer or mobile phone configuration Settings, convenient and fast.

Technical Parameters

Power:12~35VDC

Output：2-WIRE 4－20mA

Precision：RTD 0.1%; TC 0.2%

Current Limit：20.8mA

Excitation：0.2mA

Sensor:RTD TC

Load：≤500Ω

Stock Temperture：-40~120 ℃

Drift：≤25ppm/℃ F.S

Shell Material：PA66

Working Temperature：-30~80℃

Mounting Screw：M4*2

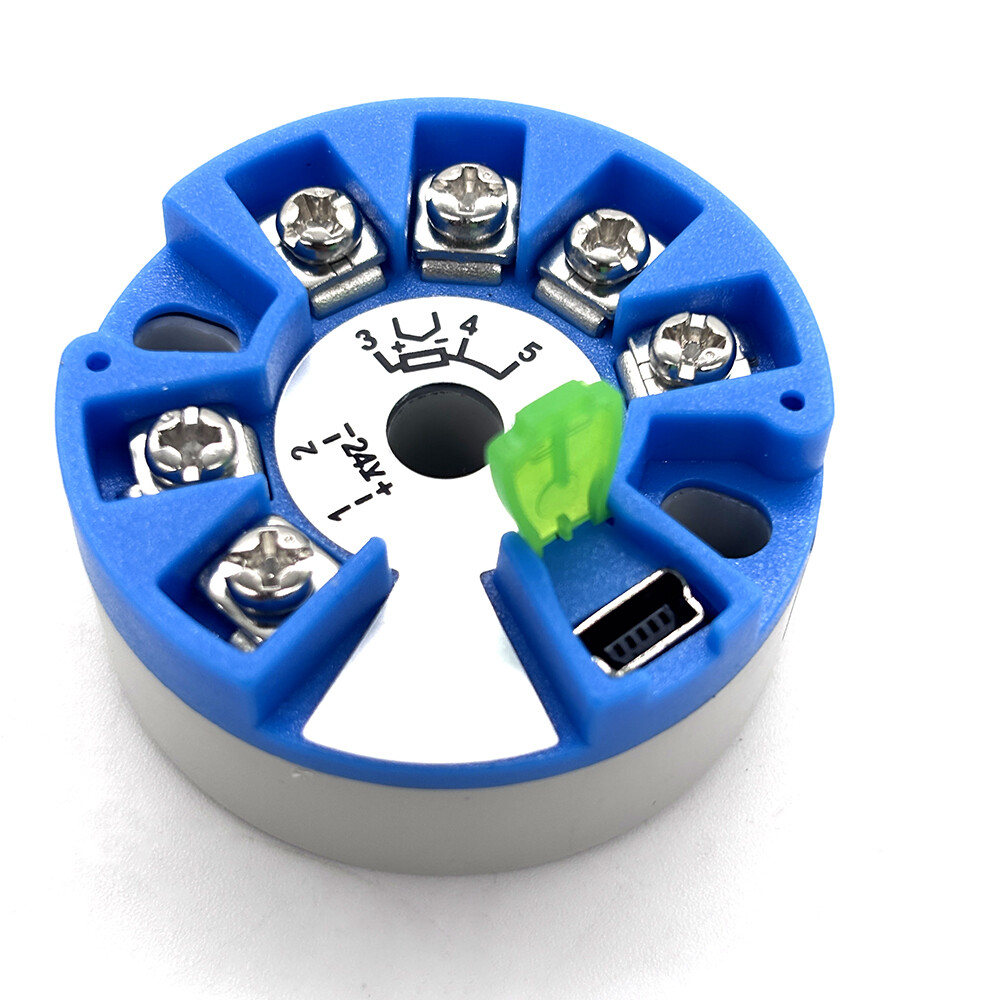

Connection mode

a)Terminal 1 and terminal 2 are 24V power supply positive and negative respectively, and the circuit board has anti-reverse connection function.

b)The thermal resistance connection supports two - wire system and three - wire system. The connection mode is as shown in the figure above. The solid wire is the lead wire of the sensor, and the dotted wire is the short wire, which requires the user to connect with the short wire by himself (the factory can also connect the short wire internally according to the customer's needs).

c)The positive pole of thermocouple is connected to the no. 3 terminal, and the negative pole is connected to the no. 4 terminal.
