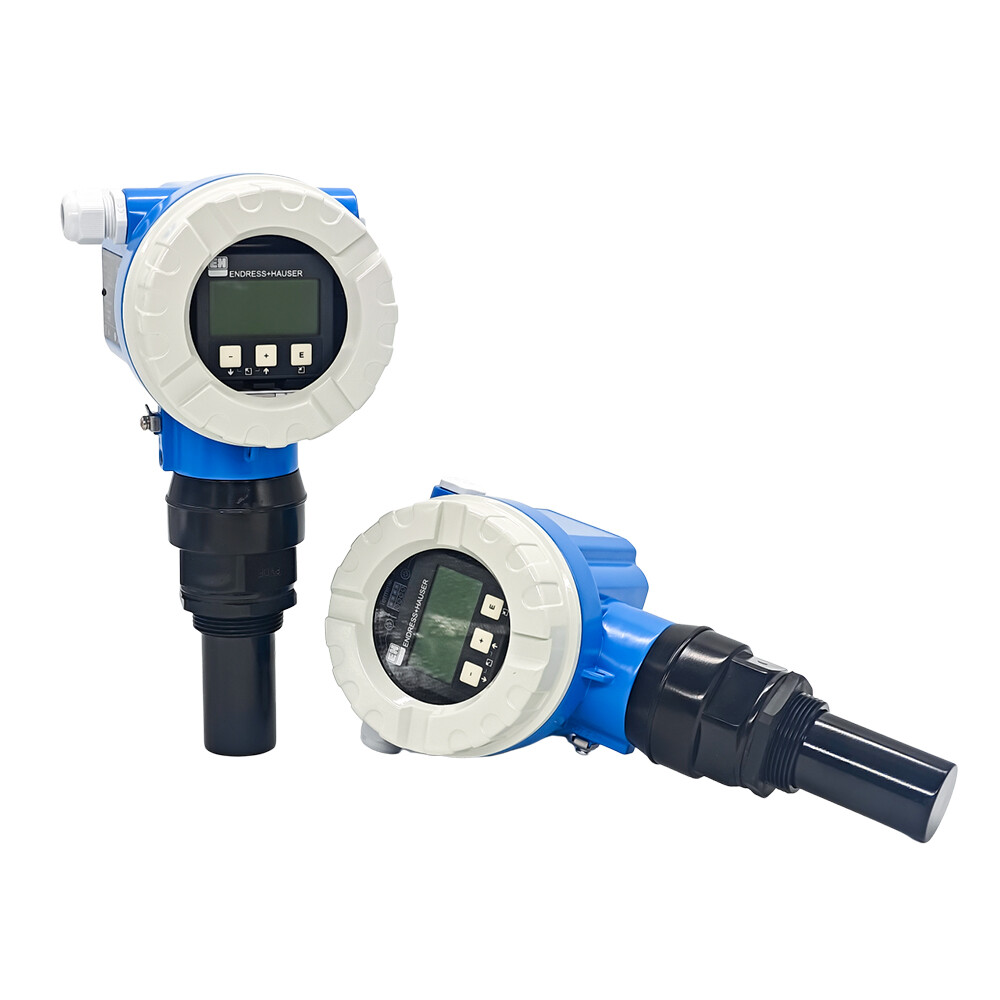

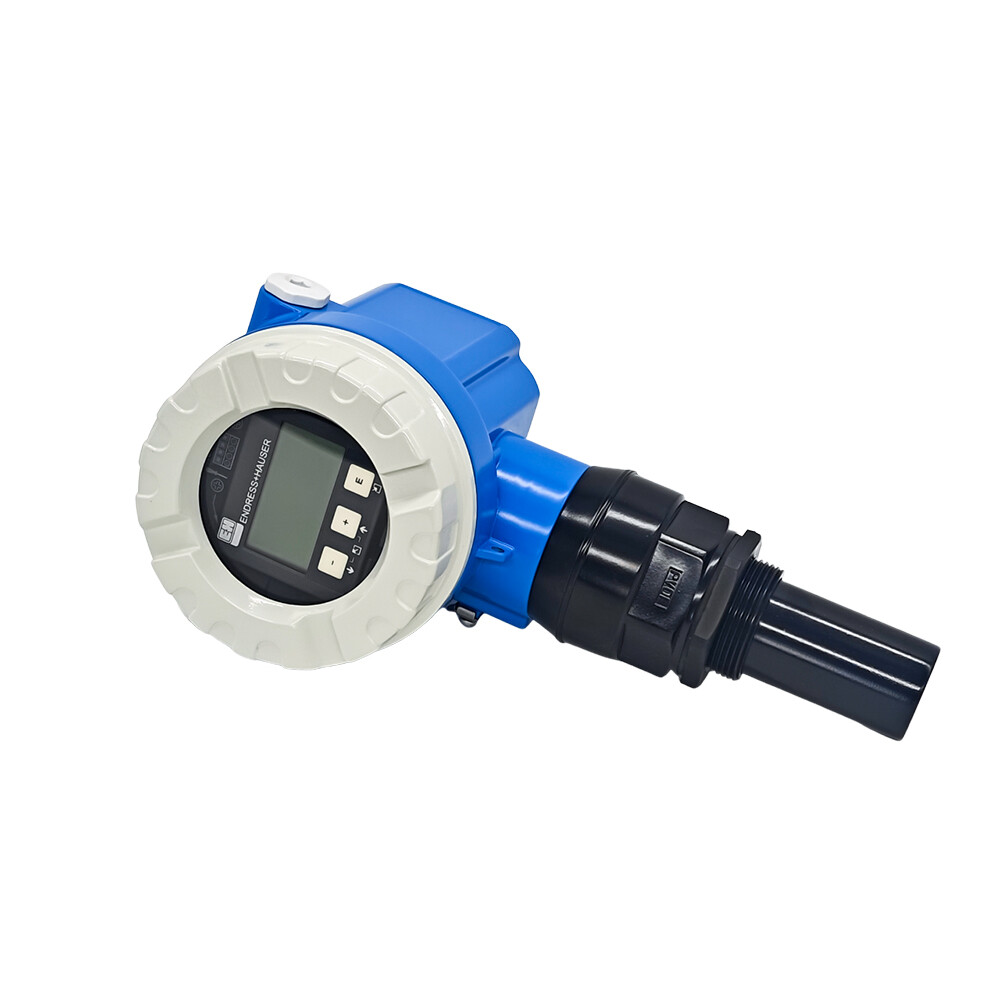

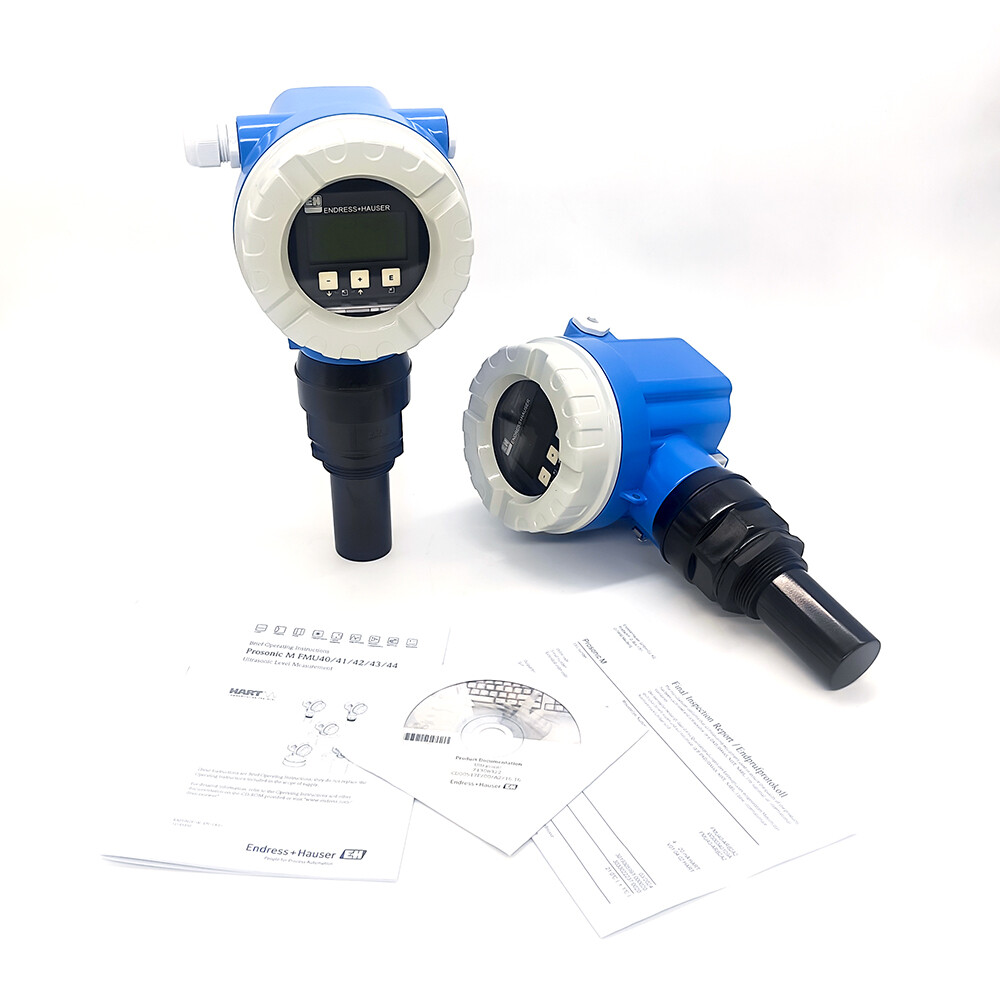

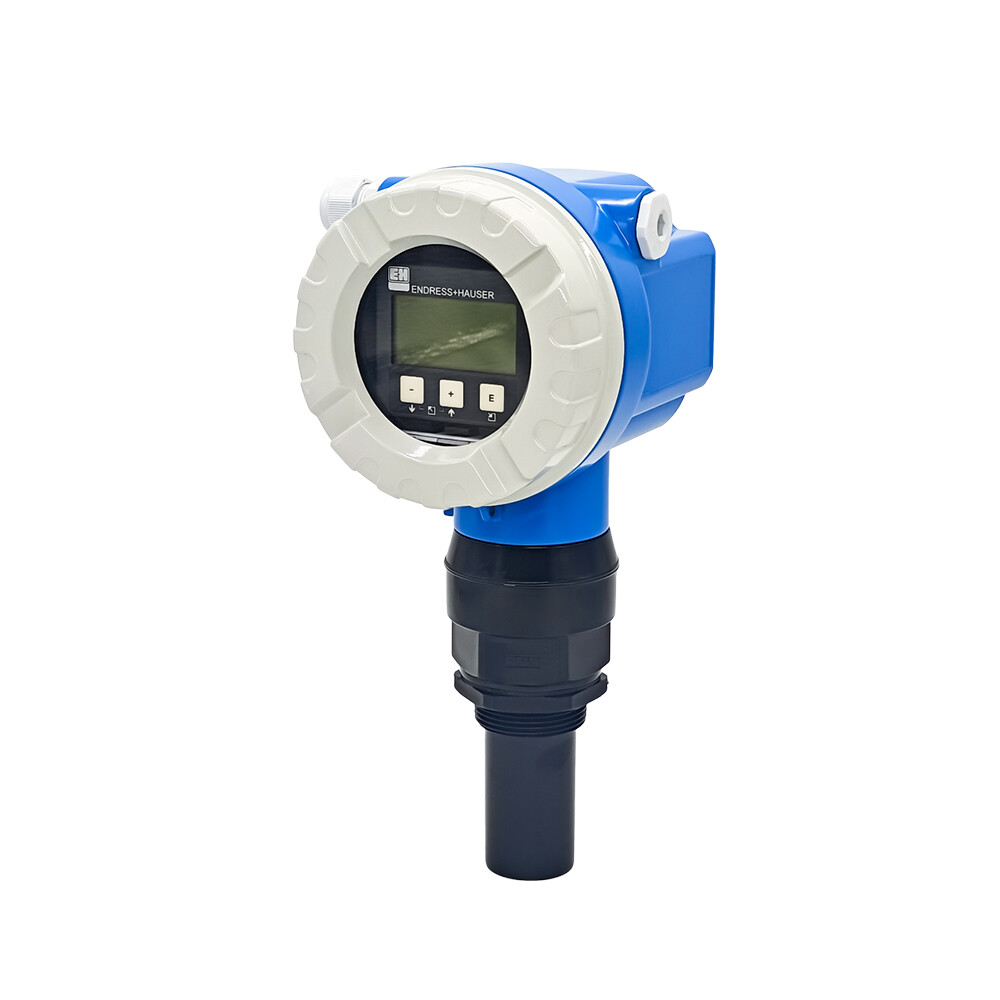

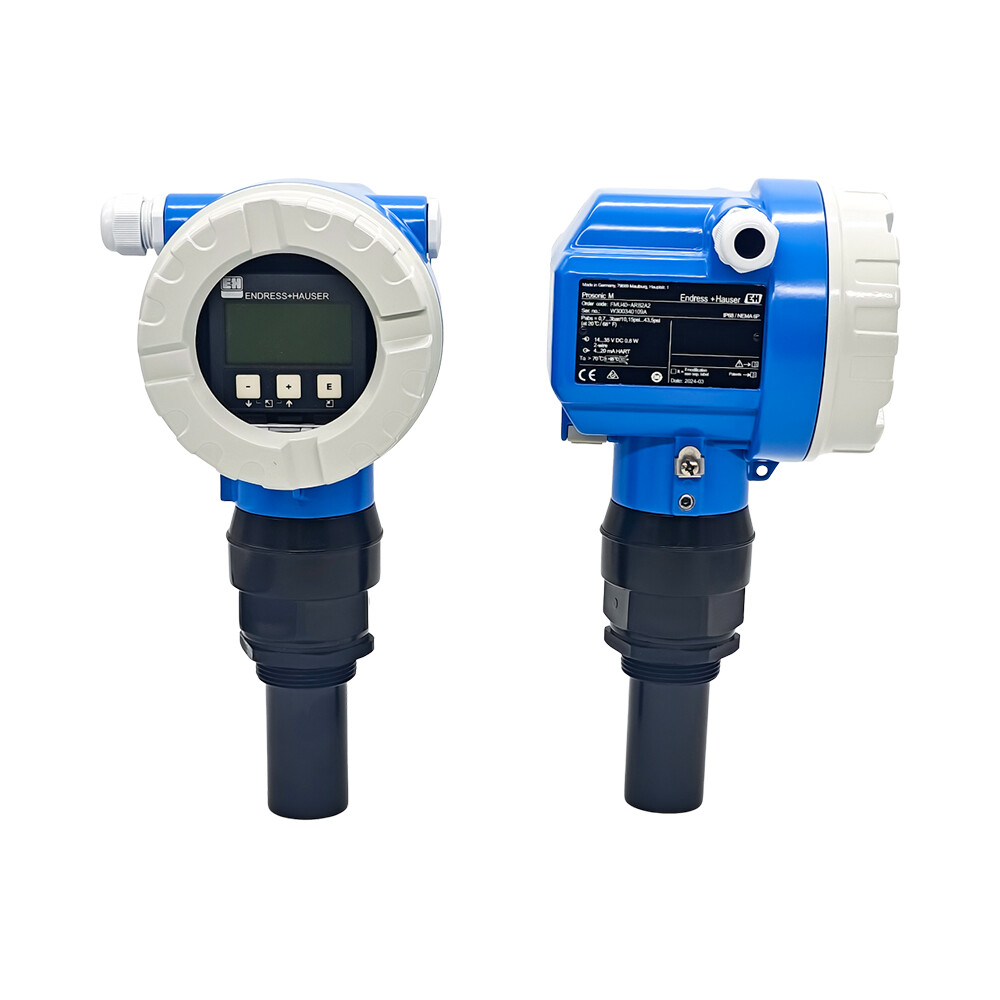

Prosonic FMU40 Ultrasonic Level Transmitter

Description

The Prosonic FMU40 Ultrasonic Level Meter Transmitter is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Advantages

1. Four-line plain text display, menu-guided on-site operation, fast and easy instrument commissioning, 7 languages available

2. On-site envelope display, complete simple instrument fault diagnosis

3. Provide FieldCare operating software, users can easily remotely operate the instrument, diagnose faults and compile measurement point files

4. Suitable for explosion-hazardous areas (gas-Ex, dust-Ex)

5. Linearization function (up to 32 points) can convert measured values into length, volume or flow in any unit

6. Built-in temperature sensor, automatically corrects the sound velocity affected by temperature

7. Optional remote display and operation (maximum installation distance from the transmitter can reach 20m (66ft))

Parameter

Product Name: E+H Ultrasonic Level Meter Transmitter

Model: FMU40-ARB2A2

Application areas

FMU40 Ultrasonic Level Meter Transmitter suitables for continuous non-contact level measurement of liquids, slurries, sludge and solid blocks; flow measurement in open channels and measuring weirs; system integration: HART (standard), 4...20mA, PROFIBUS PA, FF Foundation Fieldbus; maximum measuring range: liquid: 5m solid: 2m. Other measuring ranges: FMU41: liquid 8m, solid: 3.5m; FMU42: liquid: 10m, solid: 5m; FMU43: liquid: 15m, solid: 7m; FMU44: liquid 20m, solid: 10m
