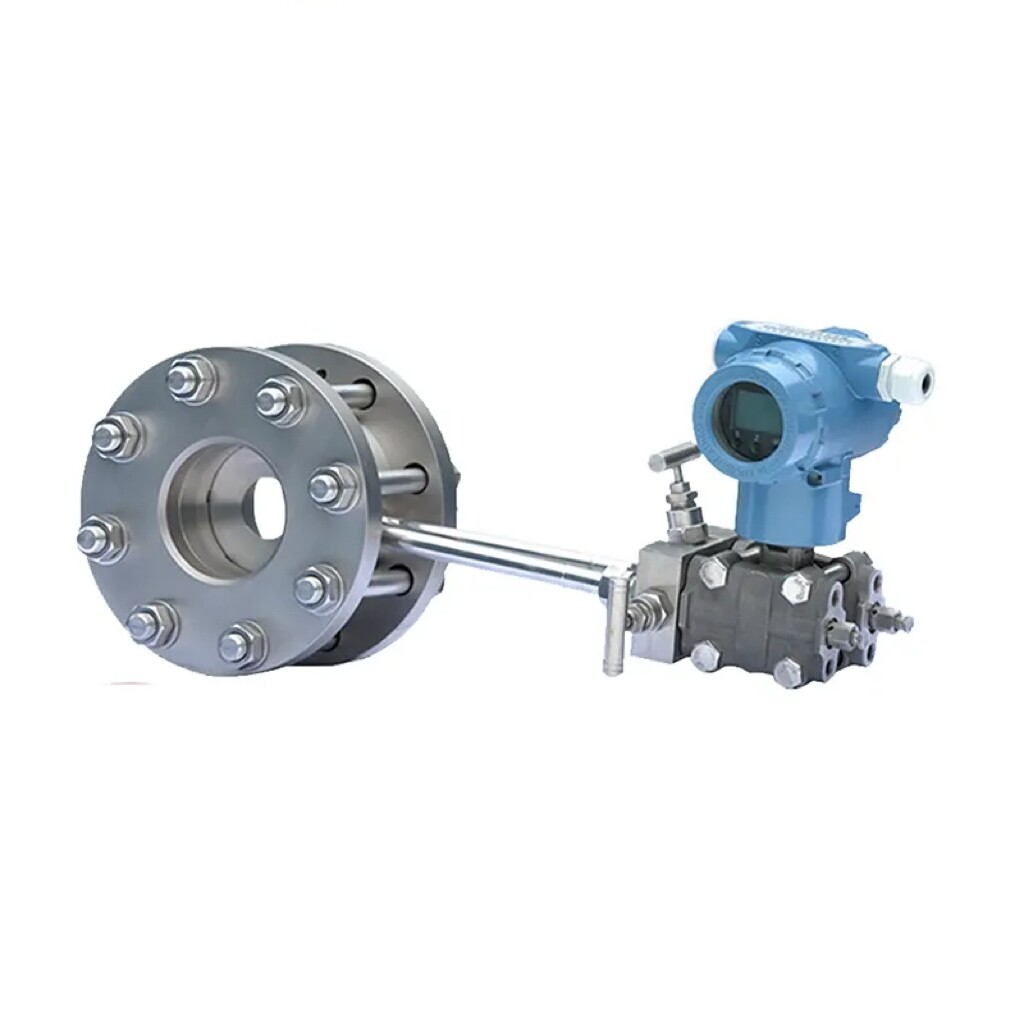

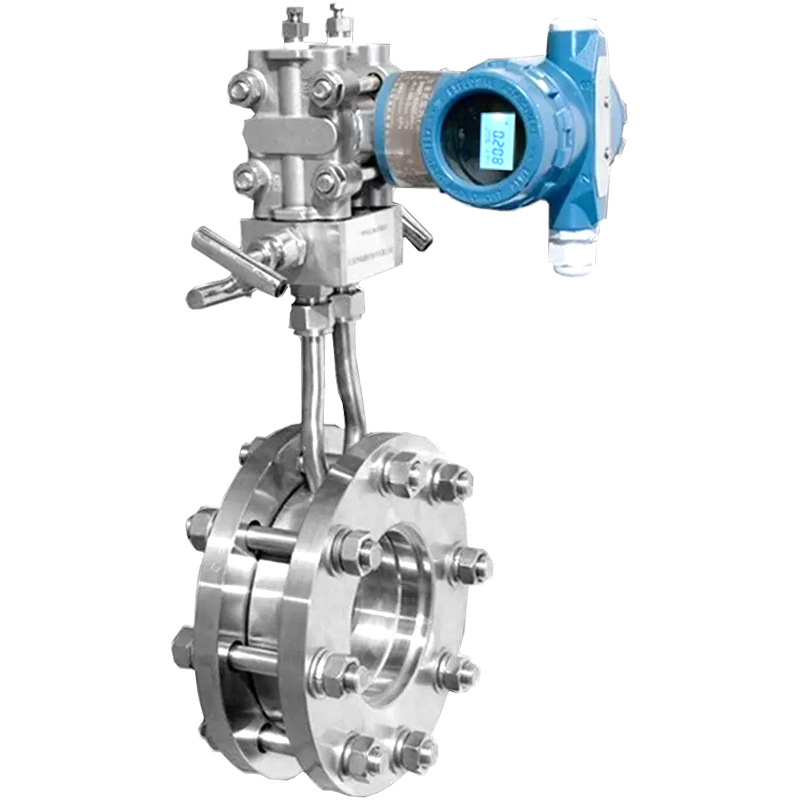

The XYOM differential pressure flowmeter is a high range ratio differential pressure flow device composed of a standard throttling element and a differential pressure transmitter. It is widely used in process control and measurement in fields such as petroleum, chemical, metallurgy, power, heating, and water supply.Differential pressure flowmeter is widely used for flow measurement of gases, vapors, and liquids.

Product Features

• The throttling device is simple, sturdy, and has stable performance. Adopting international standards and processing.

• Wide range of applications.

• No need for real flow calibration, it can be put into use.

• The integrated installation is easy.

• Adopting imported monocrystalline silicon intelligent differential pressure sensors.

• Comprehensive self diagnostic function.

• The range of the intelligent differential pressure flowmeter can be self programmed and adjusted.

• The flow integrator can simultaneously display cumulative flow, instantaneous flow, pressure, and temperature.

• In addition to online and dynamic full compensation functions, it also has self diagnosis and self setting range.

• Equipped with multiple communication

Application

1. Nominal diameter: 20mm ≤ DN ≤ 2400mm

2. Nominal pressure: PN ≤ 10MPa

3. Working temperature: -50 ℃ ≤ t ≤ 550 ℃

4. Range ratio: 1:3

5. Accuracy: Level 1.5

Working principle

As shown in the figure, is to place a throttling element in the pipeline. When fluid flows through the throttling element, a pressure difference (differential pressure P) will be generat ed on both sides of the throttling element. The flow rate is pr oportional to the square root of the differential pressure, that is:

Q v = AC/ sqr(1-β4)εd2sqr (ΔP/ρ)

=k*(ΔP）1/2 A - constant;

C - outflow coefficient;

β - diameter ratio (=d/D);

D - aperture of throttle element (mm);

ε - coefficient of expandability;

△ P - Differential pressure before and after the throttle element (Pa);

P - fluid density under working conditions (kg/m3);

K - coefficient.

Outline Structure

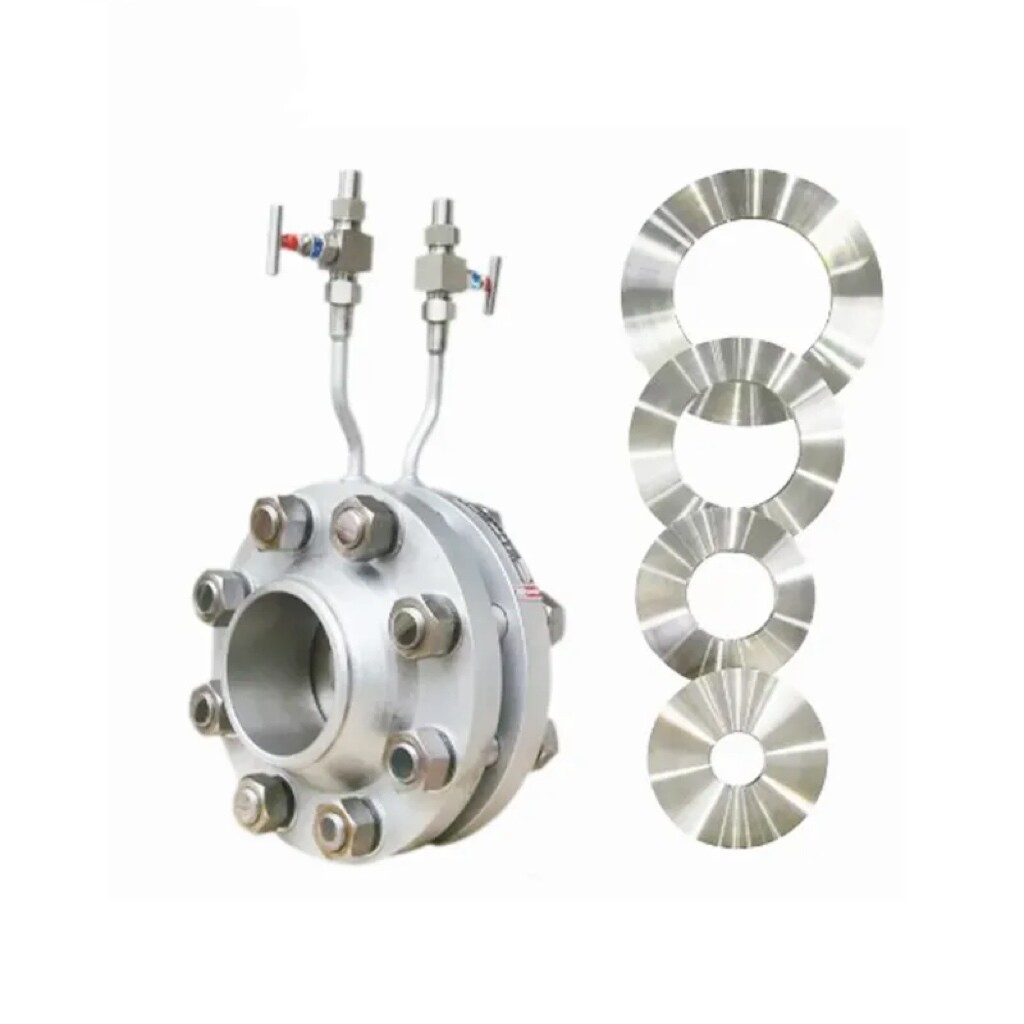

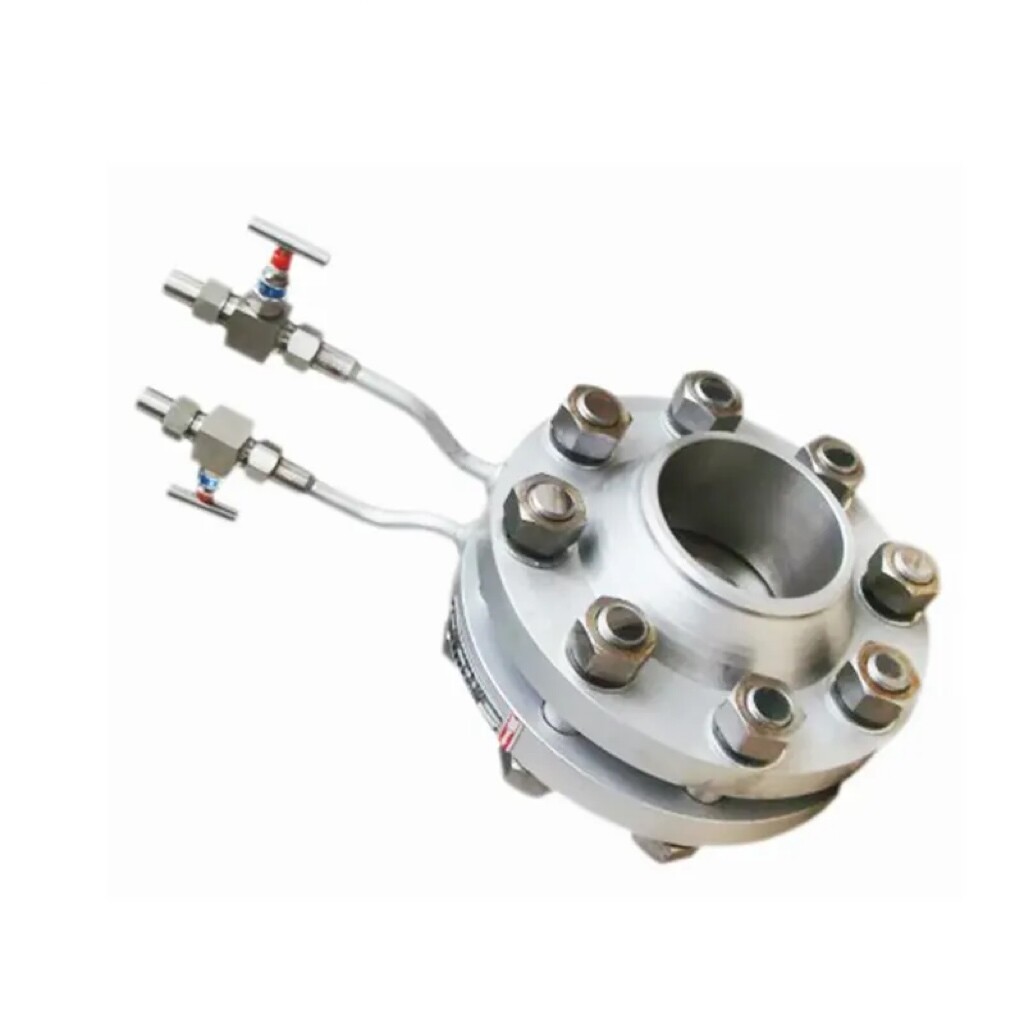

Throttling components: standard orifice plate, s tandard nozzle, long diameter nozzle, 1/4 circular o rifice plate, etc;

Pressure collection device: ring chamber, press ure collection flange, clamping ring, etc;

Connecting flanges: flanges according to natio nal standards, various standards, and other design departments; Fasteners, valves, and other accessories.
