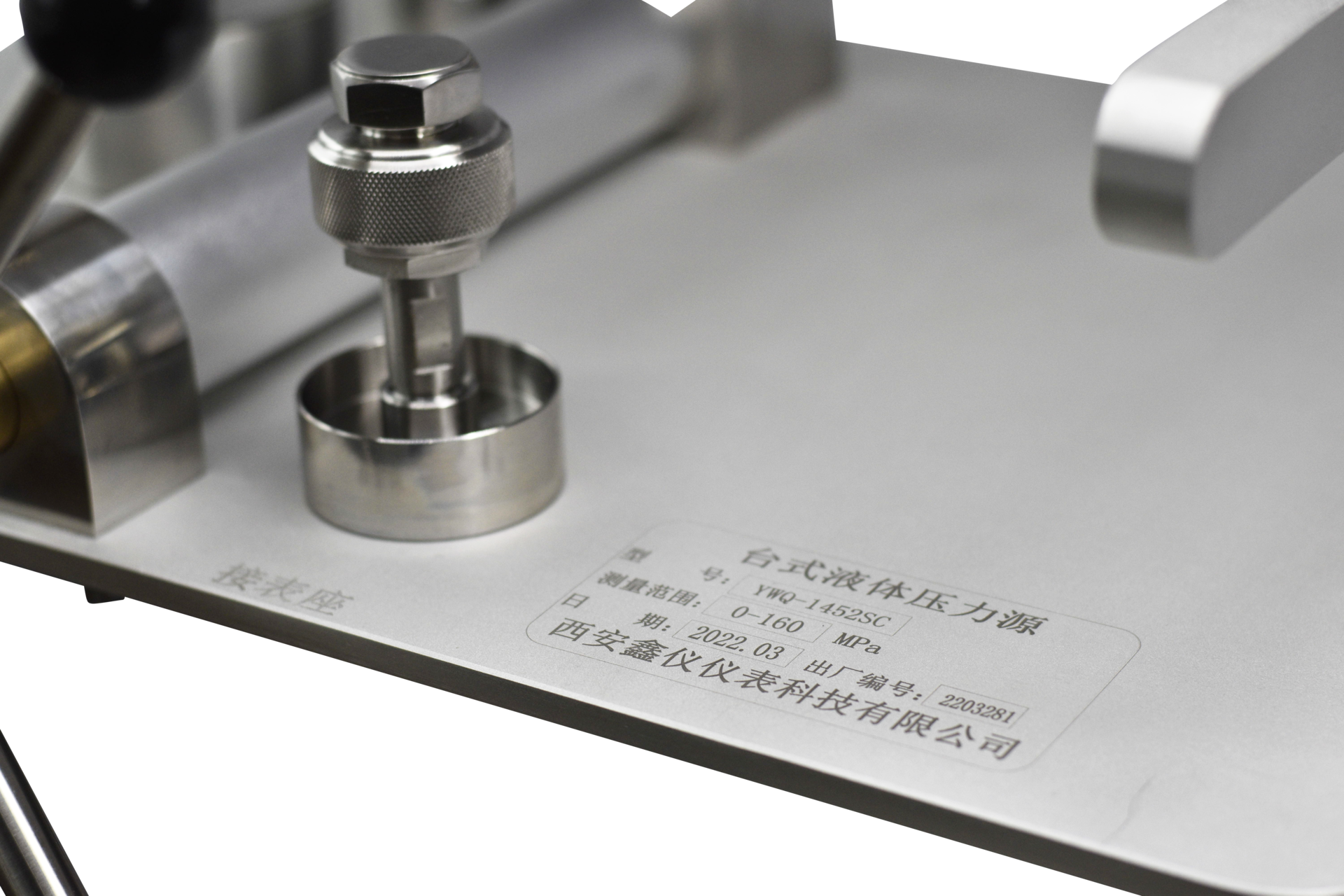

Bench Hydraulic Pressure Calibrator
YWQ-1451 manual hydraulic source is composed of a primary booster pump, a slider-type secondary booster pump, a pressure regulating system, a fine-tuning valve, a check valve and an output interface, with high sealing performance and stable boosting.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Overview

Xi'an Xinyi Instrumentation Co., Ltd. YWQ-1441 manual hydraulic source is composed of a primary booster pump, a slider-type secondary booster pump, a pressure regulating system, a fine-tuning valve, a check valve and an output interface, with high sealing performance and stable boosting , The pressing speed is fast, labor-saving and simple to operate.


Technical indicators


★Pressure range:

YWQ-1441A type (0～60)MPa

YWQ-1441B type (0～100)MPa


★Stability: better than 0.05%F.S


★Working medium: transformer oil


★Dimensions: 400mmx180mmx150mm

Pressurization method: pressure rod pressurization

Output interface: M20×1.5

Weight: 12kg

Technical indicators:

Pressure range: (0 ~ 60) MPa (expandable to 72MPa)

Stability: 0.05%F.S

Output interface: M20×1.5 (quick connector*3) can verify 2 tables at the same time

(Multiple output interfaces can be expanded)

Working medium: 25# transformer oil/purified water


Features


Food-grade stainless steel material and military sealing technology, anti-rust and anti-corrosion

Simple operation, few leakage points, easy to clean

Quick connector structure

Effortless, fast, easy to operate
