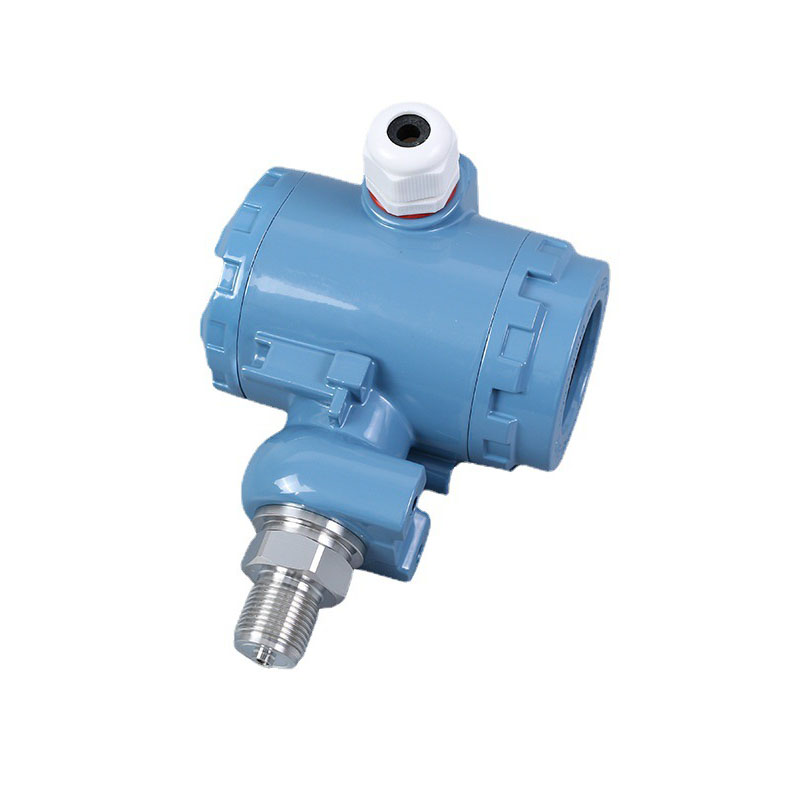

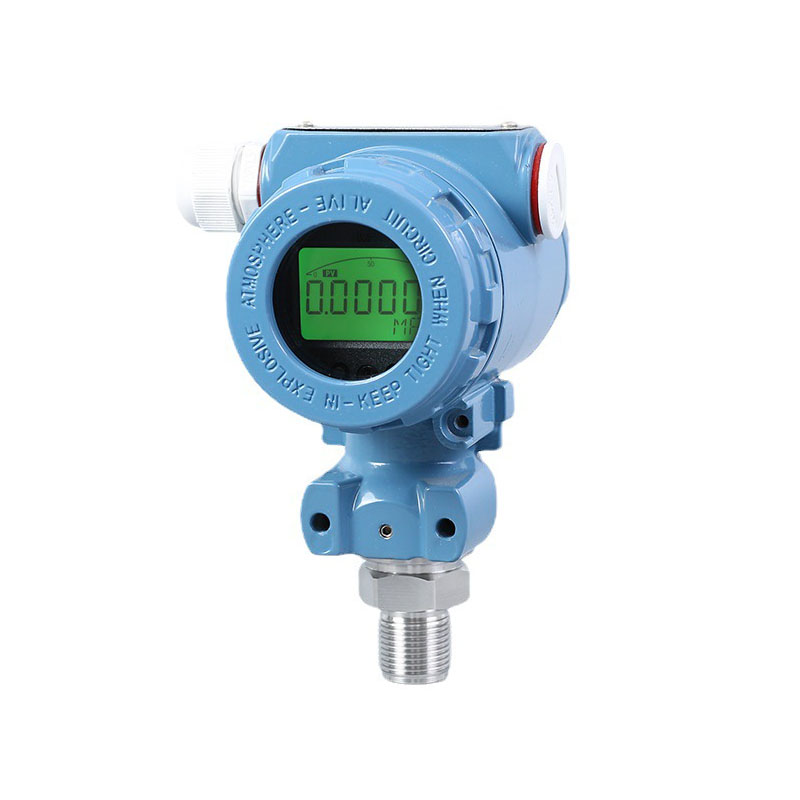

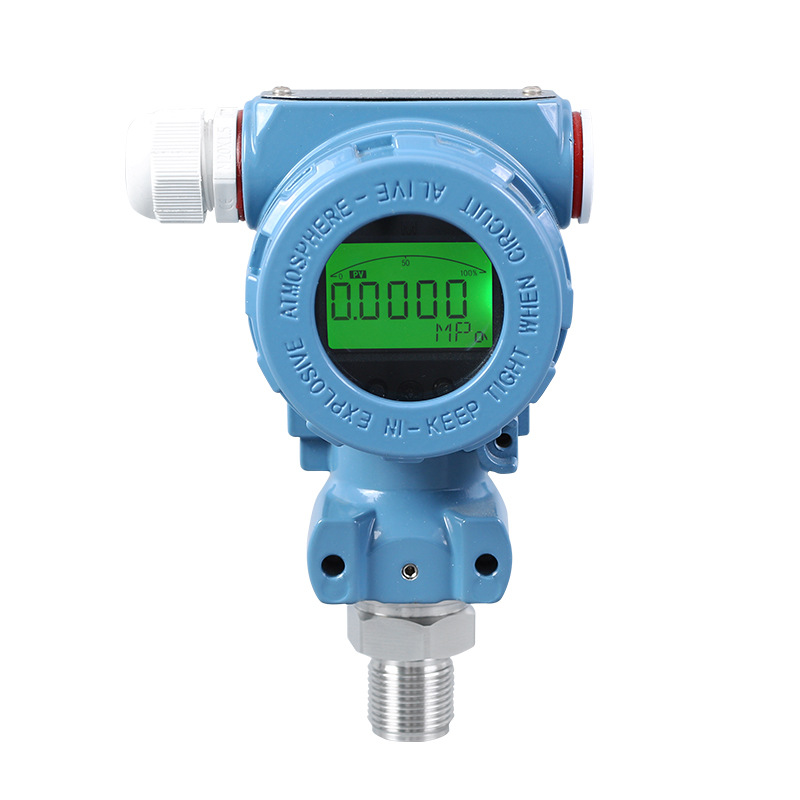

YW-140 LCD display 4-20ma Pressure transmitter

›

‹

  • YW-140 LCD display 4-20ma Pressure transmitter
  • YW-140 LCD display 4-20ma Pressure transmitter
  • YW-140 LCD display 4-20ma Pressure transmitter
  • YW-140 LCD display 4-20ma Pressure transmitter
  • YW-140 LCD display 4-20ma Pressure transmitter

›

YW-140 LCD display 4-20ma Pressure transmitter
0bar~0.1bar…1000bar
· HART Protocol
· LCD Indicator
Used For
With high accuracy, wider temperature compensation range and standard signal output, it can measure fluids pressure precisely.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Product Description

Explosion-proof pressure transmitter LCD display constant pressure transducer diffusion silicon pressure sensor 4-20mA output


Housing material: 304 all stainless steel joints High strength cast aluminum shell
Connector size: M20 × 1.5 (can be customized)
Measuring range: -0.1-0-100MPa (optional in range)
Accuracy level: 0.5, can be customized to 0.2
Core: imported diffused silicon chip
Voltage:12-24V DC
Current output: 4-20mA


Technical Parameters
Current output: 4-20mA
Pressure type: gauge pressure (default), absolute pressure, sealing pressure
Power supply: 12~24VDC (default)
Accuracy level: 0.5% FS default 0.2% FS 0.1% FS
Protection level: IP65
Response time: 2ms
Media compatible: various fluid media compatible with 316L stainless steel
Installation thread: M20x1.5 (other specifications can be customized)
Shell material: 304 stainless steel
Core: imported diffused silicon chip
Compensation temperature: -10~70°C
Working temperature: -20-80 °C
Zero temperature drift: 0.5% FS (MAX)
Sensitivity temperature drift: 0.5% FS (MAX)
Pressure overload: 2 times below 10MPa; 1.5 times above 25MPa
Mechanical vibration: 20G (20-5000HZ)
Sampling time: 2400 times per second
Long-term stability: ≤0.2%FS/year


Installation matters
(1) Choose a place that is easy to operate and maintain for installation;
(2) It should be installed as far as possible from the vibration source;
(3) It should be installed as far as possible from the heat source;
(4) Install directly on the pipeline or equipment, and clamp it to the six sides of the transmitter with the wrench.

Notes
(1) Care should be taken when handling and installing the transmitter to avoid collision and affect the performance of the circuit.
(2) There is an isolation diaphragm in the pressure inlet of the transmitter. Do not touch it with foreign objects.
(3) The external thread of the transmitter must pay attention to the seal, otherwise the pressure will not be unstable.
(4) The safety barrier shall obtain an explosion-proof certificate, and its installation shall be carried out in accordance with the requirements of its instructions.
(5) If you encounter problems during the installation and use of the product, please contact our company. If there is any abnormality in the product, please do not open it for repair. Please contact the manufacturer in time.


Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
