rod type pressure sensor

›

‹

  • rod type pressure sensor
  • rod type pressure sensor
  • rod type pressure sensor
  • rod type pressure sensor
  • rod type pressure sensor

›

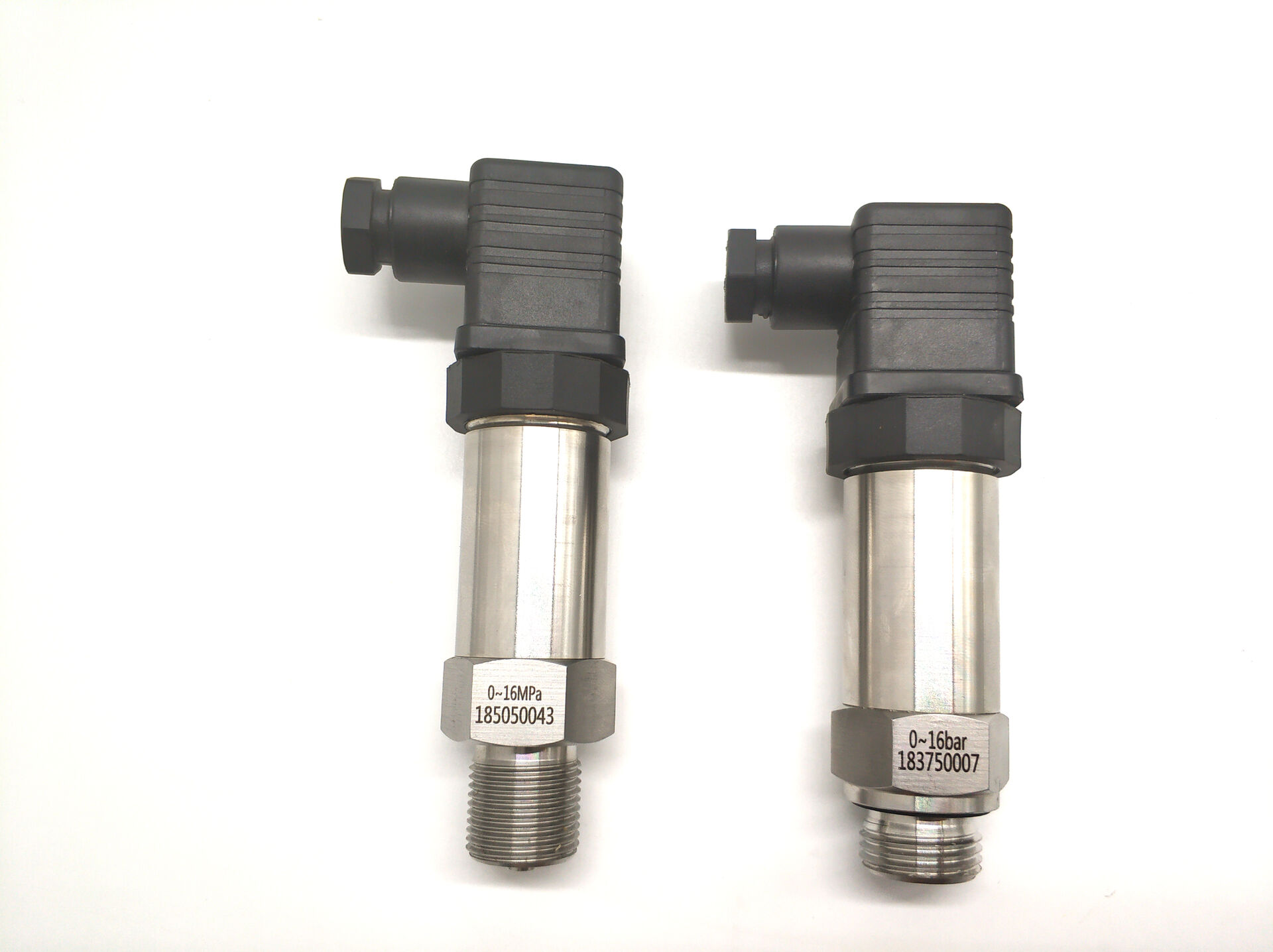

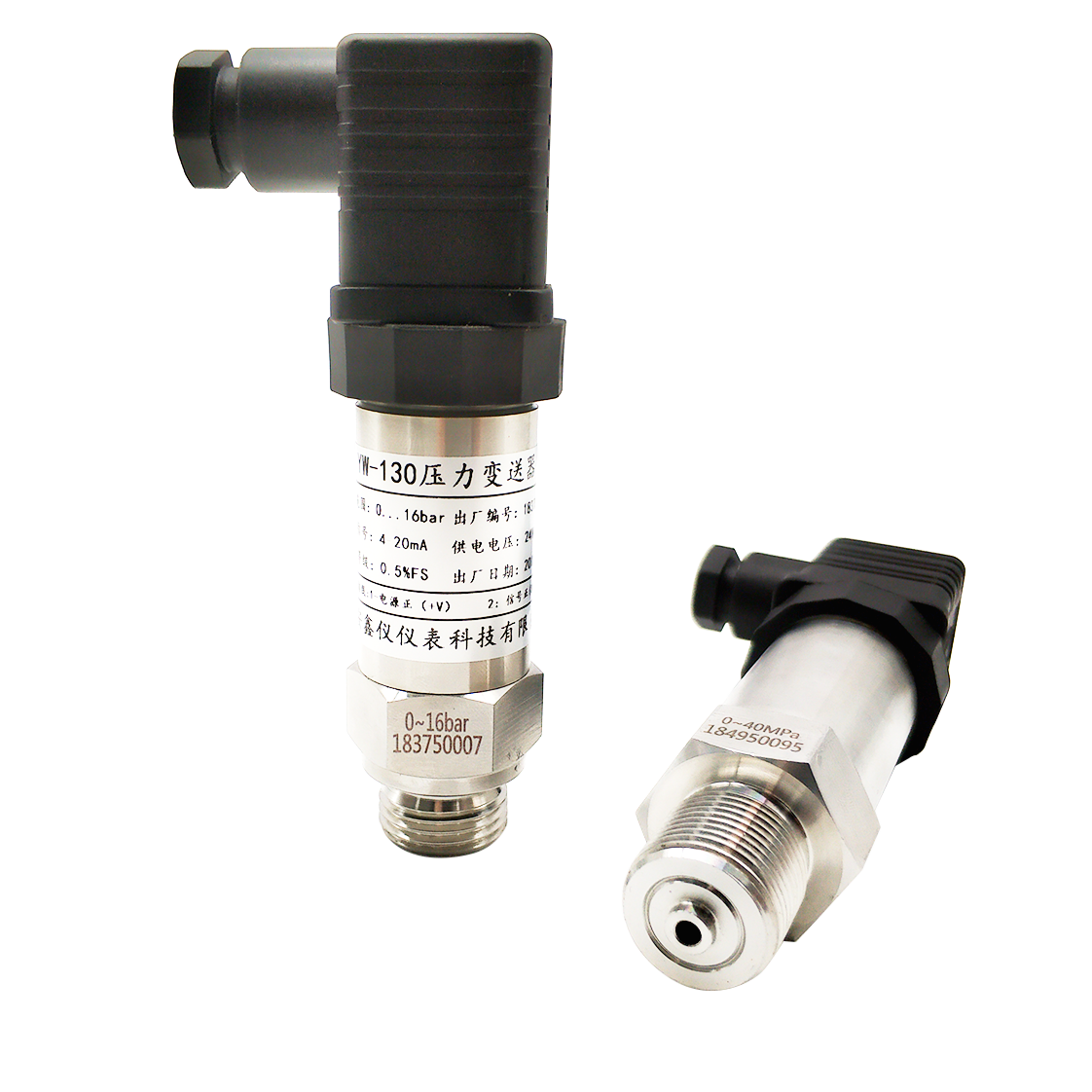

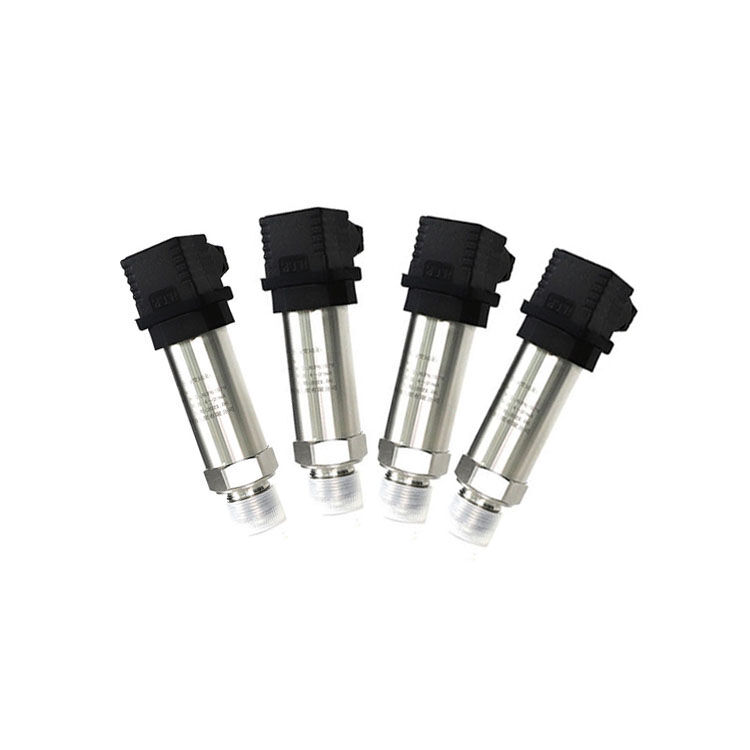

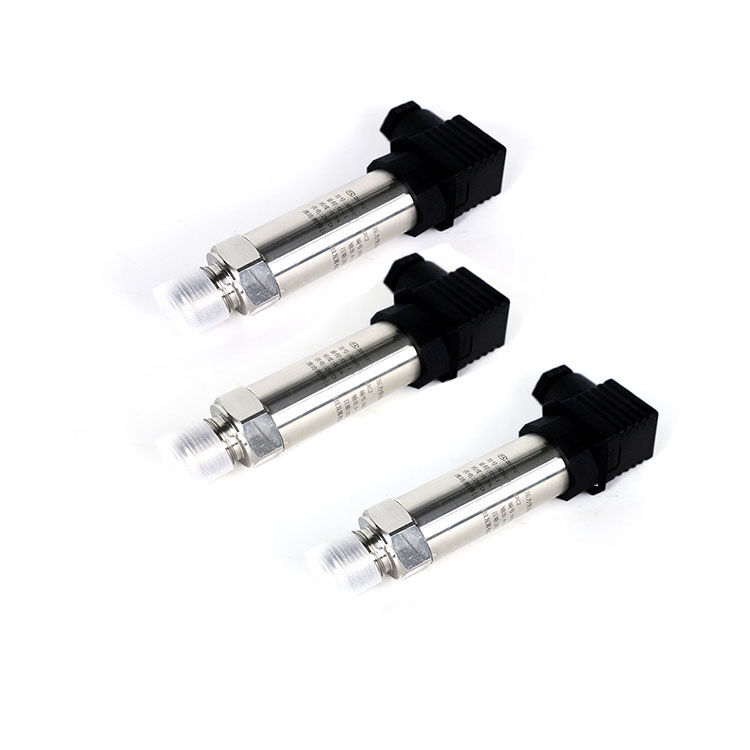

rod type pressure sensor
diffusion silicon 4~20mA small differential pressure/pressure/liquid level injection can replace petrochemical,
metallurgy, electric power, food and medicine, papermaking, and textile industries. It is used to detect fluid differential
pressure, pressure, liquid level, density and other parameters, and is tested The signal is converted into 4~20mA.DC and sent to
display, calculation, adjustment or control instruments, which can form various automatic control systems.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

1. Two-wire system, 4~20mA output
2. The parts are interchangeable, versatile and durable
3. Convenient installation, wide use occasions, outdoor and explosion-proof. Both high temperature and strong corrosive
environment are acceptable.
4. The range, decimal point, unit name, high and low voltage exchange can be modified on-site, and factory settings can be
restored.
5. Comply with Hart agreement.
Products processing:
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer
control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production
to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range,
the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance
records, one-click query, digital management, to give you a better use of experience.

Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
