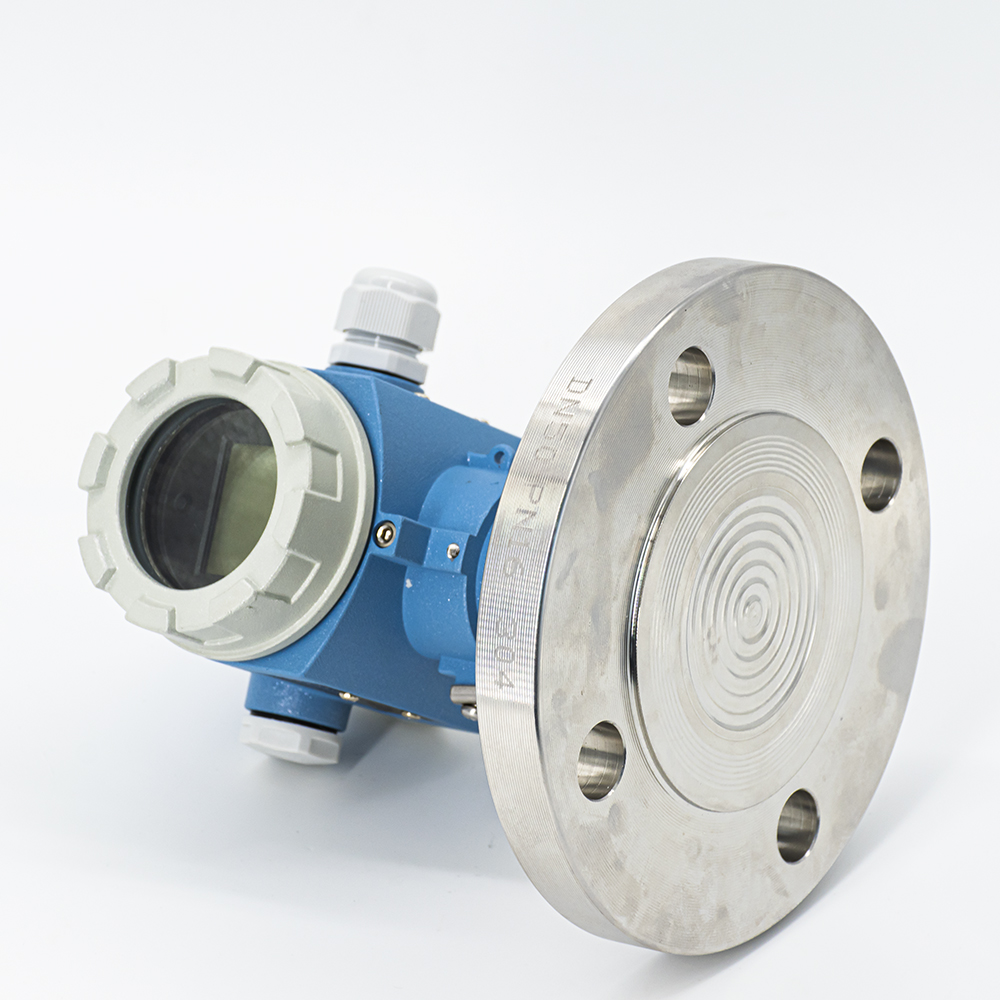

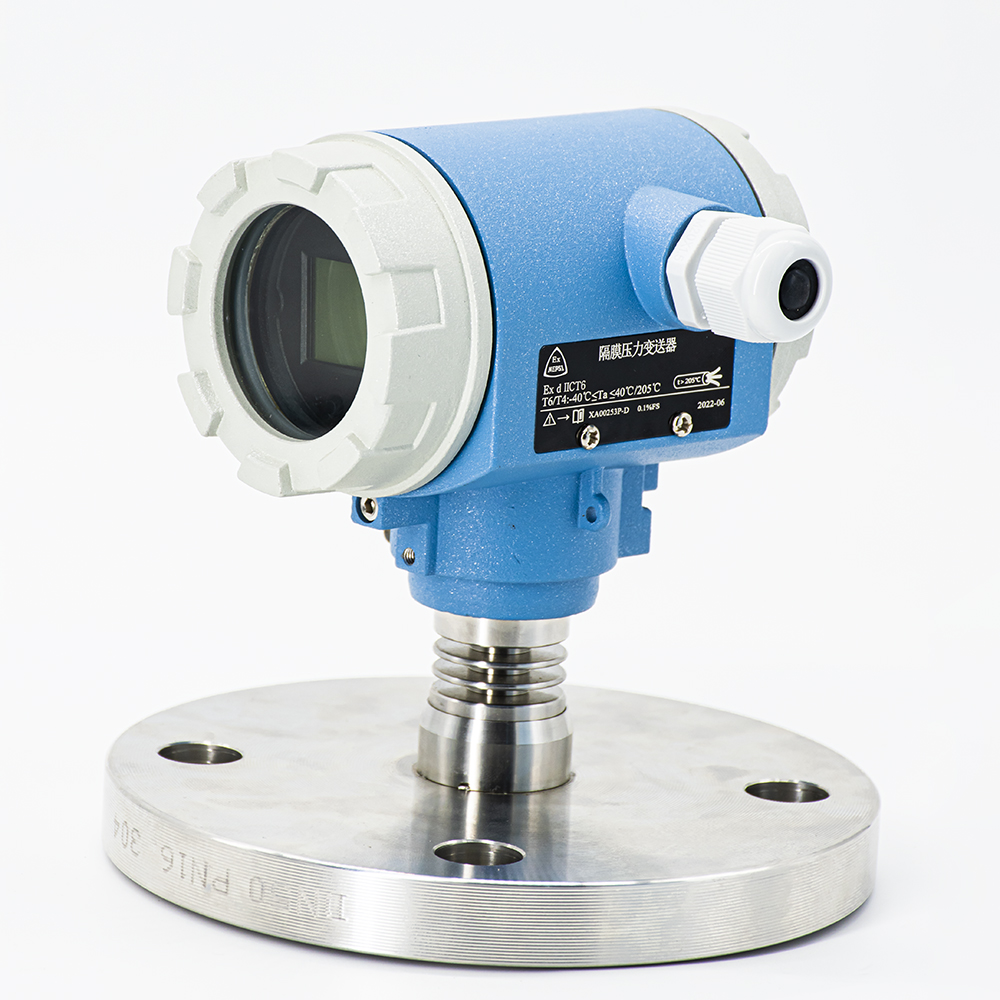

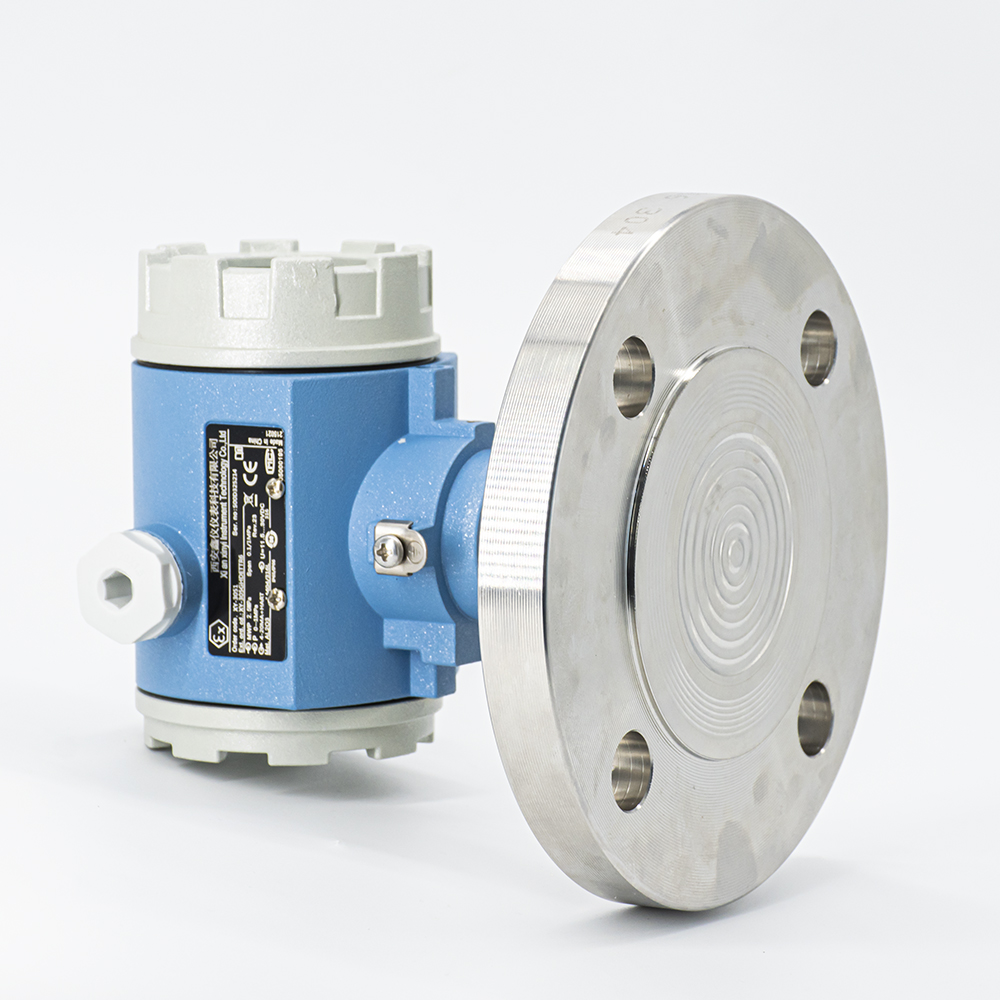

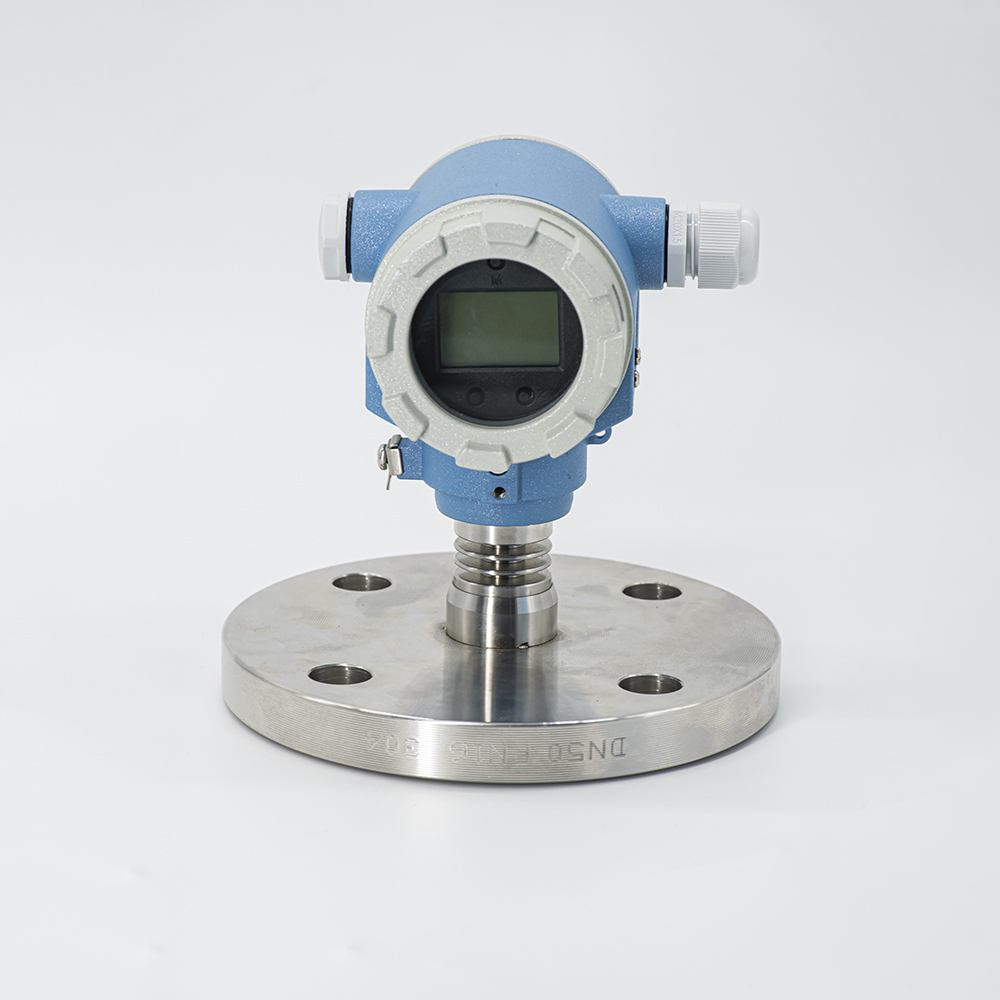

Diaphragm pressure transmitter

This product is widely used in water plants, oil refineries, sewage treatment plants, building materials, light industry, machinery and other industrial fields to realize the measurement of liquid, gas, and vapor pressure.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

PRINCIPLE

Pressure transmitter is a device that converts pressure into pneumatic signal or electric signal for control and remote transmission. It can convert the physical pressure parameters of gas, liquid, etc. sensed by the load cell sensor into standard electrical signals (such as 4-20mADC, etc.) to provide secondary instruments such as indicator alarms, recorders, regulators, etc. for measurement and indication And process regulation.

FEATURES

The pressure transmitter selects sputtering film sensor, imported silicon diffusion type, ceramic pressure sensor as sensitive components, and adopts a dedicated integrated module. After fine temperature drift, zero point, and nonlinear compensation, it can realize the control of liquid level, gas, and steam. Accurate measurement and transmission of pressure changes of other media. Realize ideal monitoring of pressure vacuum in various places in industrial and mining enterprises, scientific research institutes and other departments.

PARAMETER

Measuring medium	Gas, liquid, oil and other media compatible with 316
Measurement form and range	Gauge pressure---maximum (0～60)MPa, minimum (0～0.5)KPa
	Absolute pressure---maximum (0～40)MPa, minimum (0～5)KPa
	Negative pressure --- (-0.1～40)MPa, minimum (-0.2～0.2 )KPa
Accuracy class	0.1、 0.25、 0.5
Overload capacity	2～5 times the range
Long-term stability	Less than 0.25%FS/year, less than 0.5%FS/year
Power supply	15～36 VDC (rated voltage 24VDC)
output signal	(4～20)mA (two/three wire system), (0～10/20)mA
output signal	（0～5）V、（1～5）V、（0～10）V
Display method	Pointer head or digital display optional
calibration	Adjust the zero point and range by adjusting the precision potentiometer
calibration	Working temperature: (-40～80)℃ Compensation temperature: (-20～70)℃
Operating temperature	-40～80℃ Compensation temperature: -20～70℃
Process connection	M20×1.5 external thread (Ф3 inner hole) or user specified
Isolation diaphragm material	316 stainless steel
Sensor interface material	1Cr18Ni9Ti
Shell material	Aluminum alloy
Protection level	IP65

Message

Products Recommended



Pressure Transmitters for Industrial Pressure Measurement

Name: Diaphragm pressure transmitter
SKU: 0

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types	Gauge, absolute, negative pressure, differential pressure
Measuring Range	From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals	4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy	Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection	M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials	Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media	Water, oil, gas, air, steam and compatible liquid or gas media
Applications	Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
Xinyi YW-3051DP - smart differential pressure transmitter for process control.
Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
