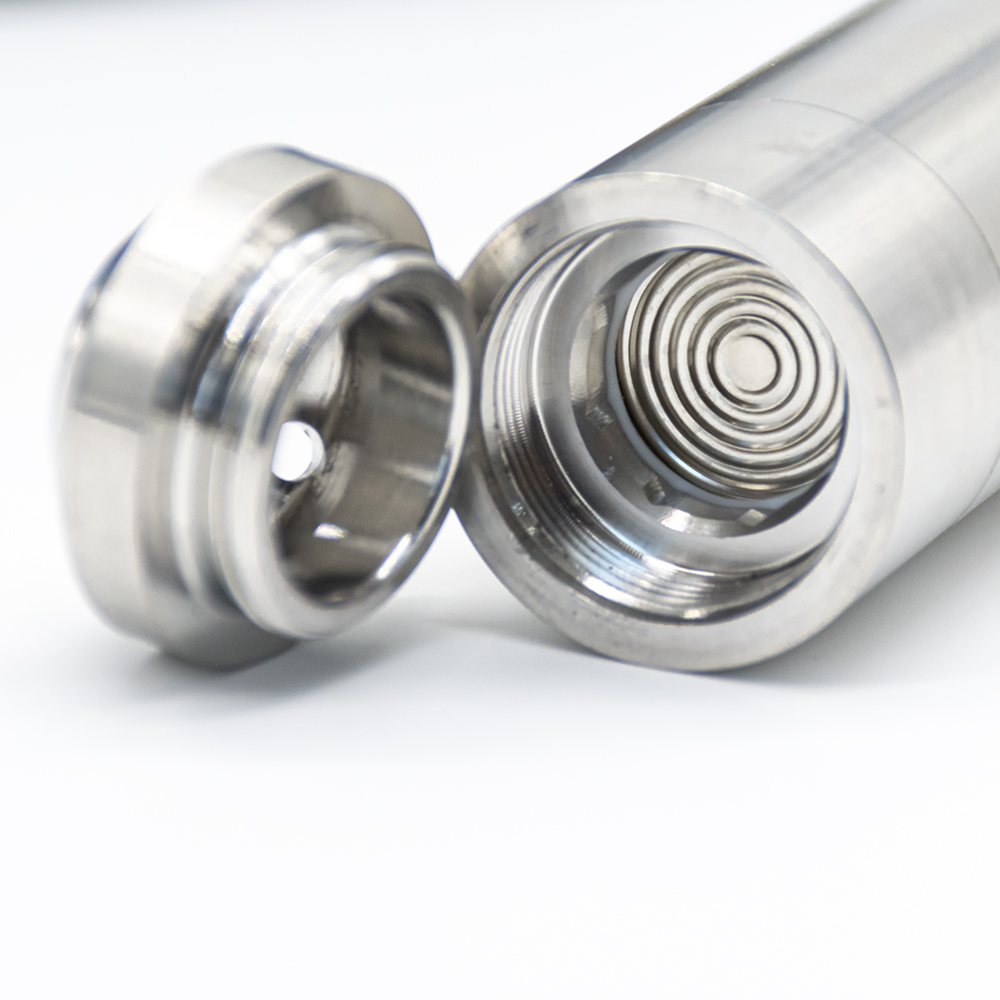

General Submersible Level Transmitter

YWKT-1B

· 1, 2, 5, 10, 20, 50, 100, 200mH2O
· Accuracy: ±0.25%FS (Typ.)
· General Level Measurement
Used For
This is a submersible level transmitter for liquid media level measurement. Analog 4 20mADC, 1-5VDC output optional. The liquid could be seawater, acid, freshwater, sewage and waste water.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

YWKT-1B submersible level transmitter using highly reliable and stable piezoresistive pressure cell and signal processing inside, guarantee the good accuracy and stability and with high accuracy +0.25%FS. It has compact size, easy installation can be submersible into the liquid directly to measure level from the transmitter bottom to the liquid surface. It has a variety of output signals including current and voltage which can meet the different application requirement.

With reliable ex-proof construction and electronics, this model is also ideally suitable in EX areas and approved by DNV. MPM426W submersible level transducer outputs analog 4-20mA DC and 0/1V~5/10V DC signal with CE marked and the intrinsic safe version available. It can perfectly be used on a ship or marine application. It is used for general level measurement in applications of petroleum, chemi-industry, power station, city water supply and drainage and hydrology, etc.

Range	0mH2O ~ 1mH2O…200mH2O
Overpressure	≤2 times FS
Accuracy	see Accuracy on page 2
Long-term Stability	Range> 10mH2O, ≤ ±0.2％ FS/ year
Long-term Stability	Range≤ 10mH2O, ≤ 20mmH2O/ year
Application Temperature	-10℃ ~ 60℃ (intrinsic safety type)
	-20℃ ~ 70℃ (B2 type, cable material: PE, PVC)
	-20℃ ~ 80℃ (B2 type, cable material: PUR)
Storage Temperature	-20℃ ~ 85℃
Vibration	10g, 55Hz ~ 2000Hz
Shock	100g, 11ms
Protection Rating	IP68
Weight	≤150g
