Product Description


Technical Parameter

Model

YW -

Pressure range

-100KPa~0~100MPa

Pressure measurement

Gauge Pressure, Absolute pressure, Sealing pressure

Output

4-20mA

Process connection

M20×1.5/G1/2( or on your demand)

Measuring medium

Gaseous,Liquid,Water, gas, air, etc

Power supply

12~36VDC/5VDC

Environment temperature

-30~80ºC

Relative temperature

0~90%

Medium temperature

-30~80ºC

Accuracy

0.1%F.S, 0.25%F.S,0.5%F.S

Long-term stability

≤0.2%F.S/year

Overload

150%

Housing material

304/316 stainless steel

Production grade

IP65

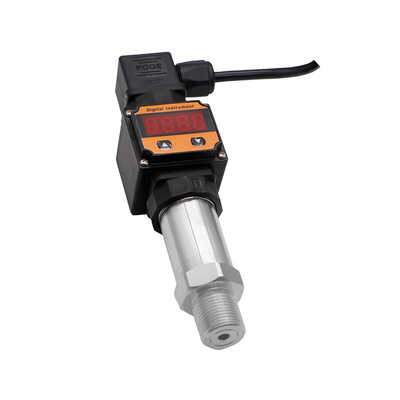

NICON pressure transducer 100psi compact digital display pressure transmitterNICON pressure transducer 100psi compact digital display pressure transmitter





Detailed Images

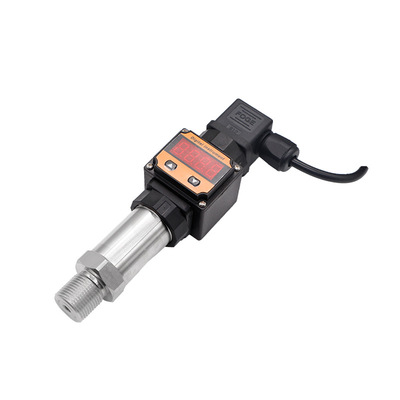

NICON pressure transducer 100psi compact digital display pressure transmitter

Characteristics:



1. High accuracy and good stability.

2. range coverage is wide.

3. no moving parts, high reliability and long service life.

4. not affected by the mass of the medium under test.

5. stainless steel case, IP65 grade of protection.

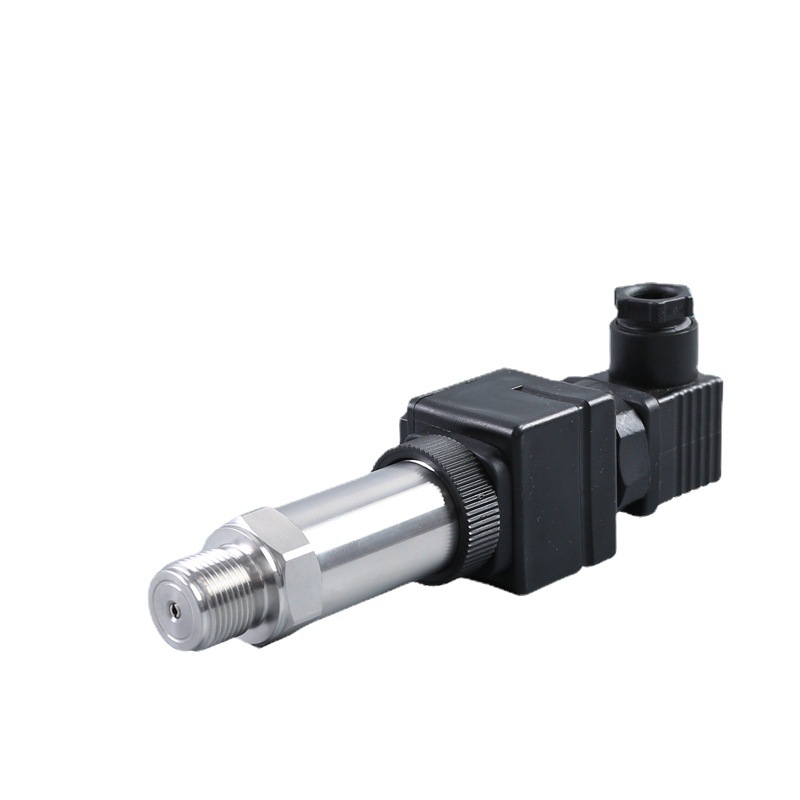

NICON pressure transducer 100psi compact digital display pressure transmitter



Advantages:



1. imported core, high stability, high precision.

2. LED four-digit display, real-time monitoring of pressure.

3. various connection modes can fully meet the installation requirements of various specific occasions.

4. use German technology, small appearance, strong reliability.

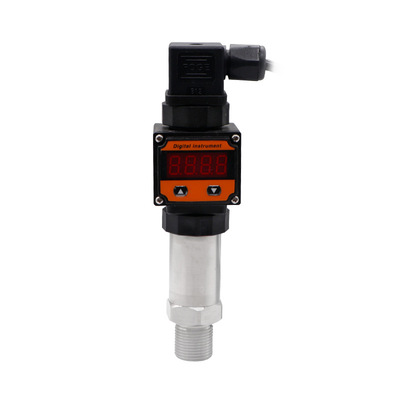

NICON pressure transducer 100psi compact digital display pressure transmitter





Mainly used in:

1.Equipment manufacturing, hydraulic station, metallurgical industry

2.Control, aerospace, automotive

3.Food, pharmaceutical pipelines  boilers, power plants reactors, HVAC equipment, etc

4.Pressure measurement of water,oil and gas medium industrial furnace, electric power. Metallurgical, glass, chemical, rubber and textile industries

NICON pressure transducer 100psi compact digital display pressure transmitter

Main production processes

1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.

2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.

3. High temperature aging test 72 hours aging test to ensure stable and reliable quality

4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.



NICON pressure transducer 100psi compact digital display pressure transmitter
