Original Endress+Hauser CM42B Liquiline M Single Channel Liquid Analysis Transmitter

›

‹

  • Original Endress+Hauser CM42B Liquiline M Single Channel Liquid Analysis Transmitter
  • Original Endress+Hauser CM42B Liquiline M Single Channel Liquid Analysis Transmitter
  • Original Endress+Hauser CM42B Liquiline M Single Channel Liquid Analysis Transmitter

›

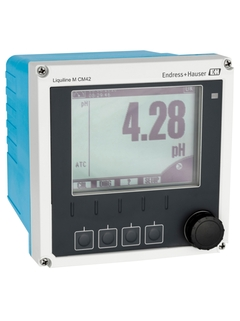

Original Endress+Hauser CM42B Liquiline M Single Channel Liquid Analysis Transmitter
Endress+Hauser CM42B is an upgraded single-channel 2-wire analytical transmitter of Liquiline M series.
It supports Memosens digital sensors and analog probes to measure pH, ORP, conductivity and dissolved oxygen.
Available with 4-20mA/HART, optional PROFIBUS PA communication. IP66/IP67 housing with optional explosion-proof certification.
Built-in Heartbeat self-diagnosis and Bluetooth for SmartBlue App operation.
Commonly used in water treatment, chemical, food and pharmaceutical industries.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The Endress+Hauser Liquiline M CM42B is the upgraded, high-reliability single-channel two-wire analytical transmitter optimized for precise continuous liquid parameter monitoring in standard, hygienic and hazardous industrial environments. As an enhanced iteration of the classic CM42 series, the CM42B delivers improved operational flexibility, safer wireless communication, stronger diagnostic performance and wider certification coverage, making it a cost-effective and future-proof solution for professional process liquid analysis.
This multi-parameter transmitter supports both advanced Memosens digital sensors and conventional analog probes, enabling flexible measurement of pH, ORP, conductivity and dissolved oxygen. Featuring plug-and-play sensor recognition, the CM42B automatically identifies connected sensors and loads matched measurement parameters, which greatly simplifies on-site commissioning, reduces manual configuration errors and shortens project startup time. Users can switch measuring parameters freely according to production demands, achieving versatile monitoring for diverse process water and fluid medium conditions.
Adopting a standard two-wire loop-powered design, the CM42B simplifies field wiring and reduces engineering and maintenance costs. It is equipped with universal 4-20mA analog output with optional HART communication, as well as optional PROFIBUS PA fieldbus interface, supporting seamless integration with mainstream PLC, DCS and industrial control systems. The stable signal output and strong electromagnetic interference resistance ensure long-term consistent measurement performance even in complex industrial electromagnetic environments.
One of the core upgrades of the CM42B is its enhanced wireless operation system. Built-in encrypted Bluetooth module supports stable connection with the E+H SmartBlue App, allowing engineers to remotely view real-time measuring data, adjust parameters, complete calibration and query device logs via mobile devices. The exclusive security encryption mechanism effectively prevents unauthorized access, ensuring safe and convenient off-site operation and improving overall maintenance efficiency.
Equipped with E+H proprietary Heartbeat Technology, the CM42B realizes full-cycle real-time self-diagnosis. The system can actively detect sensor aging, signal abnormality, device fault and working condition anomalies, and trigger timely alarm reminders. This predictive maintenance function avoids unplanned downtime, reduces equipment failure risks and ensures long-term high availability of on-site measuring points.
For harsh industrial application scenarios, the field-mounted housing of the CM42B features IP66/IP67 dustproof and waterproof protection and NEMA 4X rating, adapting to outdoor installation and severe workshop environments. It holds global authoritative certifications including ATEX, IECEx, C/US and CHN-Ex explosion-proof approvals, supporting safe operation in flammable and explosive hazardous areas. Meanwhile, it complies with industrial hygienic standards, fully meeting the strict sanitary requirements of food, beverage and pharmaceutical production processes.
With a user-friendly graphical display and simplified navigator key operation, the CM42B enables intuitive on-site viewing, calibration and parameter setting without complex professional training. Its modular compact structure ensures easy installation and flexible layout, whether for field wall mounting or DIN rail mounting scenarios. Low daily maintenance requirements and excellent long-term operational stability further lower the total operating cost for users.
Widely applicable in municipal and industrial water treatment, chemical processing, power plants, food & beverage, pharmaceutical and life science industries, the Endress+Hauser CM42B serves as a reliable, efficient and intelligent core device for online liquid analytical monitoring in modern process industries.

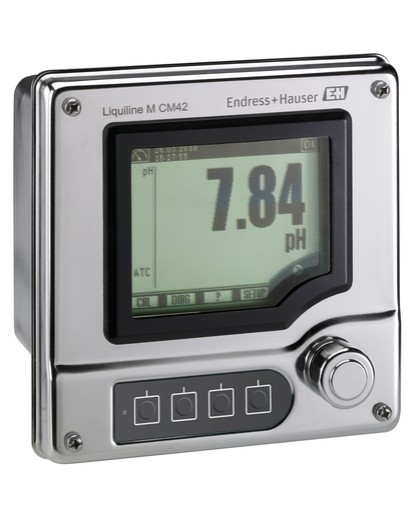

微信图片_2025-11-17_165802_233

9

8

Mira


Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
