Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor

›

‹

  • Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor
  • Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor
  • Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor
  • Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor

›

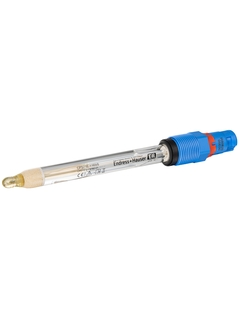

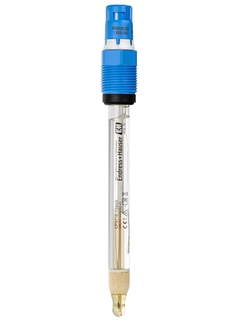

Original E+H CPS71E Digital pH Probe Memosens pH Electrode Industrial Liquid Analysis Sensor
Endress+Hauser CPS71E is a high-performance digital pH electrode adopting Memosens 2.0 technology, belonging to the Orbisint sensor series designed for demanding industrial process pH measurement. This pH probe is specially engineered for aggressive, toxic and contaminating media, widely applied in chemical production, wastewater treatment, pharmaceutical manufacturing and petrochemical industries.
Equipped with an anti-poison ion trap reference system, CPS71E effectively blocks sulfide, cyanide and heavy metal ions from damaging the reference electrode, greatly extending its service life in harsh process fluids. Its pressurized liquid reference diaphragm resists clogging under high-viscosity, particle-containing and fluctuating pressure conditions, delivering stable and repeatable measuring signals long-term. Built-in integrated NTC temperature sensor realizes automatic temperature compensation to ensure accurate pH readings across wide temperature ranges.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The Endress+Hauser CPS71E is a premium industrial digital pH electrode from the renowned Orbisint series, equipped with advanced Memosens 2.0 technology, specially developed for precise and stable pH measurement in the harshest industrial process environments. Designed to tackle persistent challenges including medium contamination, electrode poisoning, signal interference and frequent sensor failure, this professional pH probe has become a core analytical component for continuous liquid monitoring in chemical, petrochemical, pharmaceutical, wastewater treatment and energy industries, delivering long-term reliable measuring performance for complex process conditions.
One of the most competitive core features of the CPS71E is its built-in anti-poison ion trap reference system. Unlike conventional pH electrodes that are easily damaged by sulfide, cyanide, heavy metal and corrosive ions in process media, the unique ion trap structure effectively blocks harmful substances from eroding the reference junction and internal electrode system. This innovative design fundamentally prevents sensor poisoning and signal drift, greatly extending the service life of the electrode even in toxic, high-corrosion and heavily polluted media, and significantly reducing frequent replacement costs and production downtime.
To adapt to complex working conditions with high viscosity, particle impurities and pressure fluctuations, the CPS71E supports an optional pressurized reference diaphragm structure. This design effectively resists medium clogging and ensures unobstructed liquid exchange at the measuring interface, maintaining consistent and repeatable pH measurement signals in blocking media such as dispersions and turbid process fluids. It covers a wide pH measuring range of 0 to 14 for standard applications and 0 to 12 for high-demand scenarios, with adaptable process temperatures from 1°C to 140°C and working pressures from 0.8 bar to 14 bar, fully meeting diverse industrial production parameters.
Powered by Memosens 2.0 non-contact inductive digital transmission technology, the CPS71E completely separates the sensor’s wetted measuring part and electronic transmission part. It thoroughly eliminates signal instability and equipment damage caused by moisture, corrosion and cable aging, realizing anti-interference and high-stability signal transmission. The integrated high-precision NTC temperature sensor supports automatic real-time temperature compensation, calibrates pH deviation induced by temperature changes, and guarantees ultra-high measuring accuracy across full temperature and pressure ranges.
In terms of safety and installation flexibility, the CPS71E holds ATEX and IECEx explosion-proof certifications, enabling safe operation in hazardous Zone 0/1/2 flammable and explosive environments. It supports flexible installation including upside-down mounting to adapt to various pipeline and tank installation spaces. Adopting plug-and-play design, the sensor can store calibration data internally, supporting on-site rapid calibration and quick replacement without complicated wiring and debugging. This simplifies daily maintenance, realizes full data traceability, and effectively reduces manual operation costs and system maintenance risks. All wetted parts adopt high-corrosion-resistant glass and PTFE materials, ensuring excellent compatibility with strong acid, strong alkali and organic solvent media, making it a durable and cost-effective solution for industrial online pH analysis.

微信图片_2025-12-17_105942_017

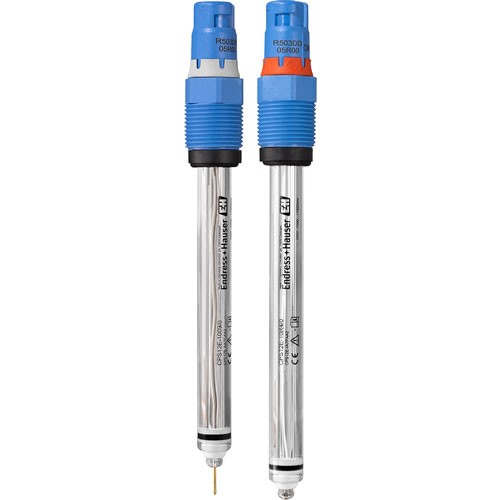

微信图片_2025-12-17_105714_858

微信图片_2025-12-17_105512_018

微信图片_2025-12-17_105430_074

Mira


Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
