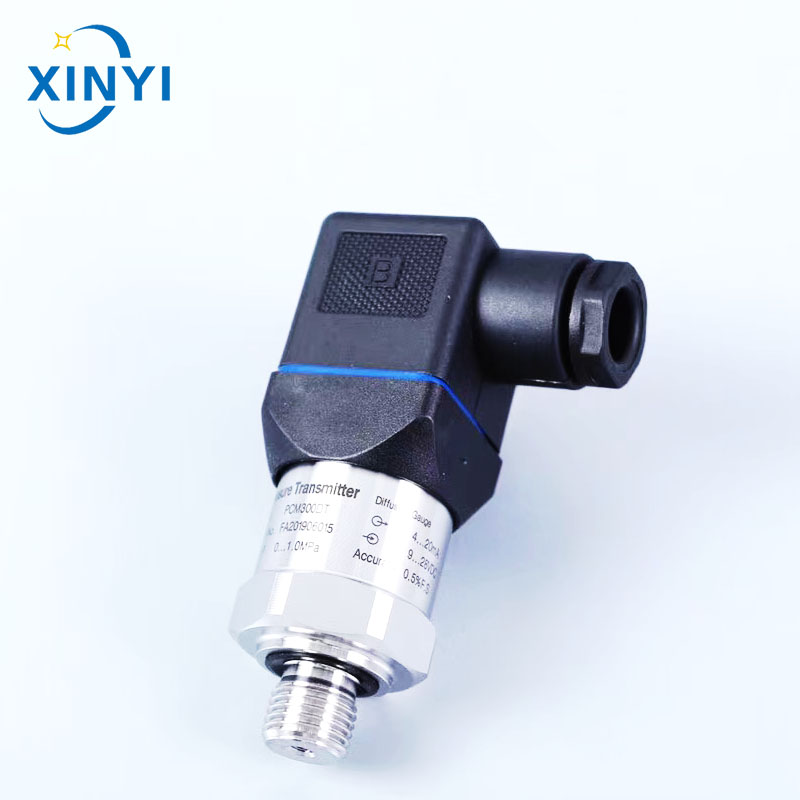

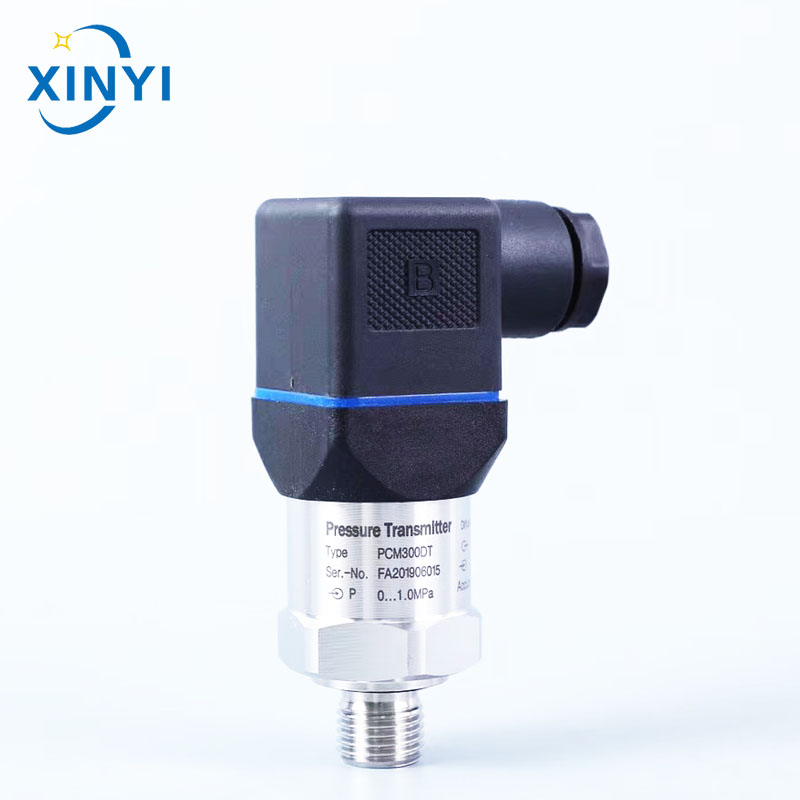

A-10 Pressure transmitter

›

‹

  • A-10 Pressure transmitter
  • A-10 Pressure transmitter
  • A-10 Pressure transmitter

›

A-10 Pressure transmitter
· Range: 0~250mbar to 0~250bar
· Pressure Type: Gauge, Absolute, Positive/Negative
· Accuracy: ±0.5%FS
· Output: 4mA~20mA DC, 0/1V~5/10V DC, 0.5V~4.5V DC
Used For
A-10 is suitable for various pressure monitoring and measurement in general industrial occasions.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description


1 . Overview
Pressure transmitter is kind of device based on pressure layer,which inside expert integrate circuit
can transform sensor milli-volt signal to standard far distance transmission current signal, and it can be
directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc.
conveniently. The series' product is applied extensively in the professions, such as the industry process
control, petroleum, chemical engineering and metallurgy etc. Carry the distance delivers and can adopt
electric current exportation method.
The pressure transmitter have the physical volume small, the weight is light, the whole stainless
steel seals completely the structure, can work in the causticity environment.That product installs the
convenience simple and direct, have the very high anti- to flap to pound at the function with anti-, be
apply in the process to control extensively, aviation, aerospace, automobile, medical treatment

equipments, HVAC etc. realm.

A-10 is a pressure transmitter suitable for the general industry. It has Gauge, Absolute, Positive/Negative pressure type optional. Its selection and options are rich and flexible to measure medium of air, water, mixed oil, or other fluid that can be compatible with wetted parts.


Specification

•

Pressure Type: Gauge, Absolute, Positive/Negative

•

Pressure Range: 0kPa ~ 25kPa to 0MPa ~ 25MPa

•

Electrical Connection:

Angular Connector DIN 175301-803A

Circular Aviation Plug M12×1(4pin) IEC 61076-2-101

Cable Φ5.0mm 5×0.12mm² Polyurethane

•

Accuracy: ±0.25%FS (@25℃ )

±0.5%FS (@25℃ )

•

Process Connection: M20×1.5

G1/4A

NPT1/4

R1/4

Other threads available on request

•

Output: 4mA ~ 20mA DC

0V~ 5V DC

1V~ 5V DC

0V~ 10V DC

0.5V~ 4.5V DC

•

Structure Specification: Full welded, molecular sieve

•

Medium: Air, water, mixed oil or other fluid that can be

compatible with wetted part
