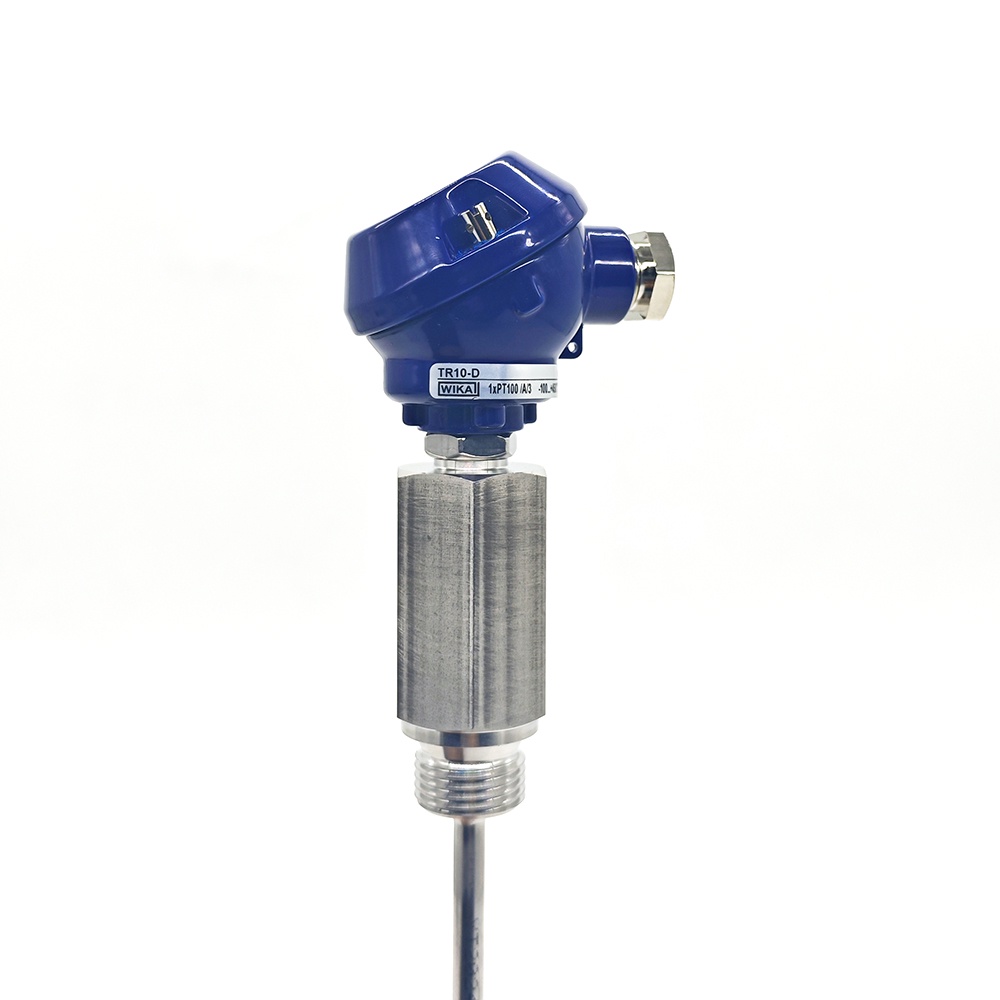

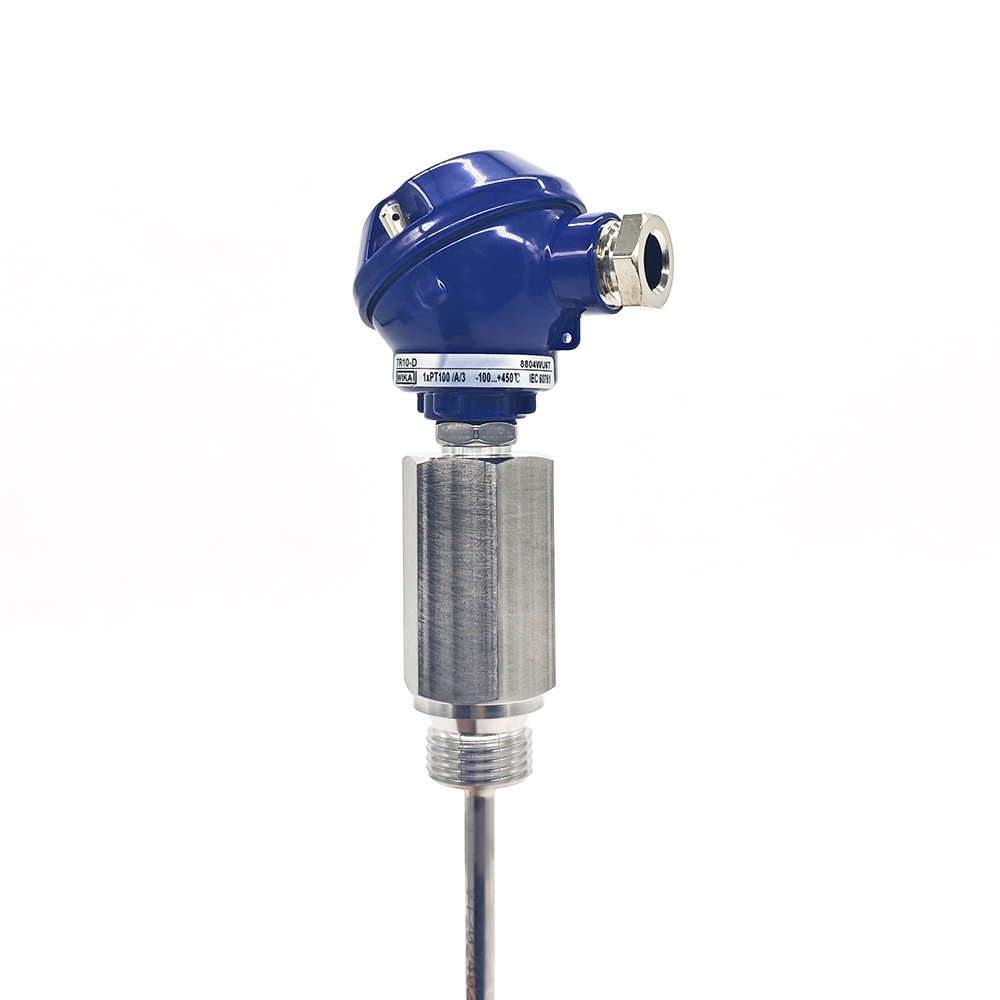

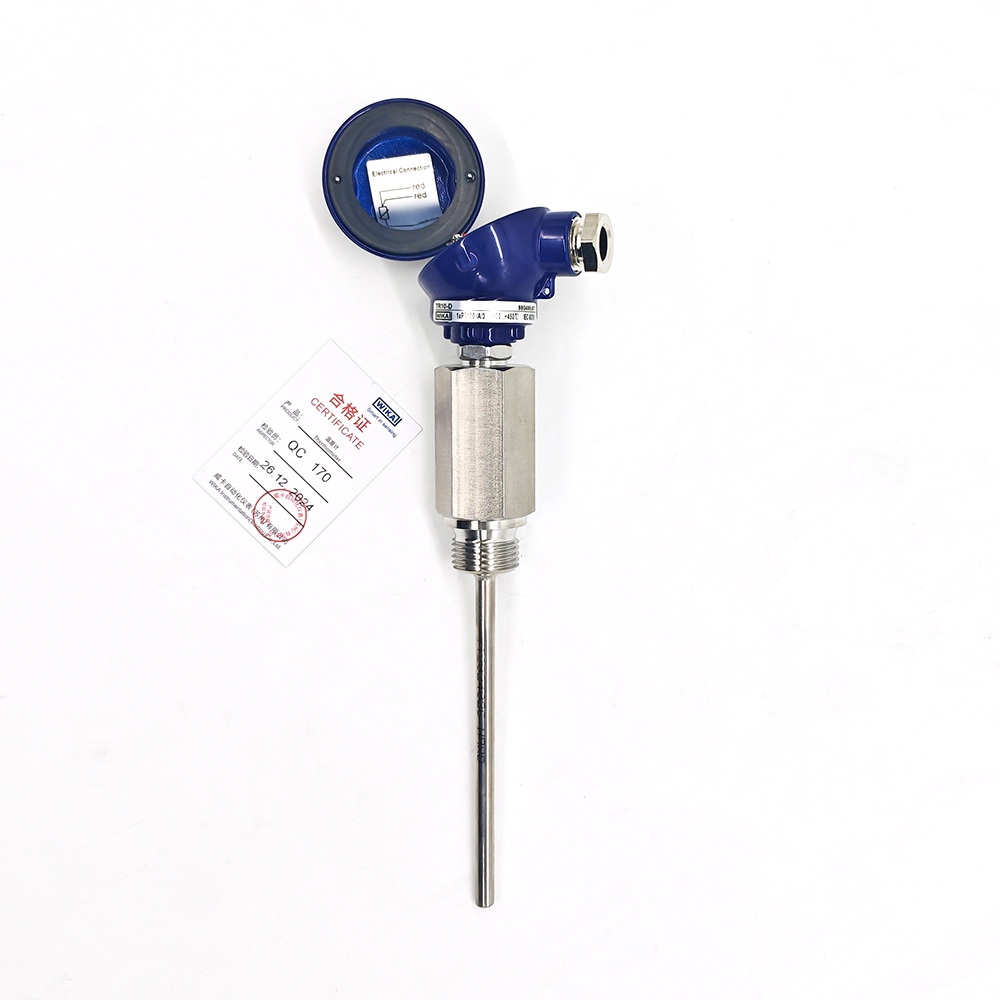

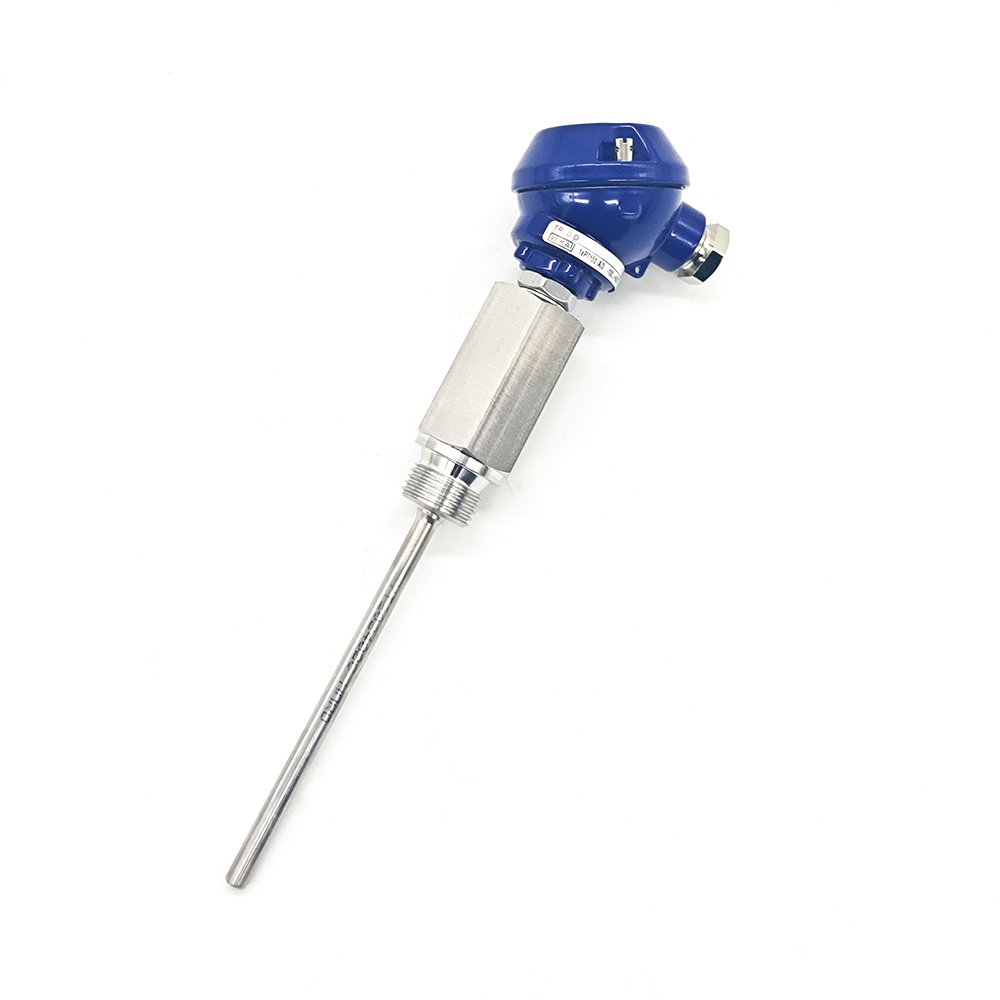

Germany WIKA TR10-D Threaded Thermistor Sensor And Thermistor Thermometer
The thermal resistance thermometer is directly connected to the process interface through threads. Electrical connections are made through terminal blocks in splash proof junction boxes. There are two forms of probe, depending on the specific application. There are two structures to choose from, one is to measure the elasticity of the plug and replace it, and the other is to measure the plug and insert it directly into the bottom of the sheath, which cannot be replaced.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Product Introduction

The  thermal resistance thermometer  is directly connected to the process interface through threads. Electrical connections are made through terminal  blocks in splash proof junction boxes. There are two forms of probe, depending on the specific application. There are  two structures to choose from, one is to measure the elasticity of the plug and replace it, and the other is to  measure the plug and insert it directly into the bottom of the sheath, which cannot be replaced.

This series of resistance thermometers is used to measure the temperature of medium and low pressure liquid or gaseous  media.


Featured Features

  • Sensor ranges from -196 ... +500 °C [-320 ... +932 °F]

  • Compact design

  • Universal application

  • Direct installation into the process

  • Explosion-protected versions are available for many approval types (see data sheet page 2)


Application

  • Machine building, plant and vessel construction

  • Propulsion technology

  • Air conditioning and refrigeration system


Type:resistance thermometer
Temperature Resolution:0.1°C
Material:Stainless Steel
Communication Interface:Serial Port
Sensor:1x Pt100 / 3-wire
Range:-50~250°C
IP Rating:IP65
output:4 ... 20 mA
