Introduction

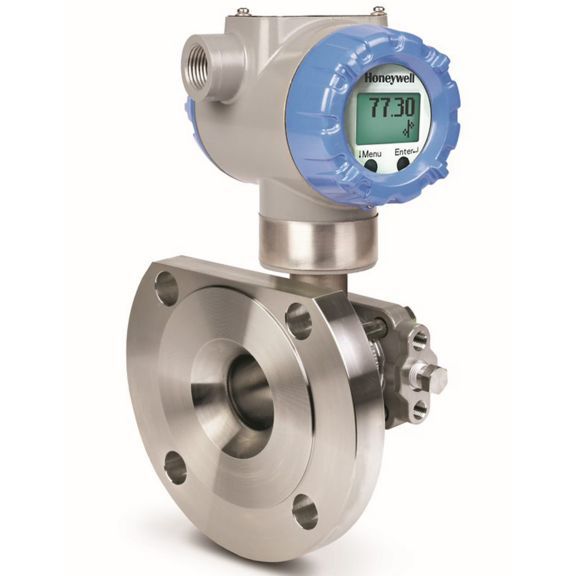

Part of the SmartLine® family of products, the STF700 is a flange mounted level transmitter suitable for monitoring, control and data acquisition featuring piezoresistive sensor technology. STF700 transmitters may be directly mounted onto a tank flange and are offered with a variety of tank connections including various flush and extended diaphragm configurations. STF700 offers high accuracy and stability over a wide range of level applications. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features:

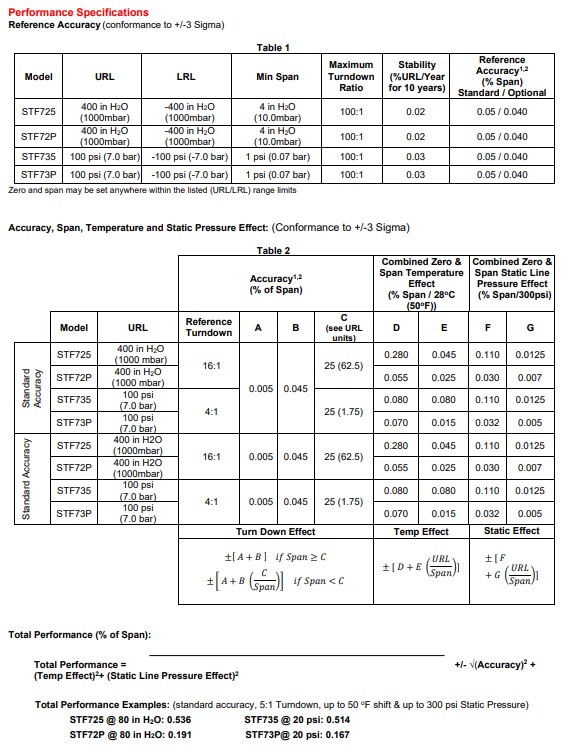

• Accuracies up to 0.05% of span standard & 0.04% of span optional.

• Stability up to 0.020% of URL per year for 10 years.

• Automatic static pressure & temperature compensation.

• Rangeability up to 100:1.

• Response times as fast as 100ms.

 • Easy to use and intuitive display capabilities.

• Intuitive External zero, span, & configuration capability.

• Comprehensive on-board diagnostic capabilities.

• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.

• World class overpressure protection.

• Full compliance to SIL 2/3 requirements.

• Modular design characteristics.

• Available with additional 4-year warranty.

• Supports NAMUR NE-107 Extended Diagnostics

The ST700 Flange Mount Pressure Transmitters are ideal for critical applications such as natural gas custody transfer and energy and material balances, where accuracy and stability are of utmost importance. Four ranges are available:
