Head-mount temperature transmitter TTH200

The TTH200 head-mount temperature transmitter supports HART 5 & 7 protocols, ideal for industrial temperature measurement with ABB tool compatibility.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

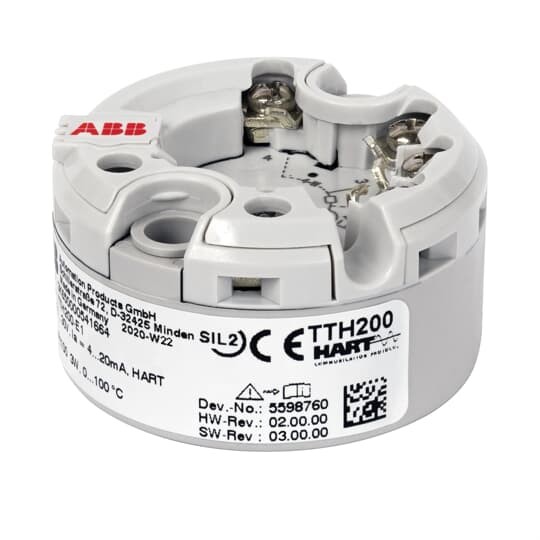

Head-mount temperature transmitter TTH200

The new temperature transmitter TTH200 supports both the HART 5 and HART 7 protocol and is the standard device of the proven TTx200 / TTx300 product family in two-wire technology.

Overview

The TTH200 is provided for all HART standard applications in temperature measurement with one sensor input. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. The TTH200 supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. As an option, an LCD indicator can be connected.
The transmitter can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
