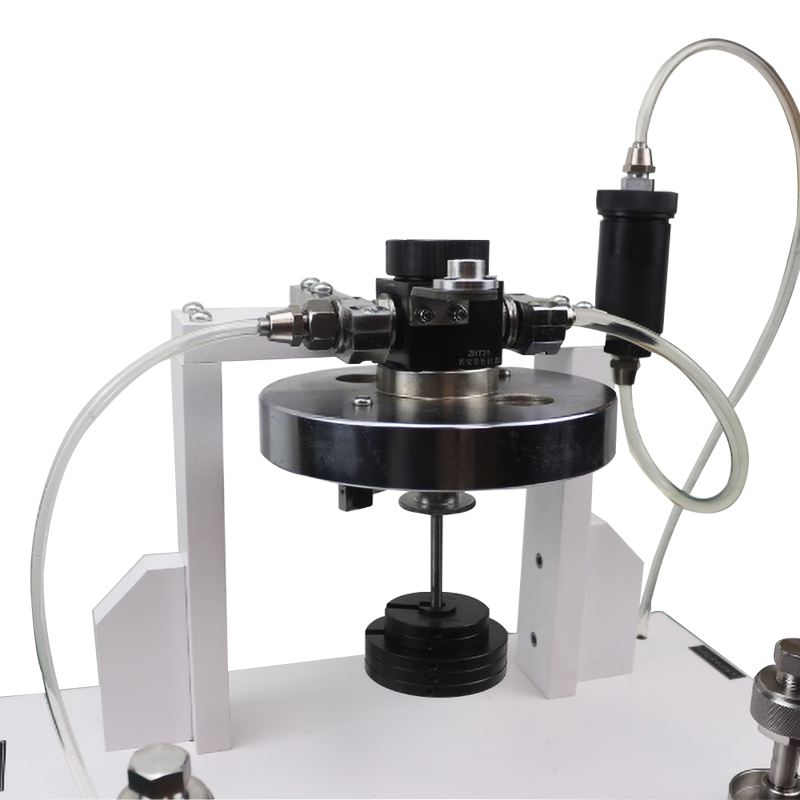

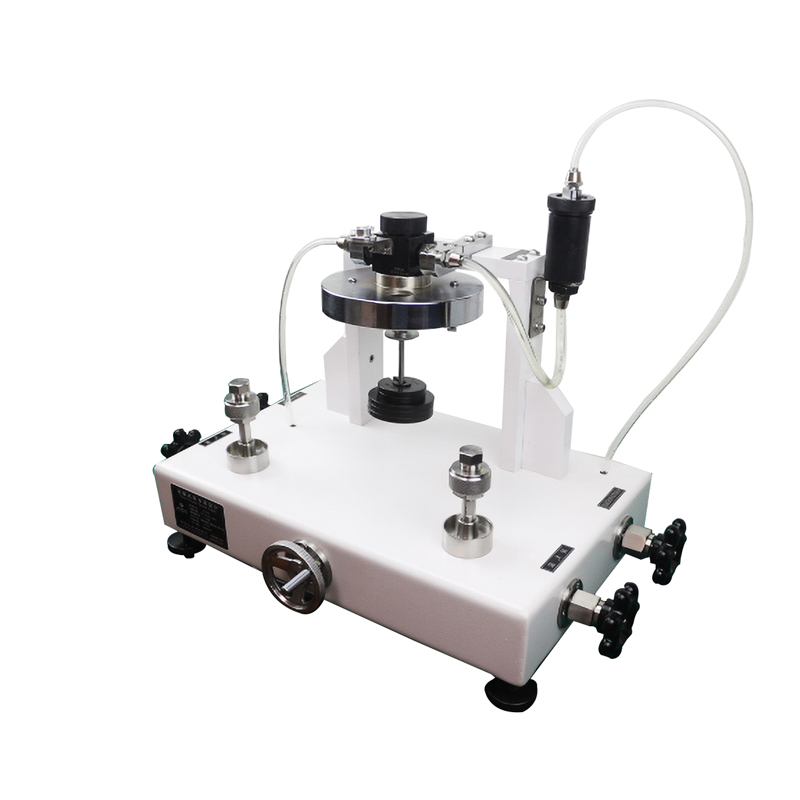

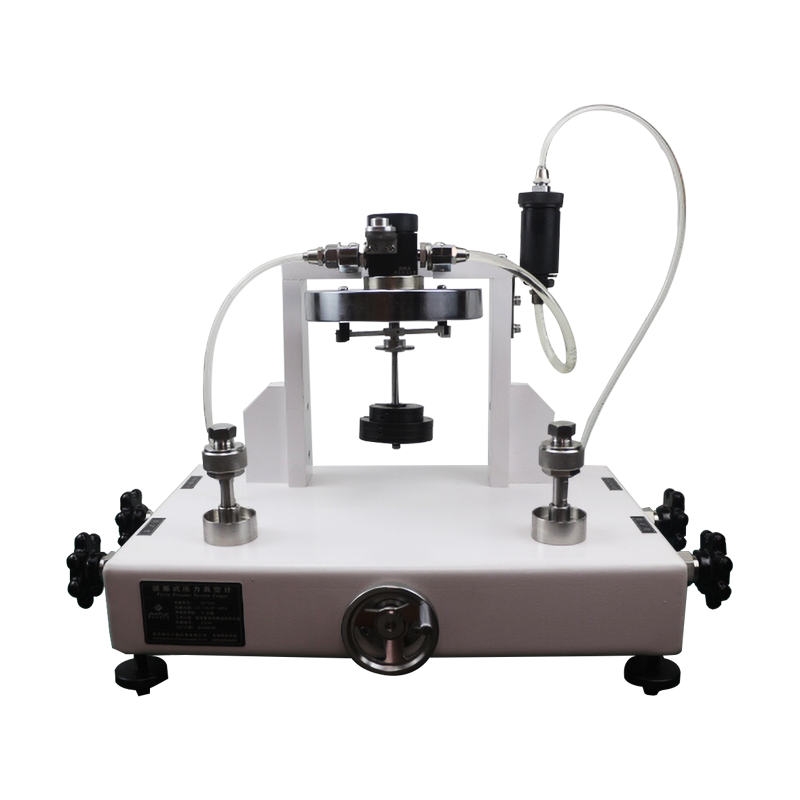

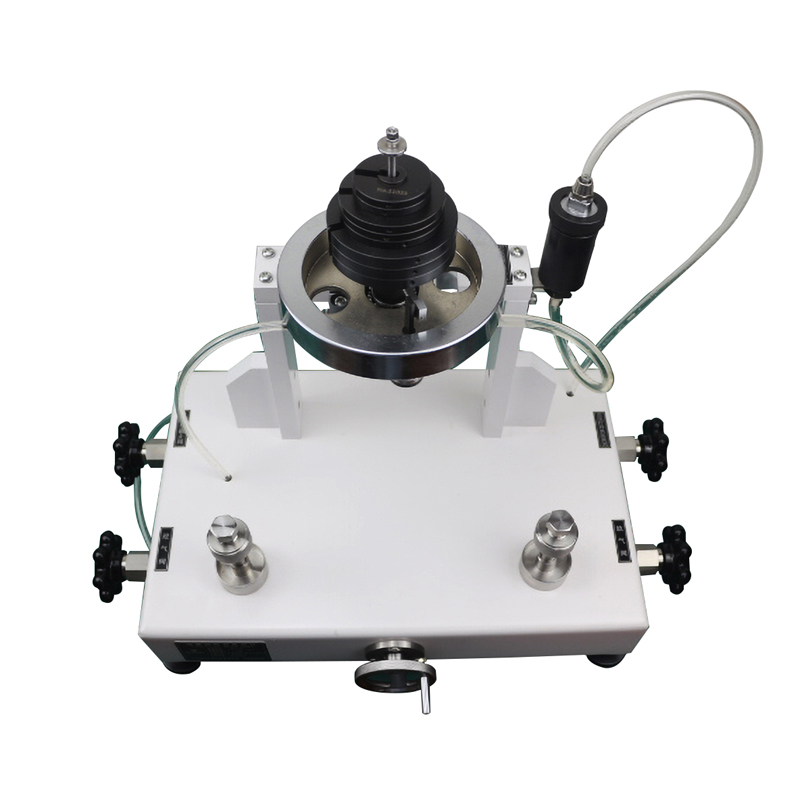

Vacuum Dead Weight Tester
YS-2.5, YS-6 piston pressure vacuum gauges are mainly used for testing 0.16, 0.25 and 0.4 precision pressure gauges in the range of -0.1~0.25MPa to -0.1~0.6MPa. The accuracy level of the pressure gauge is 0.05 or 0.02, and the working medium is gas.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Piston pressure vacuum gauge


YS-2.5, YS-6 Vacuum Dead Weight Testers are mainly used for testing 0.16, 0.25 and 0.4 precision pressure gauges in the range of -0.1~0.25MPa to -0.1~0.6MPa. The accuracy level of the pressure gauge is 0.05 or 0.02, and the working medium is gas.


Features:

            Measuring range: -0.1~0~+0.25MPa, -0.1~0~+0.6MPa;


           Accuracy level: 0.05, 0.02;


            Working medium: clean compressed air or bottled nitrogen;


           Connection thread: M20*1.5 quick connector;


           Weight material: 0.05 grade is carbon steel weight, 0.02 grade is non-magnetic stainless steel weight;


           Verification standard: "JJG99-2006 National Metrological Verification Regulations for Weights";


                             "JJG236-2009 Verification Regulations for Piston Pressure Vacuum Gauge";


Name

Unit

YS-0.25

YS-0.6

Upper limit of measurement

Mpa

0.25

0.6

Lower limit of measurement

Mpa

0.005

0.005

Range

Mpa

-0.1~-0.005，+0.005~0.25

-0.1~-0.005，+0.005~0.6

Weights

Mpa*pcs

0.05*3pcs,0.02*7pcs 0.01*3pcs,0.005*2pcs

0.05*7pcs,0.02*7pcs 0.01*3pcs,0.005*2pcs

Lock nuts


M20*1.5

M20*1.5

Weight

KG

30

35

Working medium


Clean compressed air or bottled nitrogen
