Product Description

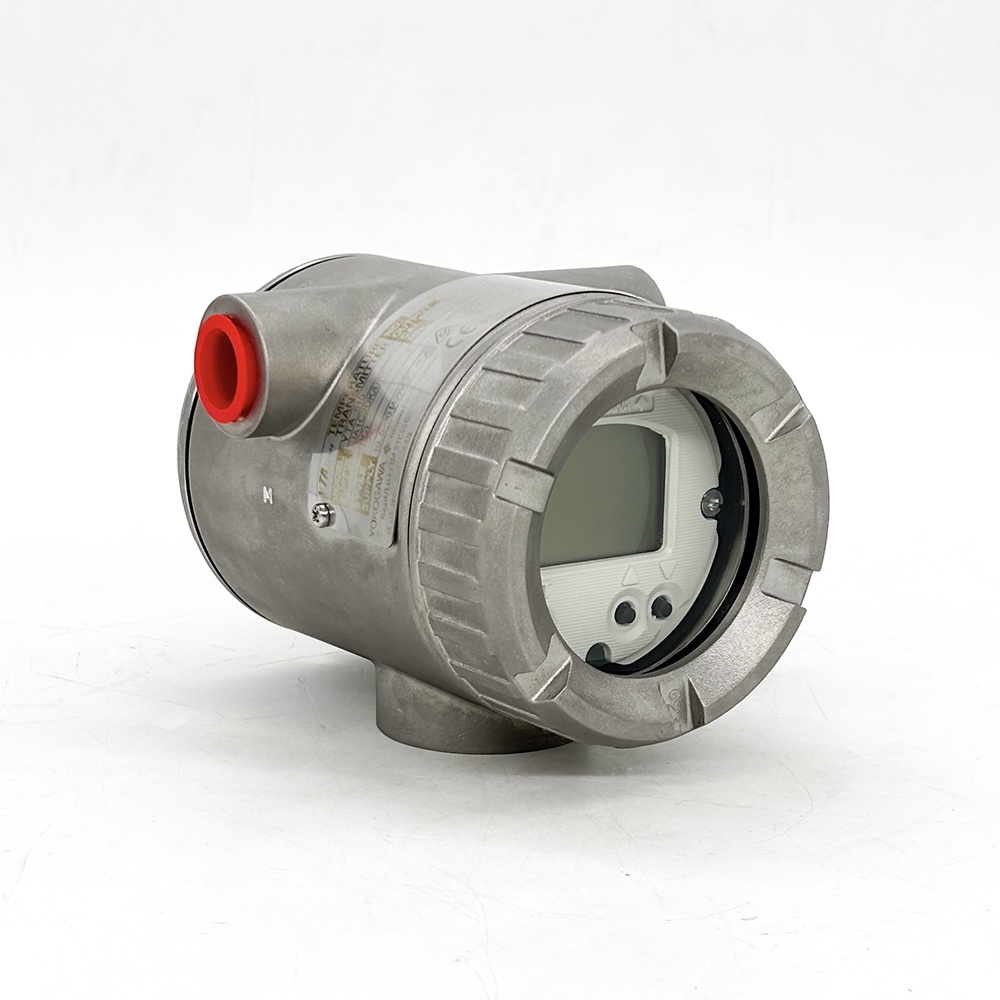

The  YTA610 temperature transmitter  provides accurate, stable, and reliable temperature measurement. Adopting a dual chamber housing structure effectively  prevents water vapor, moisture, or other pollutants from entering electronic devices. Single/dual sensor input can be  selected, accepting thermal resistance, thermocouple, DC millivolt and ohm signal inputs, converting them into 4-20mA  DC analog signals or digital signal outputs. Dual sensor input accepts signals from two sensors, providing difference  and average values, as well as backup function. The backup function automatically switches to backup when the main  sensor fails. Local parameter settings can be made through the display table.

Core functions and features

1. High reliability structural design:

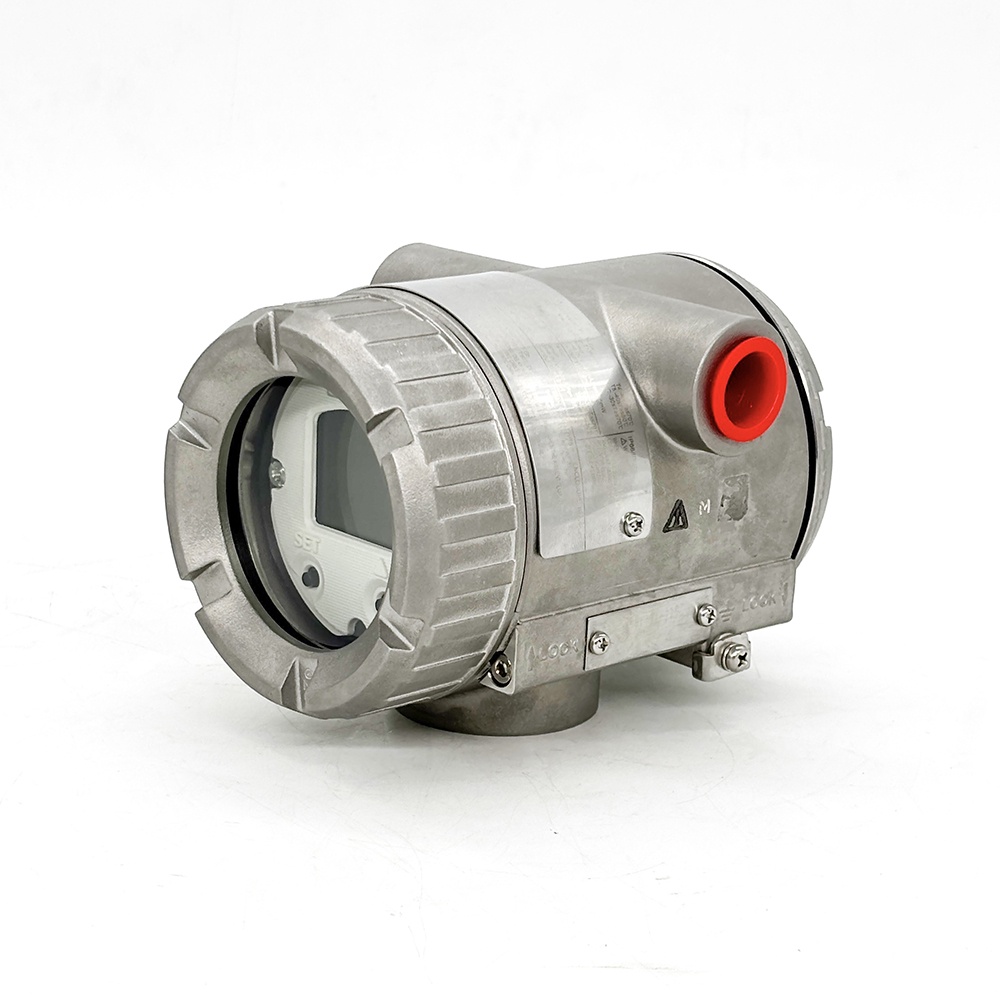

• Adopting a dual compartment on-site installation shell, effectively isolating electronic devices from wiring  erminals, preventing water vapor, moisture, or pollutants from entering, and improving environmental resistance;

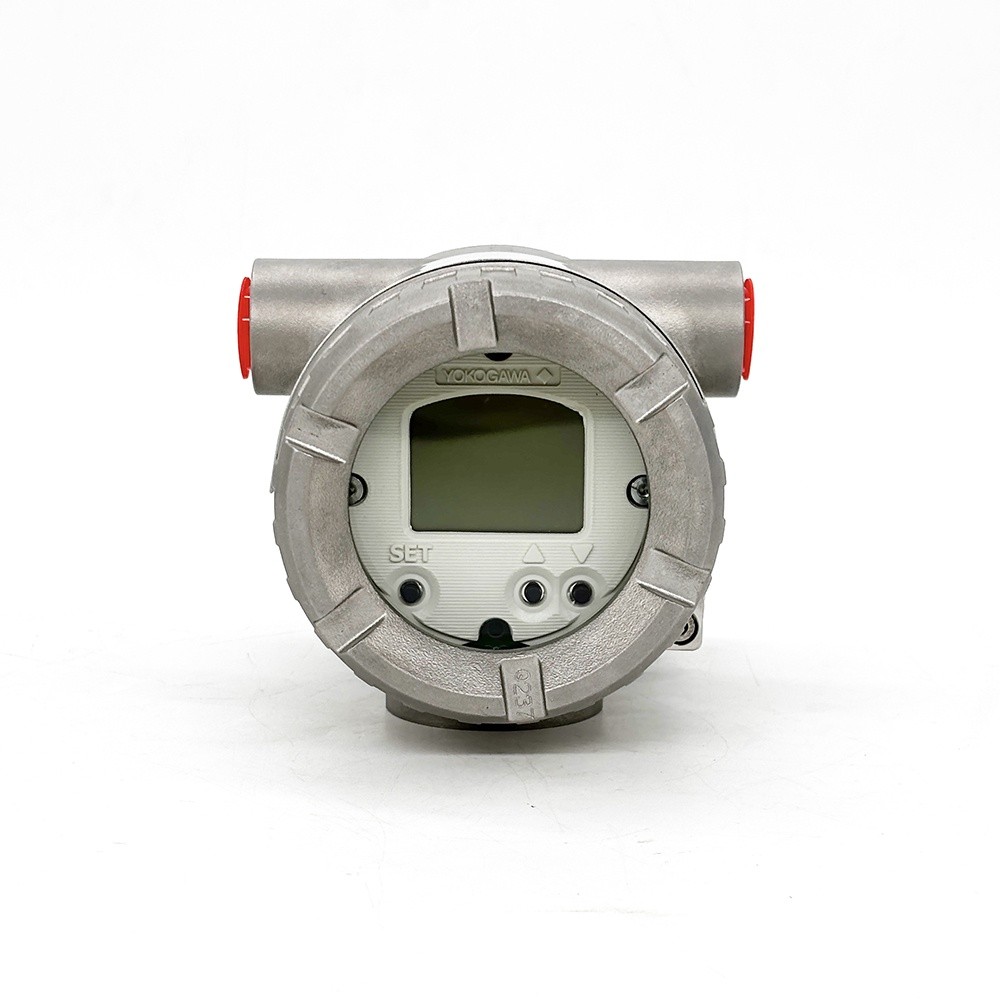

• Equipped with basic diagnostic functions, it can set local parameters through a display table for easy on-site  maintenance;




2.Flexible communication and input:

• Supports HART 7 or FOUNDATION ™  Fieldbus ITK 6 digital communication protocol, compatible with 4-20mA analog output signals;

• Single or dual sensor input options are available, with support for temperature difference measurement, average value calculation, and automatic backup of sensor faults in dual input mode;

3.High precision measurement capability:

• Supports advanced linearization of 21 industrial temperature sensors (such as thermistors, thermocouples, etc.);

• The analog-to-digital conversion (A/D) accuracy of the representative Pt100 sensor can reach 0.14 ° C, and the digital to analog conversion (D/A) accuracy of the output analog signal is 0.03%;

• The model with CM1 option can adjust the standard curve to match the actual RTD curve of the sensor, further eliminating errors;
