Yokogawa EJX630A In-Line Mount High Performance Gauge Pressure Transmitter,

›

‹

  • Yokogawa EJX630A In-Line Mount High Performance Gauge Pressure Transmitter,

›

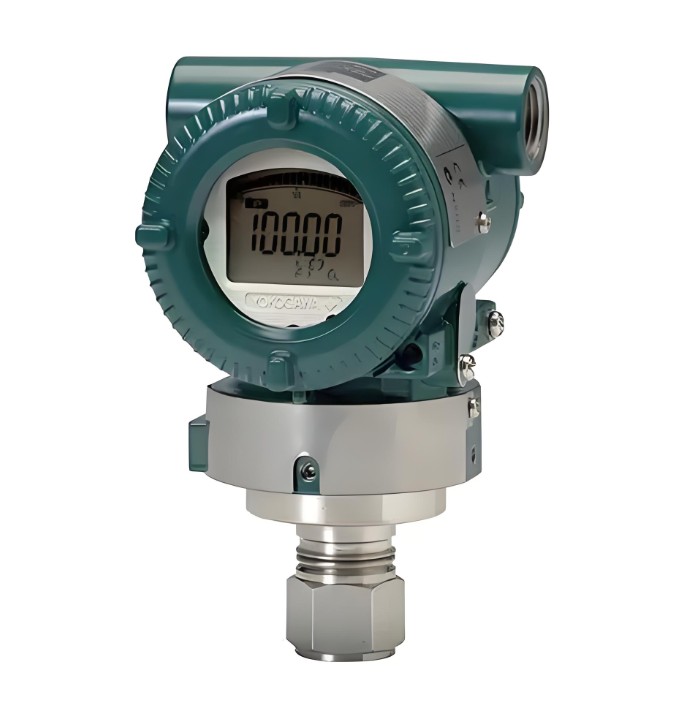

Yokogawa EJX630A In-Line Mount High Performance Gauge Pressure Transmitter,
EJX630A is a high-performance online installation gauge pressure transmitter from Yokogawa Electric Corporation's advanced EJX-a series, using proprietary DPharp digital sensor technology. It is designed for precise pressure measurement of liquids, gases, and vapors in harsh industrial environments.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Product Description

EJX630A  is a high-performance online installation gauge pressure transmitter from Yokogawa Electric Corporation's advanced  EJX-a series, using proprietary DPharp digital sensor technology. It is designed for precise pressure measurement of  liquids, gases, and vapors in harsh industrial environments.


Key Features

  • Ultra-High Accuracy: ±0.04% of span (optional ±0.025% for enhanced precision)

  • Exceptional Long-Term Stability: ±0.1% URL over 15 years, minimizing drift and maintenance

  • Fast Response Time: 90 ms for real-time process control

  • Safety Certified: SIL 2/3 certified by TÜV and Exida for safety-critical applicationsYokogawa Electric Corporation

  • Digital Sensing: Direct digital output eliminates analog-to-digital conversion errors for superior reliability

  • Multi-Protocol Communication: Supports HART 5/7, BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA

  • Advanced Diagnostics: Detects impulse line blockages or heat trace breakages

  • Local Parameter Setting (LPS): On-site configuration without additional toolsYokogawa Electric Corporation


Applications

  • Oil & Gas

  • Chemical & Petrochemical

  • Power Generation

  • Water & Wastewater

  • Pharmaceuticals

  • Food & Beverage


Measurement Type:Gauge Pressure
Accuracy:±0.04% (optional ±0.025%)
Stability:±0.1% URL / 15 years
Response Time:90 ms
Rangeability:Up to 200:1
Max Working Pressure:15,200 psi (105 MPa)
Output Signal:4-20mA DC with digital communication
Power Supply:10.5-42V DC
Protection Class:IP67
Certifications:SIL 2/3, ATEX, IECEx


ScreenShot_2026-04-28_113155_519



Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
