Yokogawa EJA210E Differential Pressure Transmitter with Remote Diaphragm Seal

›

‹

  • Yokogawa EJA210E Differential Pressure Transmitter with Remote Diaphragm Seal

›

Yokogawa EJA210E Differential Pressure Transmitter with Remote Diaphragm Seal
The EJA210E flange mounted differential pressure transmitter adopts single crystal silicon resonant sensor technology, which is suitable for measuring the liquid level and density of liquids that are prone to crystallization or precipitation. EJA210E converts the measured differential pressure into a 4-20mA DC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Product Description

The  EJA210E  flange mounted differential pressure transmitter adopts single crystal silicon resonant sensor technology, which is  suitable for measuring the liquid level and density of liquids that are prone to crystallization or precipitation.  EJA210E converts the measured differential pressure into a 4-20mA DC current signal output, which can measure,  display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self  diagnosis.


Main features

  1. Monocrystalline Silicon Resonant Sensor: Overload resistance, temperature drift resistance, and excellent      long-term stability

  2. Compact and lightweight design: Weight is only half of traditional models

  3. Local Parameter Setting (LPS): Parameters can be adjusted locally without a handheld programmer.

  4. Built-in Fault Diagnosis: Error codes are displayed on the meter to facilitate quick maintenance and      troubleshooting.

  5. Supports multiple maintenance platforms: such as FieldMate, smartphone APP (via HART)

  6. Extended calibration interval: High stability helps reduce maintenance costs



Product Type：Remote Diaphragm Sealed Differential Pressure Transmitter
Measurement Principle：DPharp Silicon Resonant Digital Sensing
Accuracy Grade：±0.055%
Output Signal：4~20mA DC, HART 7 digital communication
Operating Temperature：-40℃～85℃
Process Medium Temperature：-40℃～120℃
Maximum Static Pressure：Up to 32MPa
Wetted MaterialStandard 316L stainless steel, with optional Hastelloy C and tantalum materials, suitable for highly corrosive        media

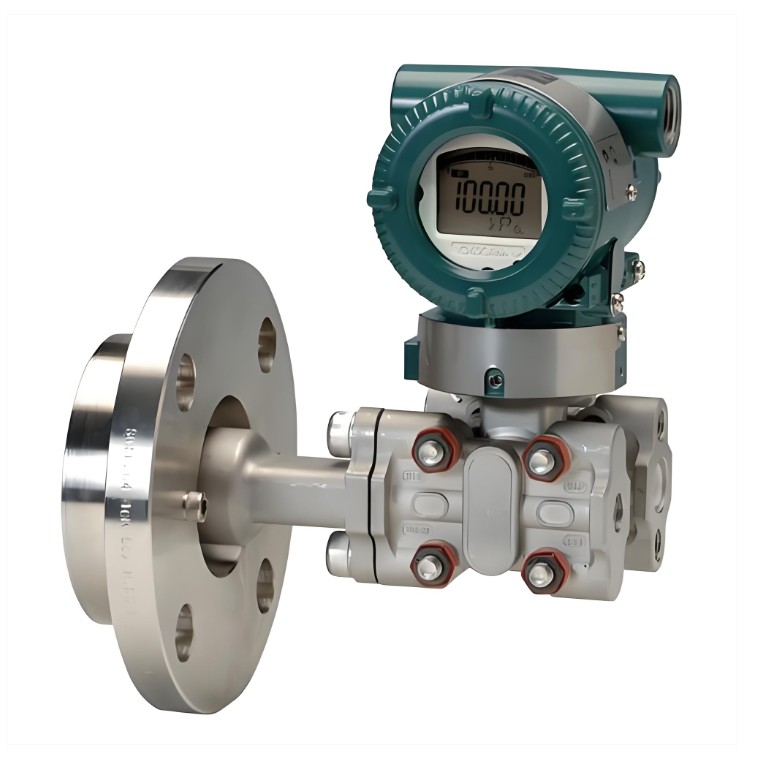

ScreenShot_2026-04-30_111628_616



Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
