YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA

›

‹

  • YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA
  • YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA
  • YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA
  • YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA

›

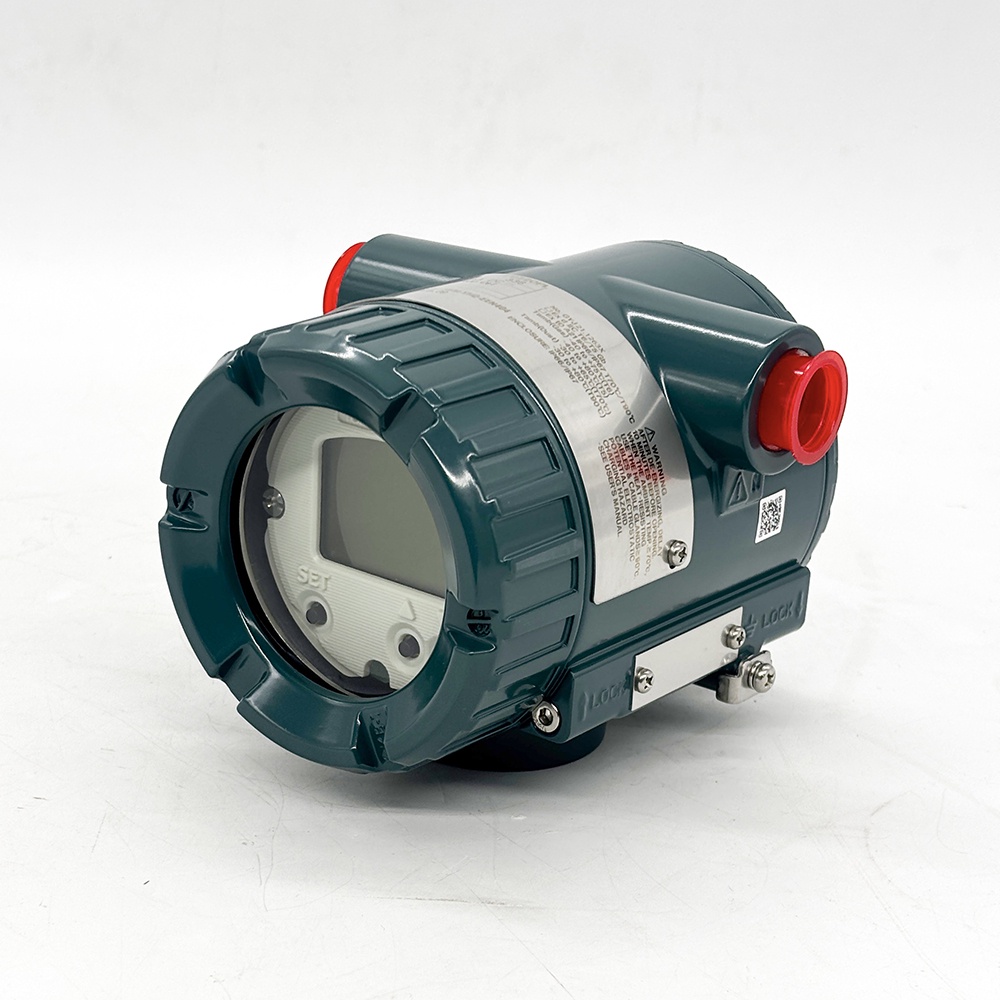

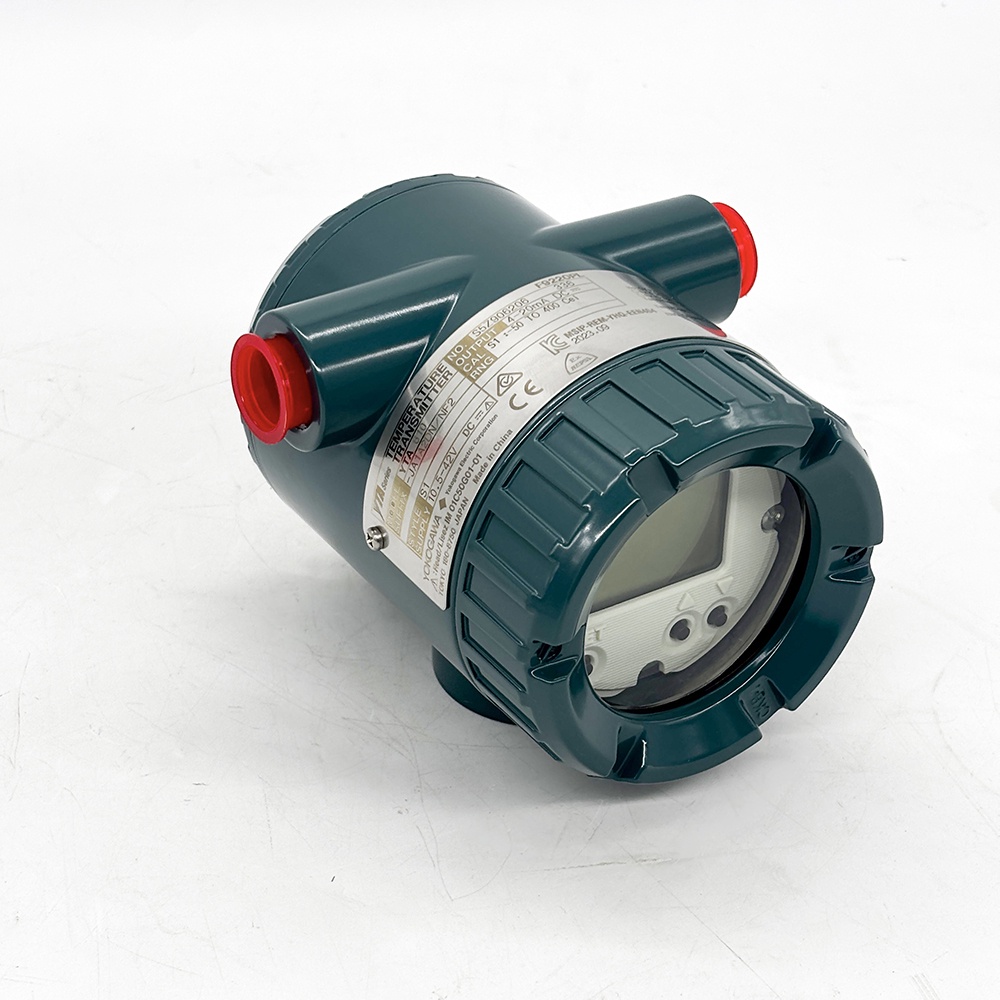

YTA610 High Precision Temperature Transmitter RTD/Thermocouple Input With 4-20mA
The YTA610 is a high-precision, field-mount temperature transmitter from Yokogawa, designed for reliable industrial temperature measurement Yokogawa Electric Corporation. It accepts diverse sensor inputs, converts them to 4-20mA analog or digital fieldbus signals, and features advanced dual-input functionality, robust housing, and industry-standard communication protocols.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Product description

The Yokogawa  YTA610  is a high-performance, field-mount temperature transmitter designed for stable and accurate temperature measurement in  industrial processes. It supports multiple sensor inputs, advanced communication protocols, and dual-input  functionality, making it ideal for oil & gas, petrochemical, power generation, and general industrial  applications.


Key Features

  • Supports RTD, thermocouple, resistance, and mV inputs

  • Dual-input design for differential, average, or backup measurement

  • High accuracy and long-term stability under harsh conditions

  • Compatible with HART 7 and FOUNDATION Fieldbus communication

  • Built-in self-diagnostics for sensor and module fault detection

  • Rugged IP66/IP67 enclosure for field installation

  • SIL2 certified for functional safety applications

  • ATEX, IECEx, FM, CSA and CE approved for hazardous areas


Applications

  • Oil and gas processing

  • Petrochemical and chemical plants

  • Power generation facilities

  • Metallurgy and heating systems

  • Industrial automation and process control


Accuracy：±0.14°C
Response Time：HART: ~0.5 sec (single input), ~0.8 sec (dual input)
Temperature Range：-40°C to 85°C
Output Signals：4-20mA DC + HART 7 digital communication
Power Supply：10.5 ~ 42 V DC
Shell design：Dual compartment structure
Protection level：IP67
Explosion Protection:ATEX, IECEx, FM, CSA (Intrinsically Safe & Flameproof)

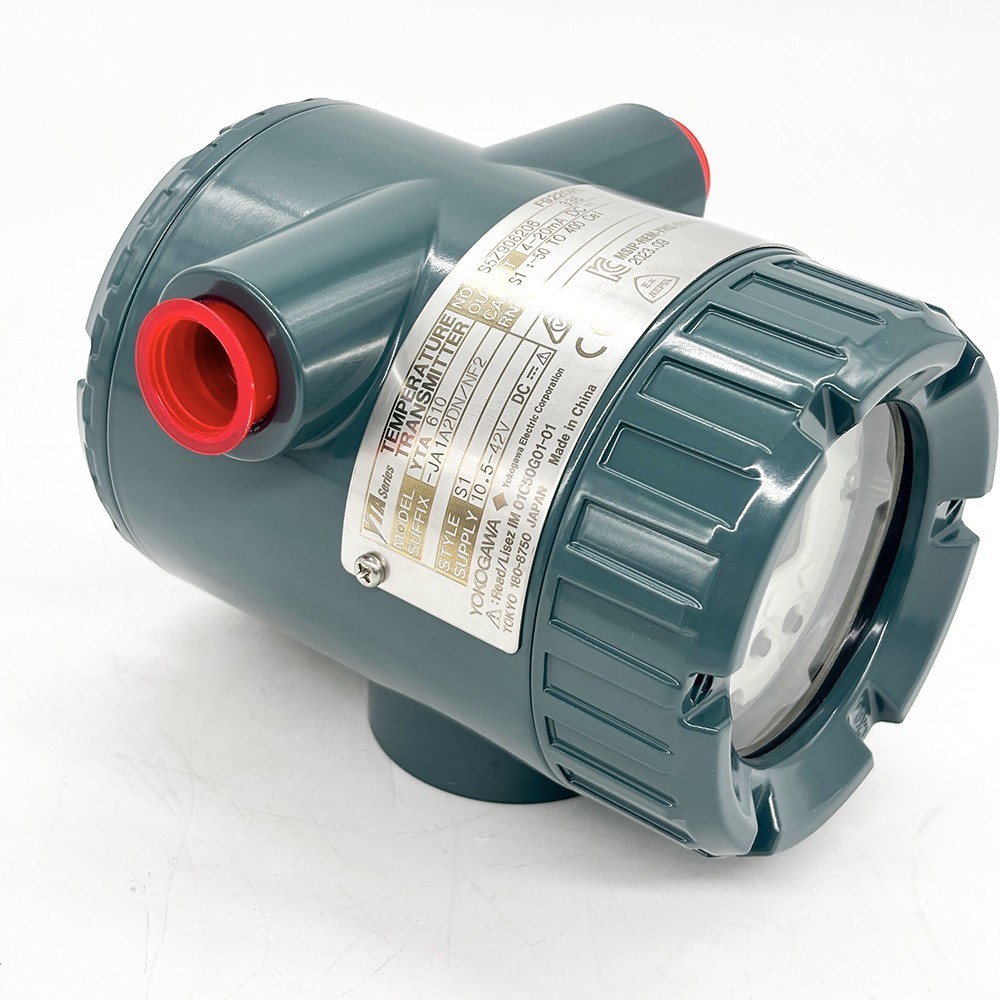

IMG_8087

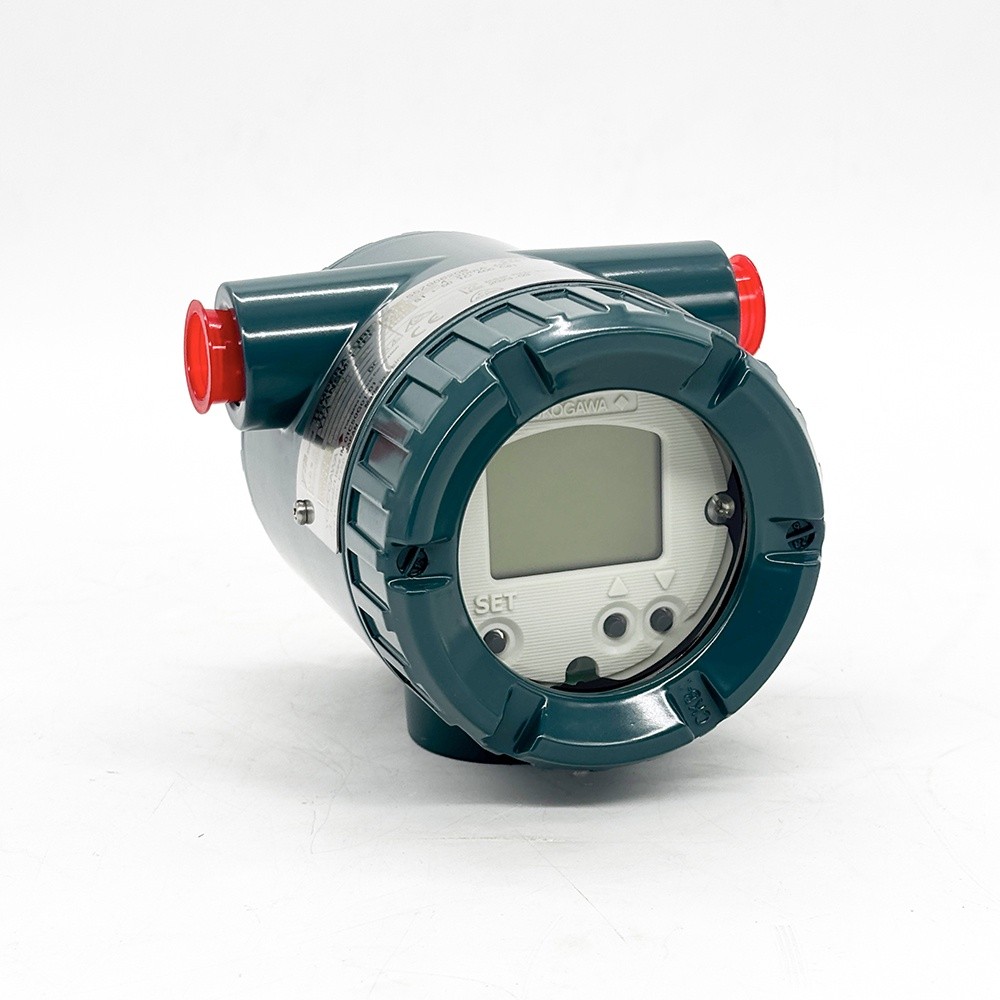

IMG_8083



Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
