Product Description
Product Description

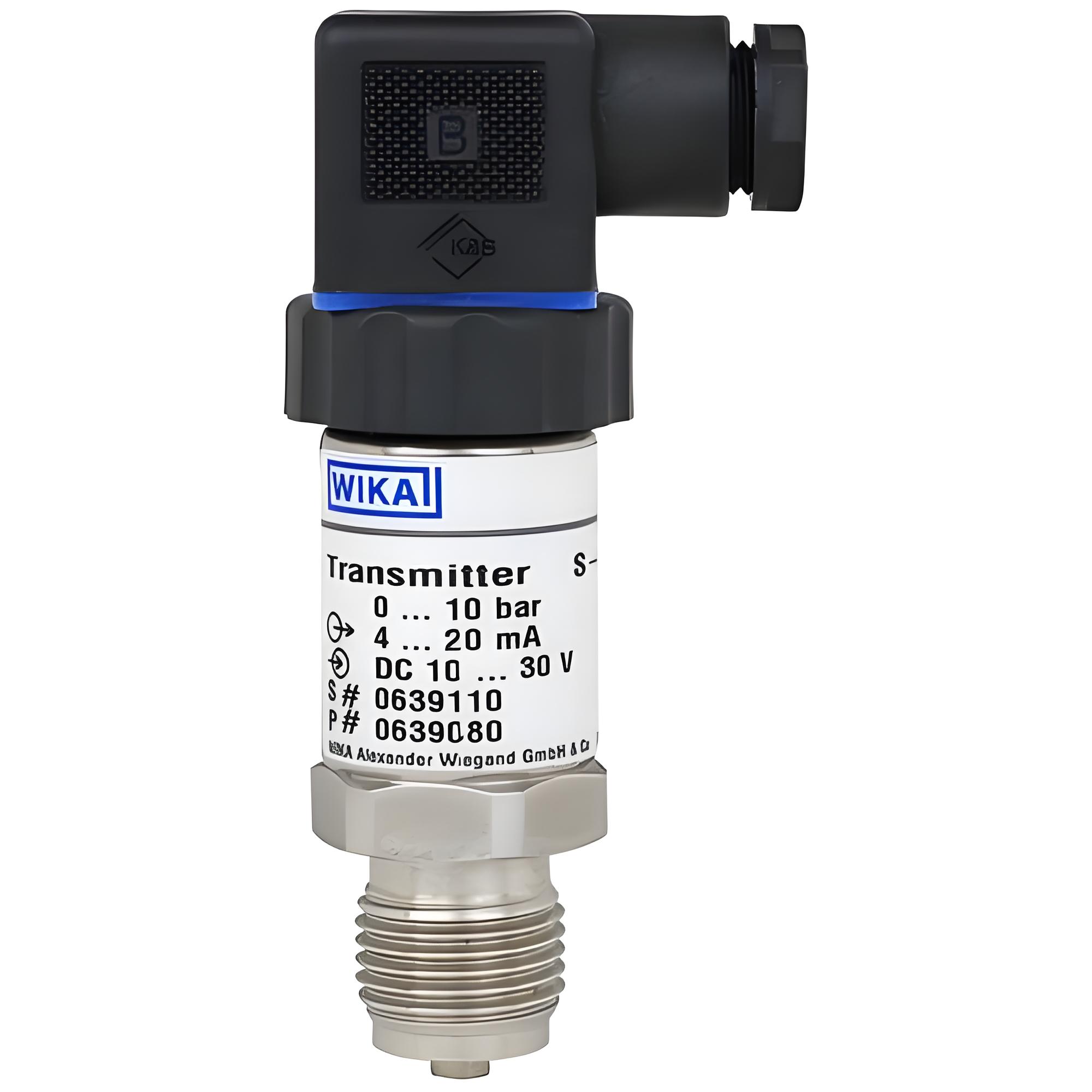

The S-20 pressure transmitter has a wide range of applications and can meet the requirements of demanding tasks and harsh environments. The measurement range is 0 0.04 to 0 160 MPa [0... 5.8 to 0... 23200 psi], can be combined with various output signals, electrical connections, and process connections. These configuration options offer over 1 billion versions, providing ample room for customization. S-20 is also suitable for critical industrial applications and can reliably operate under high temperature, vibration, or corrosive media conditions.
The pressure measurement of S-20 is particularly accurate and reliable, with three accuracy levels to choose from. The temperature can be adjusted to+4 ° C,+40 ° C,+60 ° C, and+80 ° C [+39 ° F,+104 ° F,+140 ° F,+176 ° F] to minimize temperature errors.
S-20 adopts mature technology that has been tested and validated through practical experience. It has up to 100 million load cycles and long-term stability of less than 0.1%, providing accurate data for processes and equipment sustainably. In addition, regular reviews can permanently ensure the highest quality standards.
Product Functional
High precision, small temperature error, optional temperature adjustment;
Rich in categories, available from 1 piece or more;
Time tested technology;
Special media and special models;
Extremely robust & shock-resistant design;
High overload protection capability;
Suitable for almost all industrial media;


Message
Products Recommended
Chat Online
Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.
Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.
| Pressure Types | Gauge, absolute, negative pressure, differential pressure |
|---|---|
| Measuring Range | From low differential pressure to high pressure ranges up to 100 MPa, depending on model |
| Output Signals | 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options |
| Accuracy | Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS |
| Process Connection | M20 x 1.5, G1/4, G1/2, NPT and customized thread connections |
| Wetted Materials | Stainless steel, 316L diaphragm and corrosion-resistant sealing options |
| Media | Water, oil, gas, air, steam and compatible liquid or gas media |
| Applications | Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems |
A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.
Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.
Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.
Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
