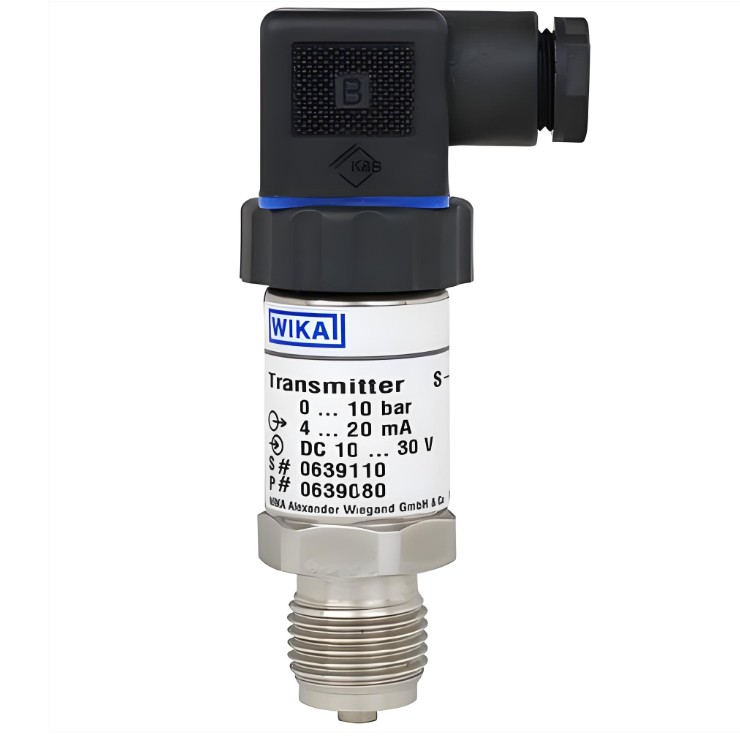

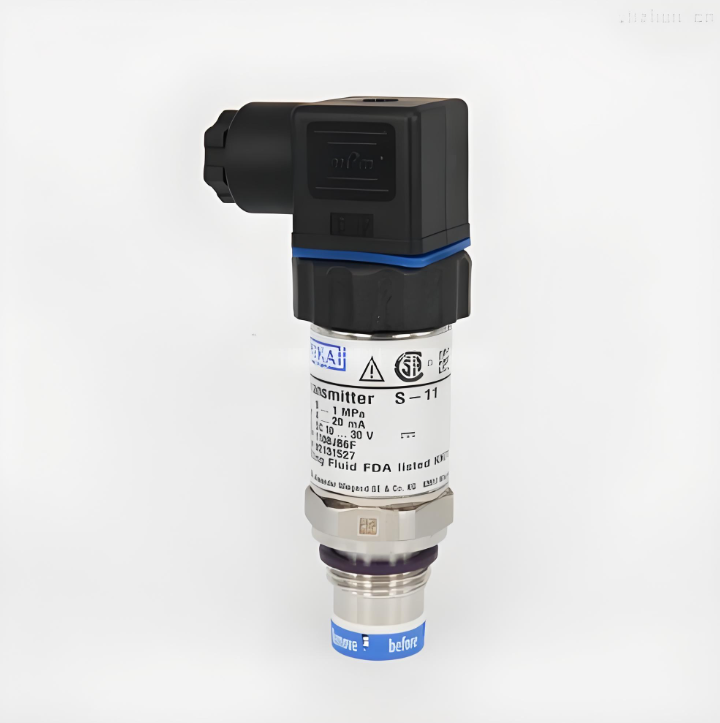

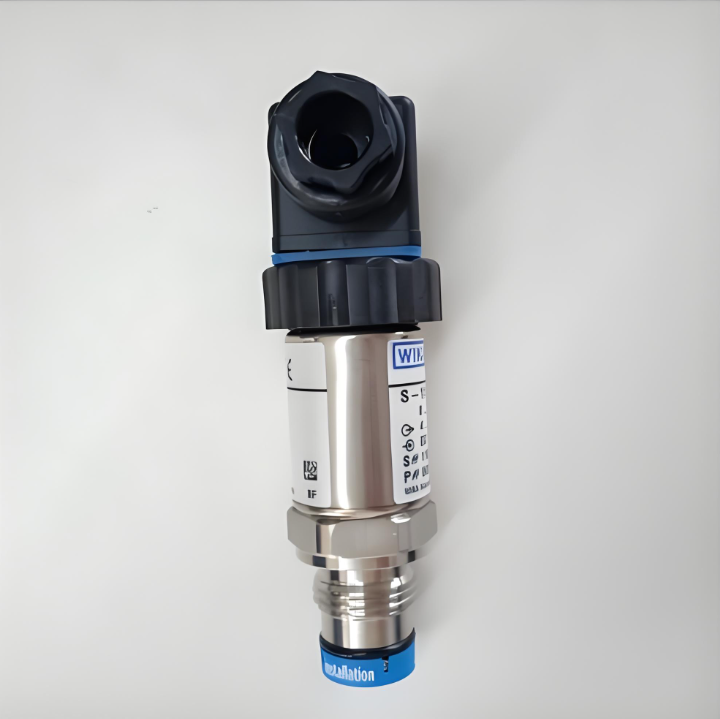

Product Description

The S-11 pressure transmitter is equipped with a flat embedded diaphragm and is specifically designed to measure media that can block pressure channels in traditional process connections, such as viscosity, paste like, adhesive, crystallization, particle containing, and contaminated media.

This model of transmitter adopts optimized design and uses a flat embedded diaphragm process connector, which integrates the cleanliness of the liquid receiving diaphragm in the process connector. In this way, this model of transmitter achieves low maintenance and fault free pressure measurement even when used in critical applications where media is frequently replaced.

The main features of the S-11 transmitter include high precision, durability, high-quality manufacturing, and highly flexible configuration.

Core functional characteristics

• Flush diaphragm (dead-space-free); fully welded 316L stainless steel wetted parts; non-clogging & easy to clean；

• High accuracy up to ±0.125% BFSL; wide range from vacuum to 8000 psi; fast response & long-term stability；

• Vibration/shock resistant; high ingress protection (IP65/IP67/IP68/IP6K9K); media temp up to 150°C (cooling element available)；

• Standard 4-20 mA (2-wire); optional 0-10 V/1-5 V; full process/electrical connection options (G thread, DIN, M12)；

• FDA 21 CFR 178.3750 food-grade fill fluid; hygienic 3-A approved; suitable for special media (O₂, H₂)；

• 5× overpressure protection; low drift <0.1%/year; 100M pressure cycles; long service life；
