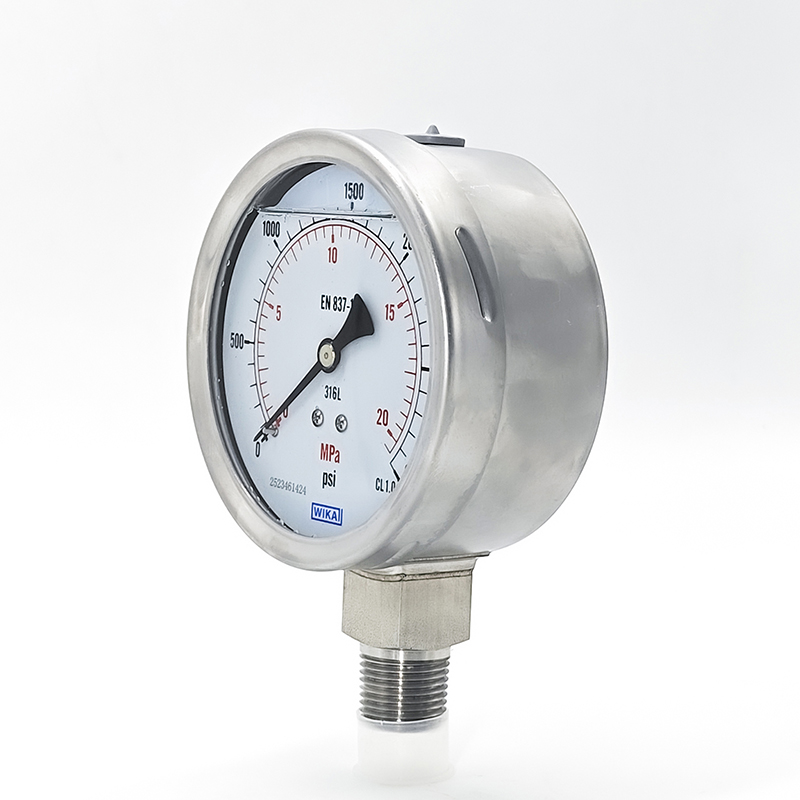

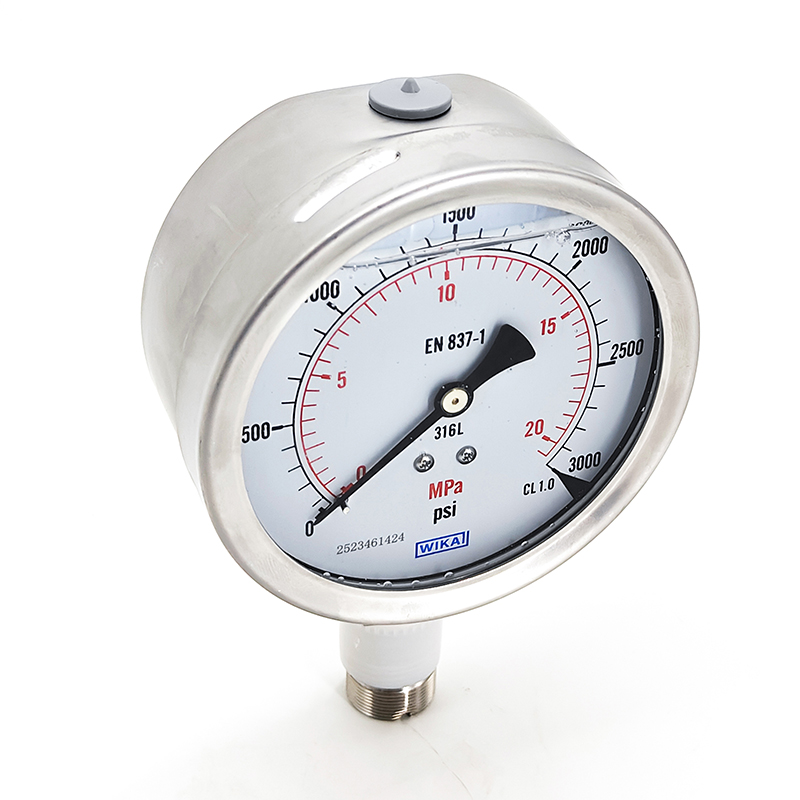

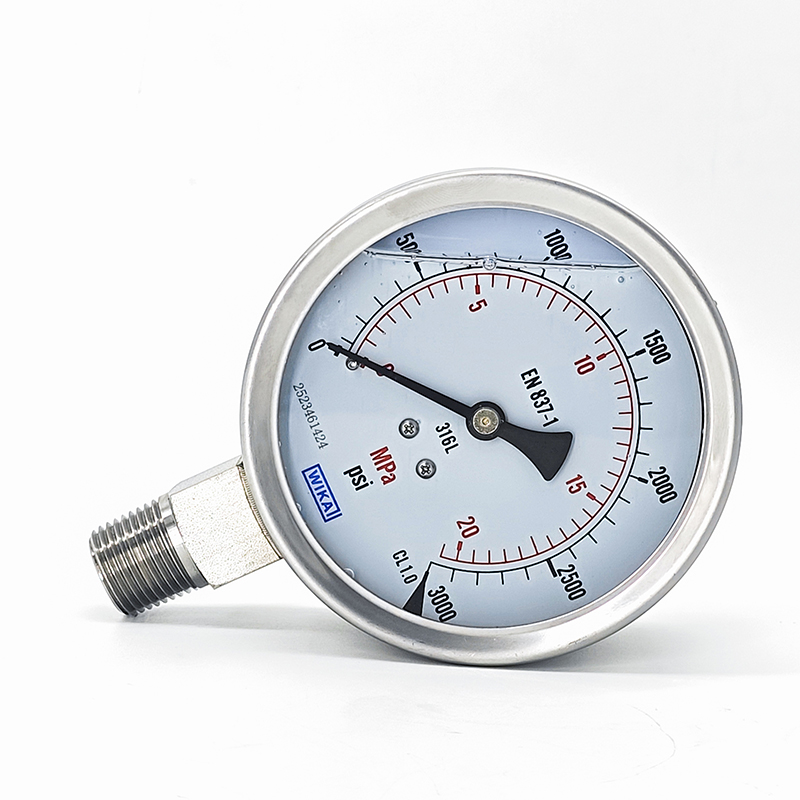

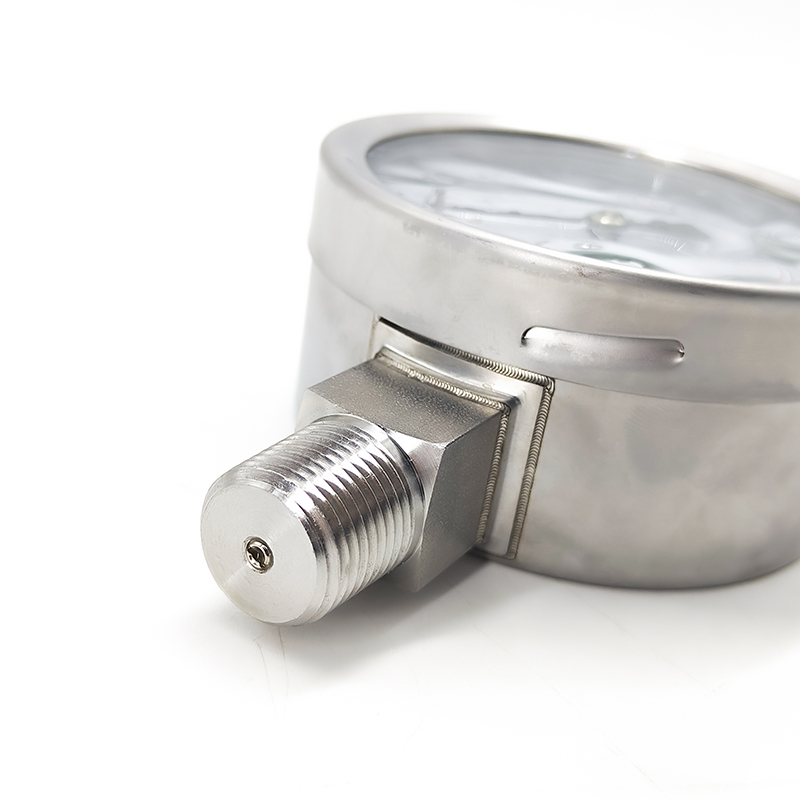

WIKA Mechanical Boden Tube Pressure Gauge High Precision Pressure Gauge
The housing of the liquid filled mechanical Boden tube pressure gauge is made of stainless steel, and the liquid receiving component is made of copper alloy To ensure safety performance, the instrument is equipped with an anti spray and pressure relief device. In the event of a malfunction, overvoltage can be dissipated and released from here.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Description

This high-quality      Bourdon tube pressure gauge    has been designed especially for the process industry.The use of high-quality stainless steel materials and the robust  design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable  for liquid and gaseous media, also in aggressive environments.Scale ranges of 0 ... 0.6 to 0 ... 1,600 bar [0 ... 10  to 0 ... 20,000 psi] ensure the measuring ranges required for a wide variety of applications.

WIKA manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. As a safety function, this instrument has a blow-out device with blow-out plug on the back of the case. In the event of a failure, overpressure can escape there.


Special Features

  • Excellent load cycle stability and shock resistance

  • With case filling  for applications with high dynamic pressure loads and vibrations

  • Completely from stainless steel

  • Scale ranges from 0 ... 0.6 to 0 ... 1,600 bar or 0 ... 10 to 0 ... 20,000 psi

  • QR code on dial links to instrument-specific information


Applications

  • For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive      environments

  • Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater      technology

  • Machine building and general plant construction



Accuracy level:CL1.6‌/CL1.0/CL0.5
Dial diameter:50 mm（2"）‌、‌63 mm（2½"）‌、‌100 mm（4"）‌、‌160 mm‌ ‌
Shell material:Stainless steel/copper alloy/plastic
Protection level:IP65
Fill liquid:Silicone oil or glycerin
Connection method:

Radial or axial

Ambient temperature:-40 ℃ ~ +60 ℃ ‌
Medium temperature:+60 ℃

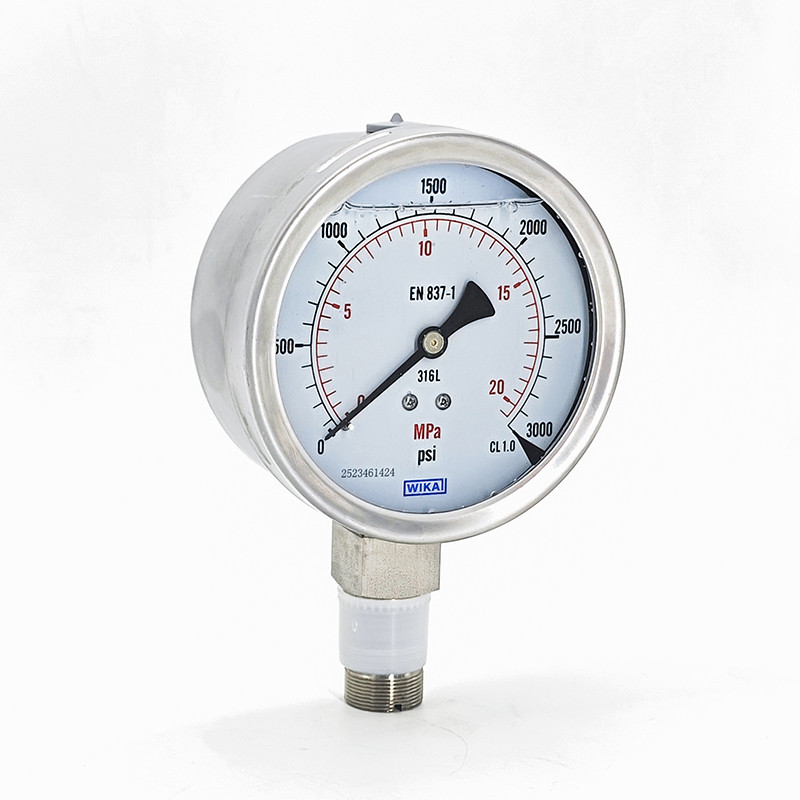

1 (3)

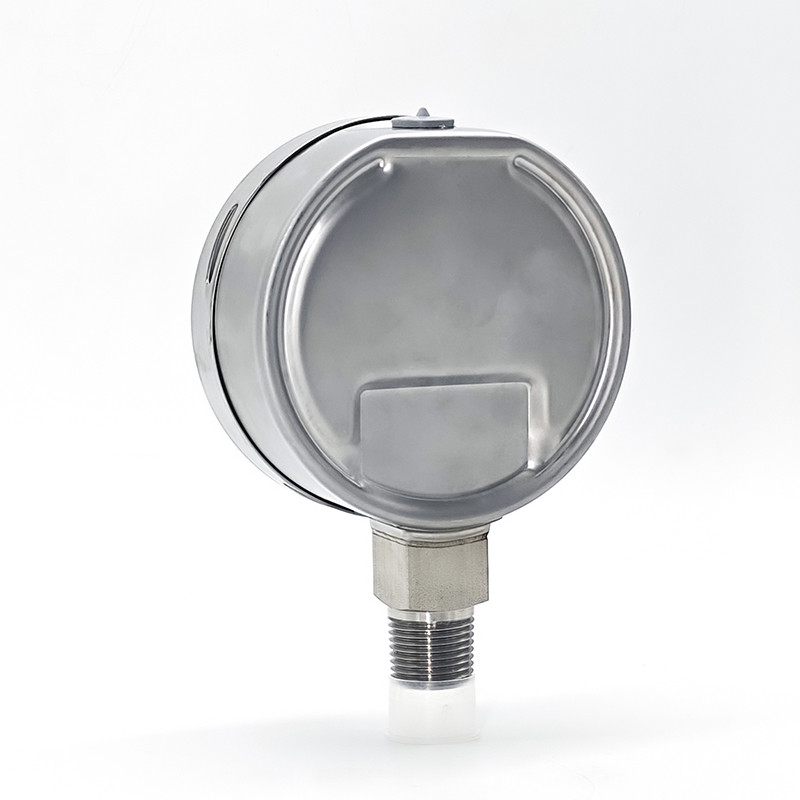

1 (9)
