Product Description

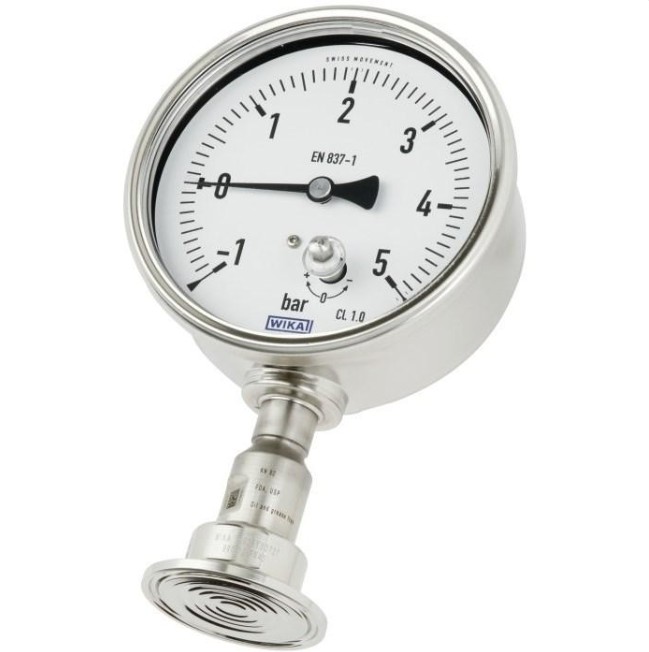

DSS22P  is an integrated diaphragm sealed pressure gauge designed by WIKA specifically for high hygiene scenarios such as  pharmaceuticals, food and beverages. Its core advantages include chuck connection, CIP/SIP compatibility, and full  hygiene grade materials.

The diaphragm sealing system is used to protect pressure measuring instruments from corrosive, viscous, crystalline,  corrosive, high viscosity, environmentally harmful or toxic media. A diaphragm made of stainless steel is used for  separating from the medium. The pressure is transmitted to the measuring instrument through the system filling fluid  inside the diaphragm sealing system.

DSS22P meets all the requirements of the pharmaceutical industry. The special applicability of drugs depends on the  fact that the measuring points can be cleaned during installation.

Core Functionality

1. Fully hygienic design: The liquid receiving parts are made of 316L stainless steel, with no threaded dead corners,      a fully welded structure, and comply with EHEDG and 3-A standards.

2. CIP/SIP compatibility: Can be cleaned/sterilized online, resistant to high temperatures (150 ℃), does not require      disassembly WIKA.

3. Quick disassembly of chuck: 1 minute disassembly and assembly, convenient for membrane replacement and cleaning,      reducing maintenance costs.

4. Media isolation: Diaphragm protection for core, compatible with corrosive, viscous, and crystalline media,      extending lifespan.

5. On site adjustable zero: external zero adjustment design, no disassembly calibration, suitable for clean area      operation.

Special Features

1. Case and wetted parts in hygienic design.

2. Suitable for SIP and CIP.

3. The fixture connection is easy to open, making it convenient for cleaning and replacing seals.

4. Easily set zero point.

Applications

1. Hygienic pressure measurement in the pharmaceutical industry.

2. Mechanical pressure display on pipelines, bioreactors, fermenters and vessels.

3. Pressure/vacuum monitoring during cleaning by CIP and SIP processes, as well as sterilisation and pressure      testing.

4. For gases, vapour; liquid, pasty, powdery and crystallising media.
