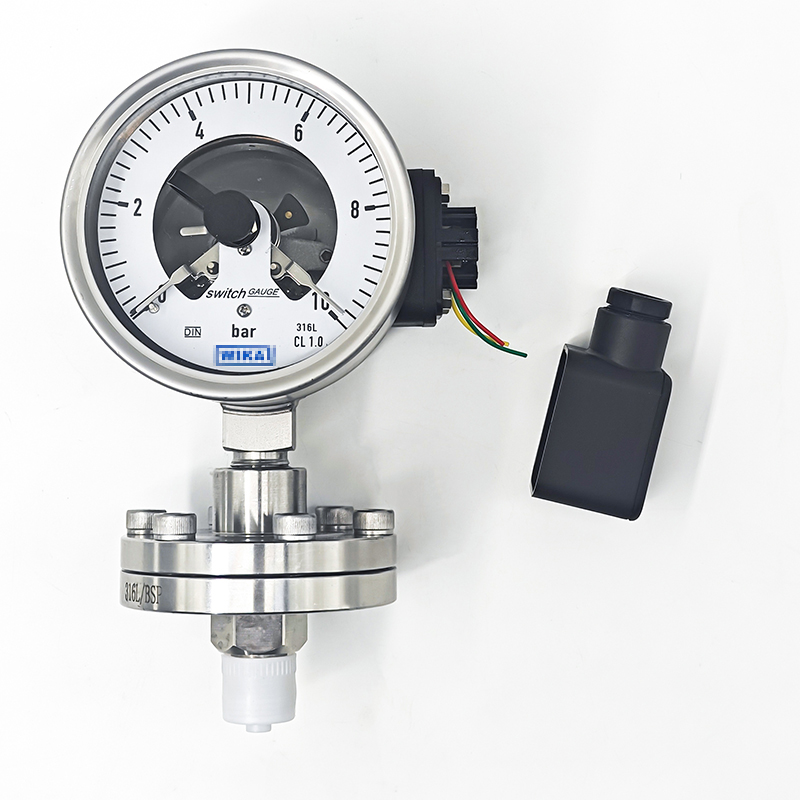

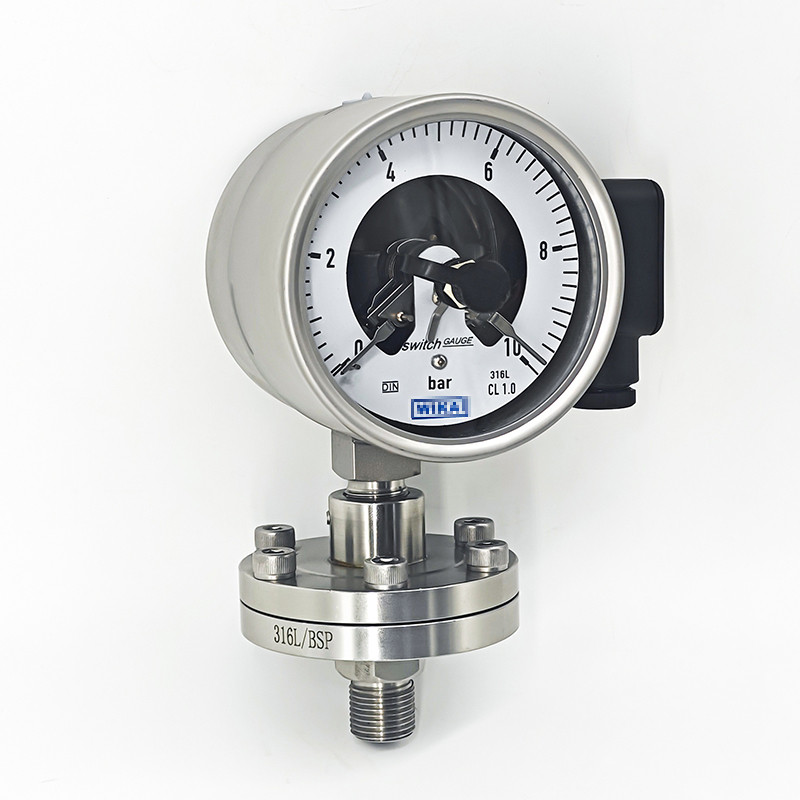

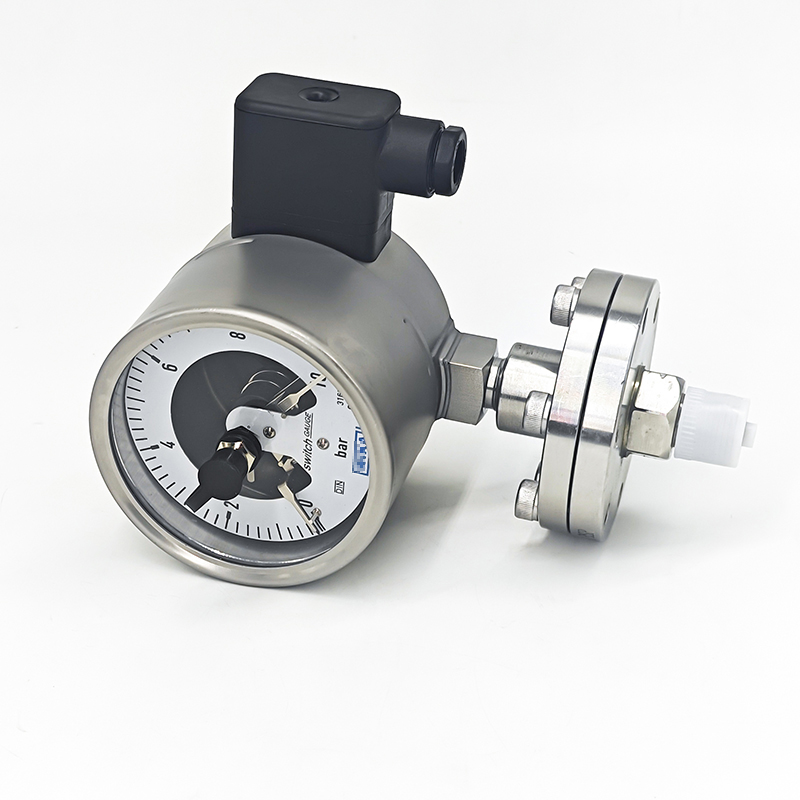

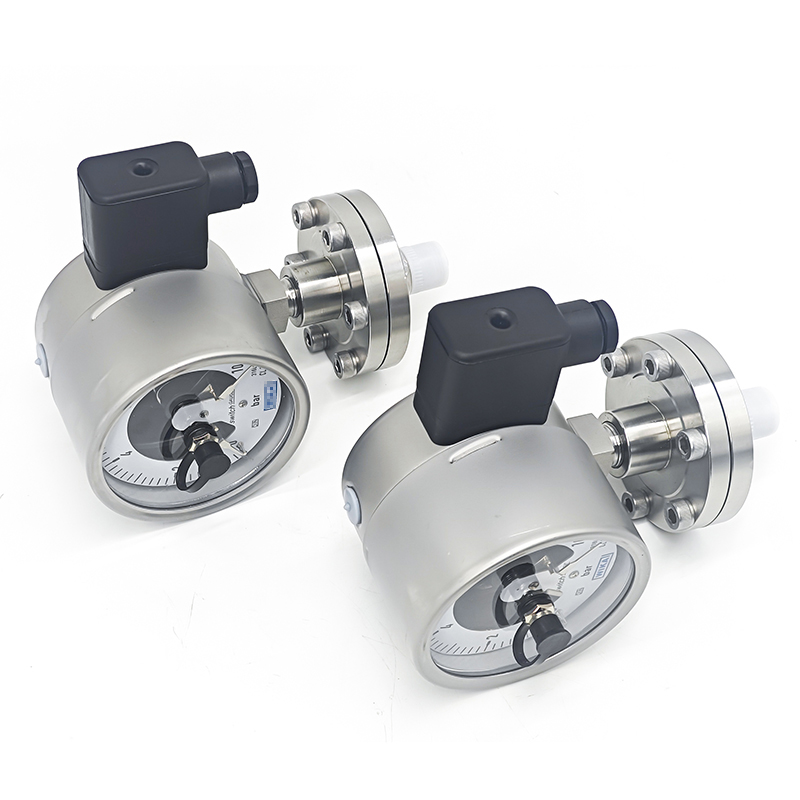

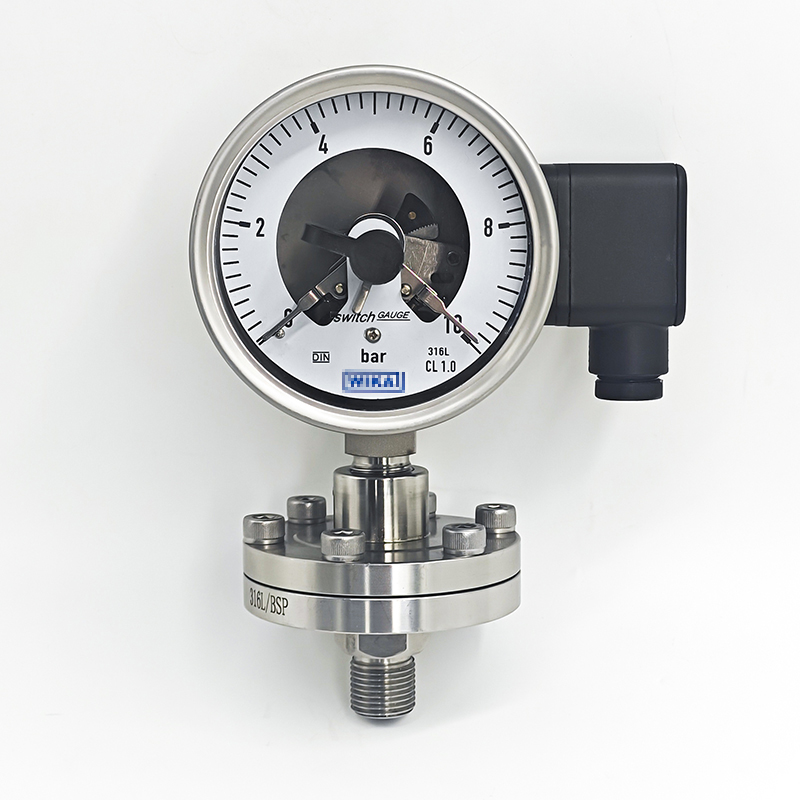

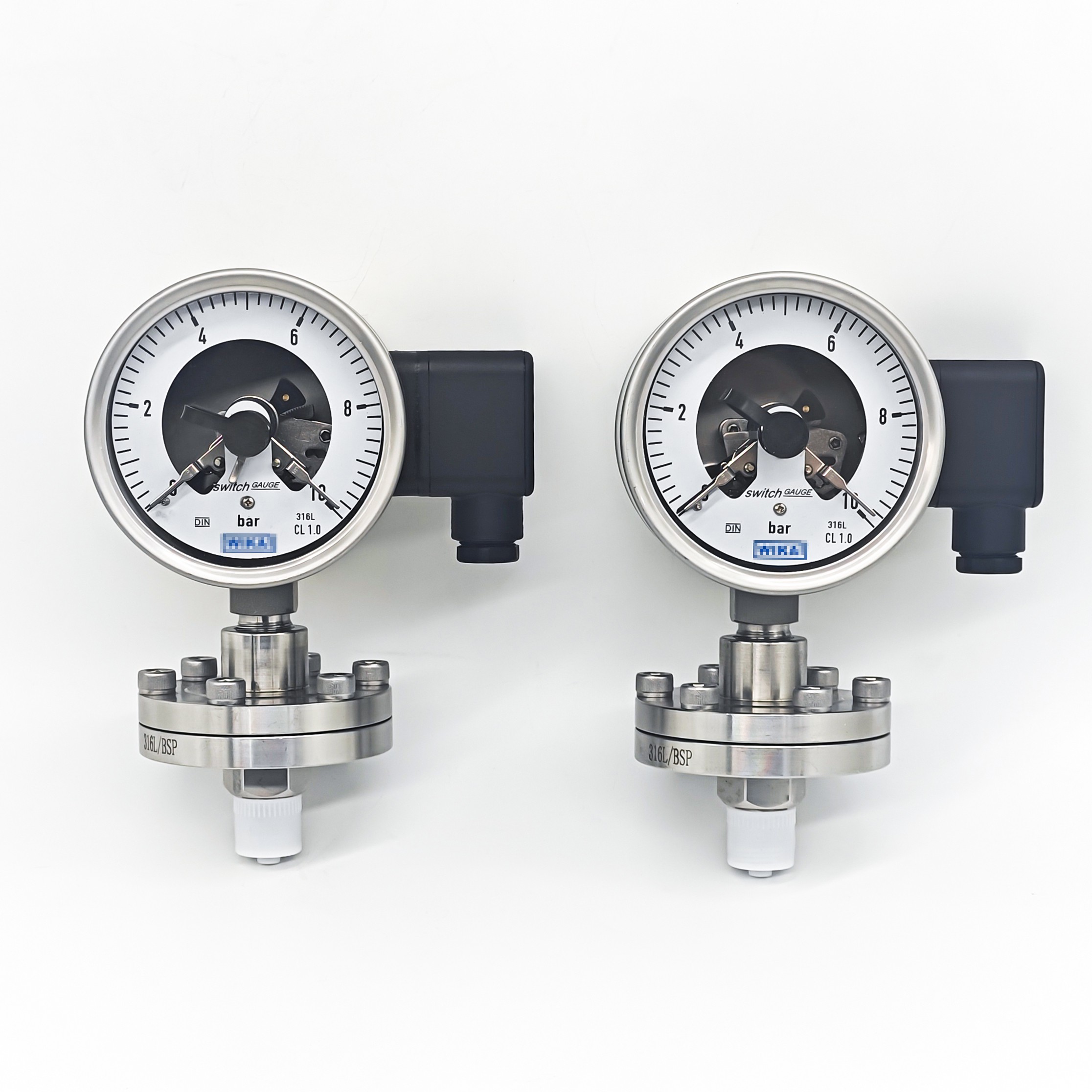

Product Description

The switch electrical contact not only includes multiple electrical contacts, but also can set a single set value.  When the actual value pointer exceeds or falls below the set value, the electrical contact will switch.

This model of pressure gauge is manufactured according to DIN 16085 standard and meets all relevant standards (such as  EN 837-1) and safety requirements of specifications. It can be fully used for on-site measurement of working pressure  of high-pressure vessels. Switching electrical contacts include magnetic assisted electrical contacts, reed resistance  chain electrical contacts, inductive electrical contacts, and electronic electrical contacts.

The switch electrical contact (electronic electrical contact for alarm) can connect and disconnect the electrical  control circuit according to the pointer position of the instrument. The switch electrical contacts are adjustable  within the full range (see DIN 16085). Usually, electrical contacts are installed under the dial, with only a few  installed above the dial. The instrument pointer (actual value pointer) can rotate freely throughout the entire range,  regardless of the setting.

Product  Features

• Under high dynamic pressure loads or vibration conditions, a liquid filled case can also be selected;

• Provide instruments with inductive electrical contacts that can be used in hazardous areas;

• Electric contact instrument, suitable for PLC applications;

• Optional safety type with solid front panel;

• By scanning the QR code on the dial, specific product parameter information can be obtained;

Product Advantages

1. High reliability and long lifespan: The electric contact signal pin is equipped with an adjustable magnetic steel,      which enhances the contact suction force using the principle of magnetic assistance, making the contact move      quickly and reliably, and effectively eliminating arcs. This design significantly enhances the anti-interference      ability of the instrument in vibration or pressure pulsation environments, extending its service life.

2. Flexible switch configuration: Each instrument can be equipped with up to 4 switch contacts, and users can set      single or multiple settings as needed to achieve complex control logic.

3. Wide adaptability:

   ~Multiple types of electrical contacts: Provides various electrical contact options such as magnetic assisted, inductive, and electronic. Among them, magnetic assisted and inductive electrical contacts comply with ATEX certification and can be used in hazardous areas; Electronic electrical contacts are suitable for direct      connection to PLC (Programmable Logic Controller).

   ~Rechargeable case option: A liquid filled case is available, suitable for harsh environments with high dynamic pressure loads or strong vibrations, ensuring stable pointers and clear readings.

   ~Sturdy structure: The instrument is manufactured according to DIN 16085 standard and complies with relevant safety standards such as EN 837-1, fully suitable for on-site measurement of working pressure of high-pressure vessels.

4. Clear setting and reading: The instrument pointer (indicating the actual pressure value) can rotate freely across  the full range. The set value pointer can be adjusted through the window on the dial, making the setting intuitive  and convenient.
