Product Description

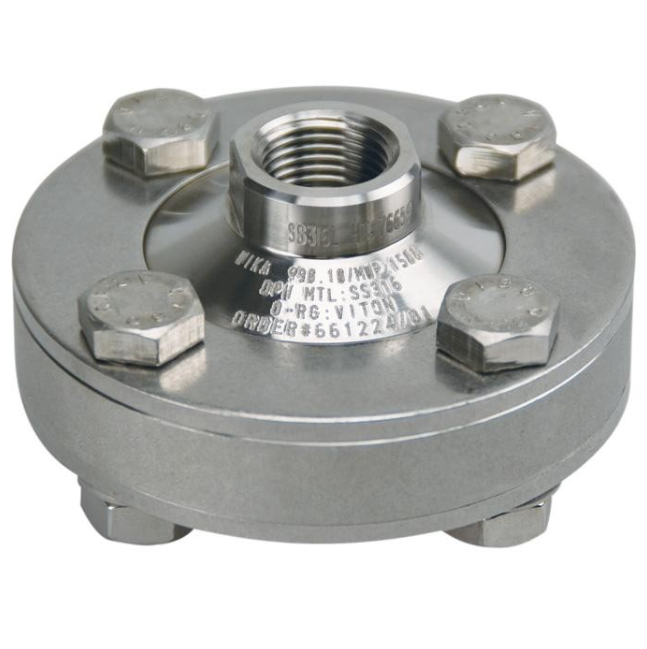

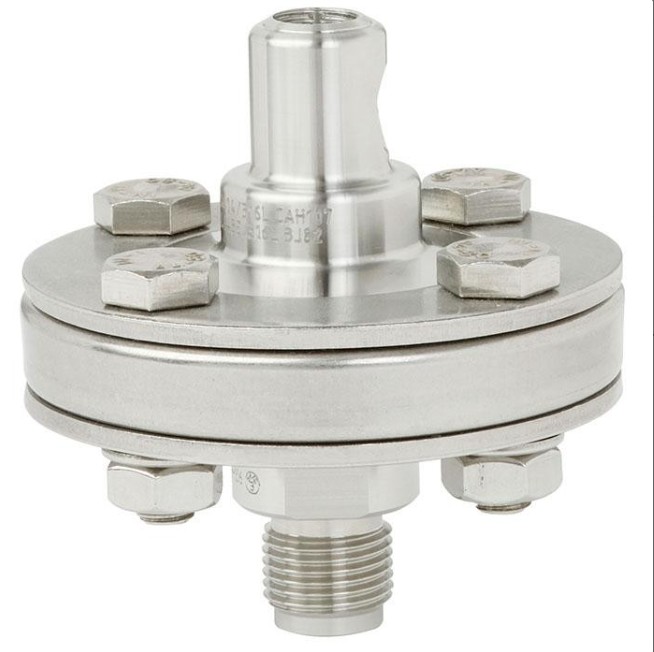

The  990.10  diaphragm seal adopts a threaded design and threaded connection, suitable for various application fields. The lower  body can be replaced without modifying the diaphragm sealing system. By using this diaphragm seal, it can cover a high  pressure range of up to 250 bar. Diaphragm seals can be installed directly onto measuring instruments, and for high  temperatures, they can be installed through cooling elements or flexible capillary tubes.

Special Features

• Process and thread connection.

• Version with internal diaphragm, with diaphragm seals screwed together.

• Multiple process connections and materials to choose from.

• Flushing connections optionally available.

Key Features

• High Pressure Rating: Up to 250 bar, ideal for heavy-duty industrial processes.

• Versatile Threaded Connection: G½/G¼/NPT, direct or capillary mounting.

• Extreme Temperature Resistance: -90°C to +400°C for hot/cold media.

• Corrosion-Resistant Wetted Parts: 316L, Hastelloy, Titanium & coatings.

• Easy Maintenance: Replaceable lower body without system disassembly.

• Isolates Harsh Media: Protects gauges/transmitters from corrosive/toxic fluids.

Applications

• For aggressive, hot, corrosive, environmentally hazardous or toxic media.

• Process industry.
