Product description

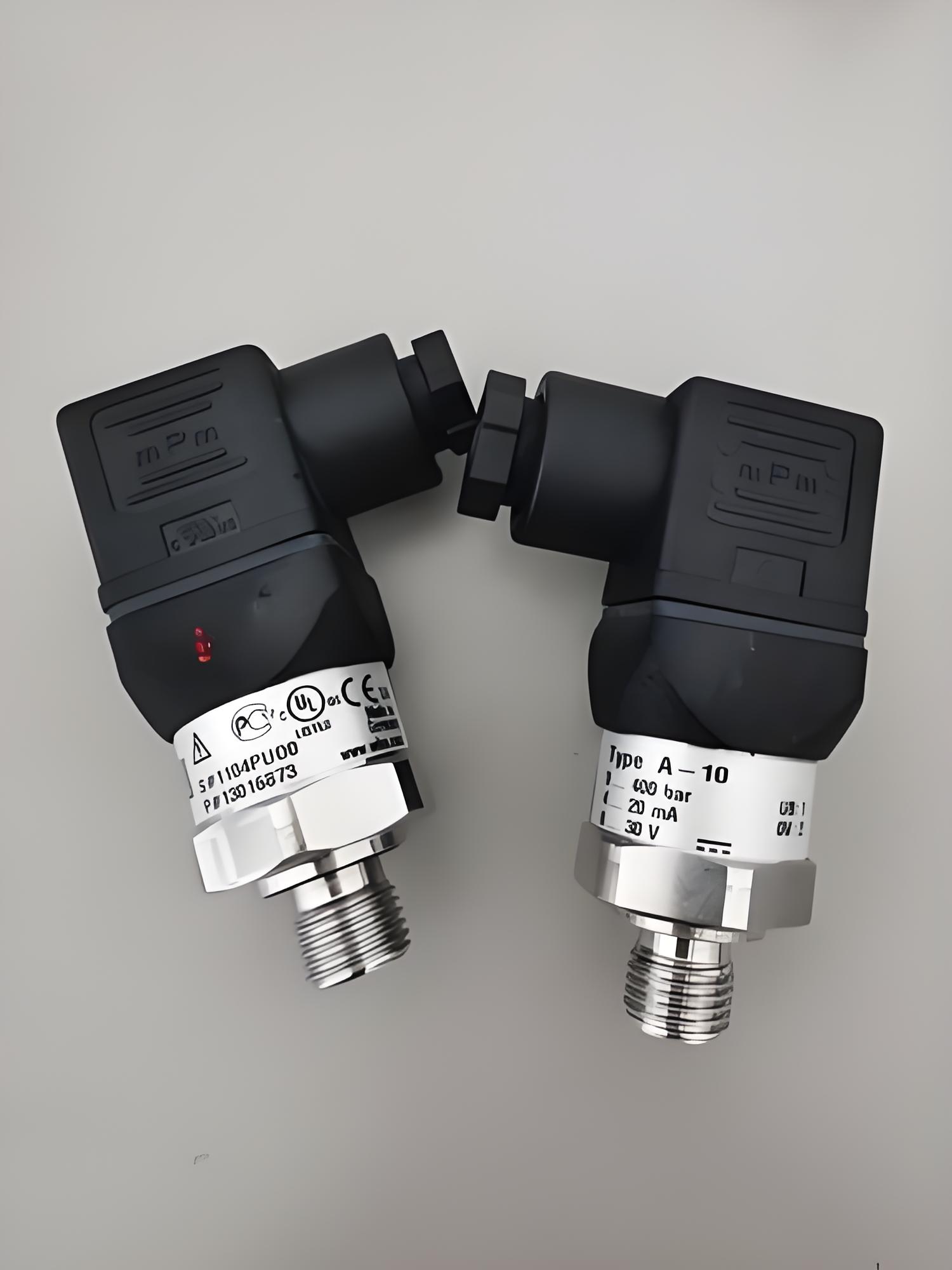

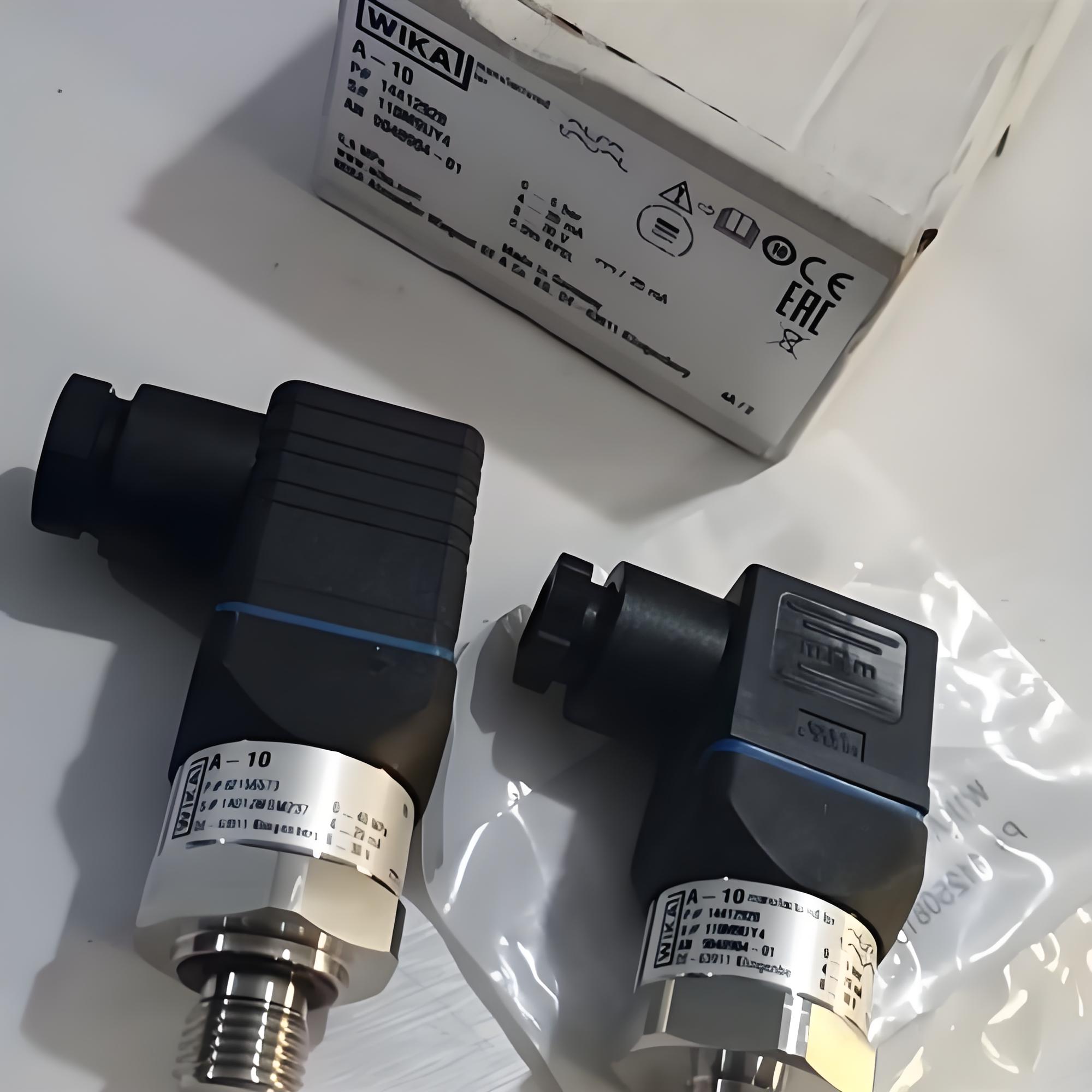

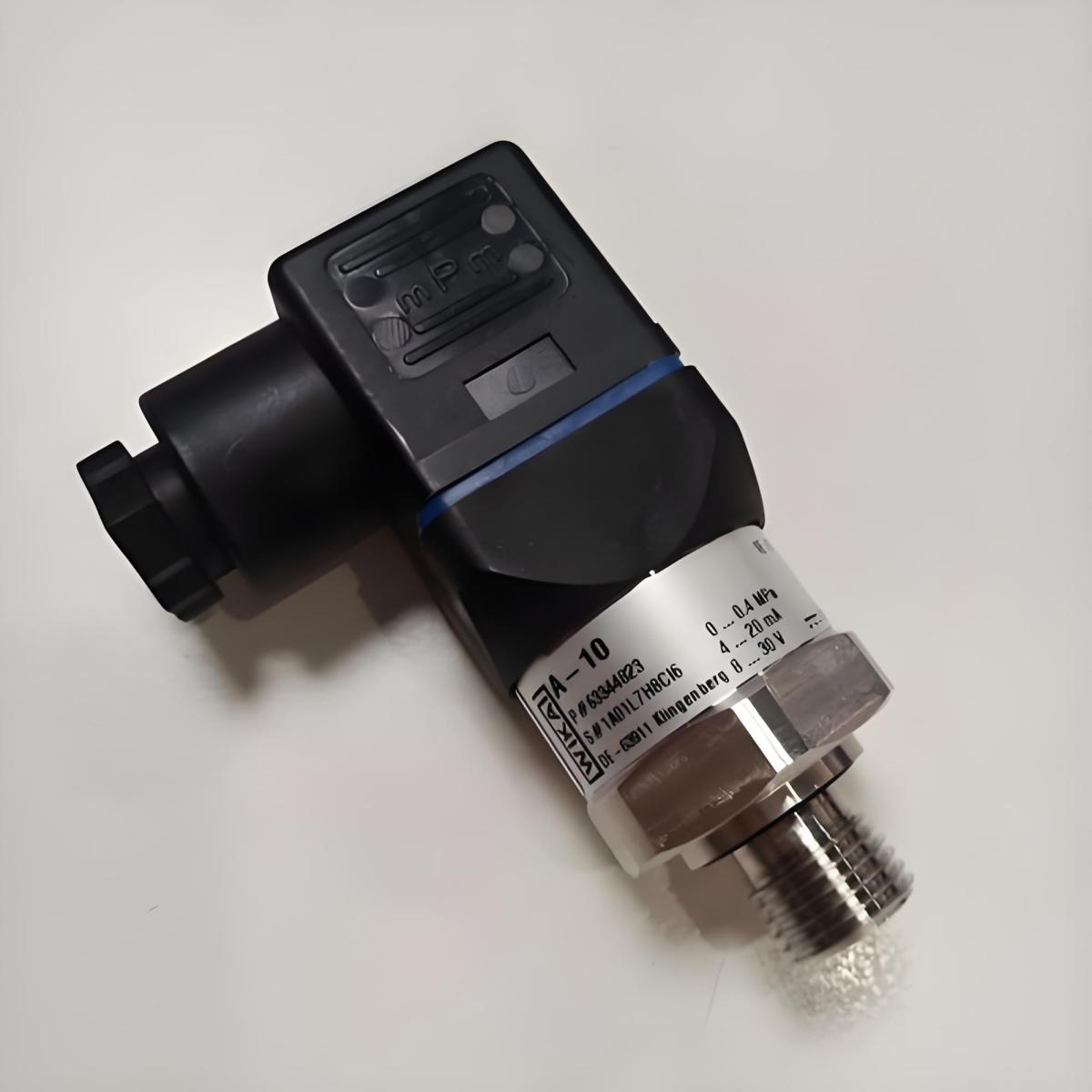

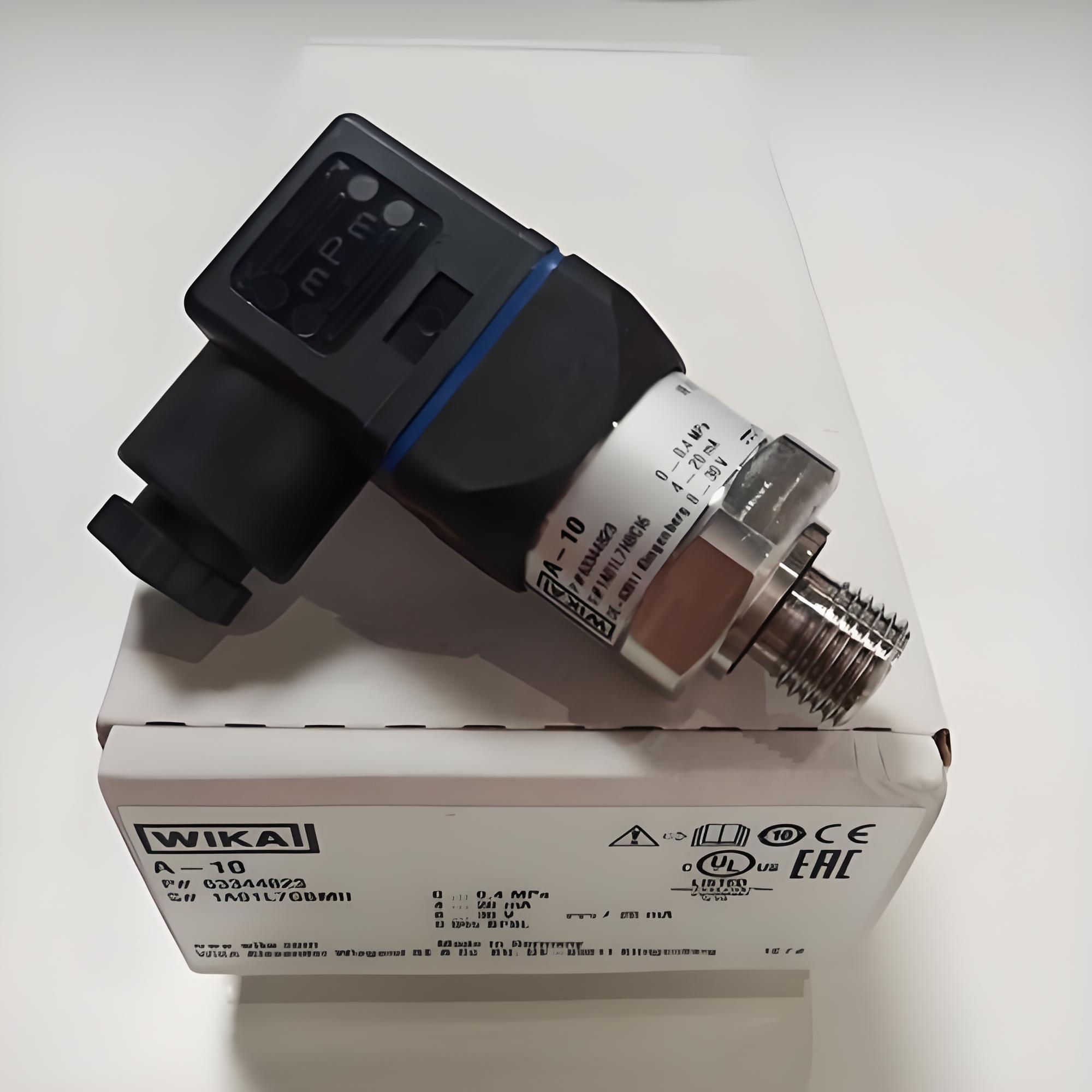

The  A-10 pressure transmitter  (pressure sensor), which has been verified through on-site application, is a versatile product for pressure  measurement in industrial environments. It has a compact structure and can be integrated into various machine designs.  The wide measurement range combined with a special measurement range further enhances its versatility.

According to the requirements, model A-10 can measure gauge pressure, absolute pressure, and mixed pressure. It can be  flexibly configured into over 2 million variants, making it easy to integrate into almost any factory concept.

Product Features

• Excellent quality and reliable technology

• Rich selection of models, covering various applications

• cost-effective

Product advantages

• High precision and high reliability: Provides two accuracy levels of 0.25% BFSL and 0.5% BFSL, and is equipped      with dynamic temperature compensation function, which can maintain stable measurement performance in the ambient      temperature range of 10 ℃ to 50 ℃. Its design is based on decades of industry experience and undergoes rigorous      internal and external testing, capable of withstanding up to 100 million load cycles with almost constant      accuracy, ensuring an extremely long service life and low maintenance costs.

• Wide measurement range and types: The measurement range covers from 0... 0.1 MPa to 0... 100 MPa, supporting      measurement of gauge pressure, absolute pressure, negative pressure (-0.1~0 MPa), and special pressure      combinations, meeting a wide range of needs from low-pressure pneumatic to high-pressure hydraulic systems.

• Flexible output and interface: Supports multiple standard industrial signal outputs such as 4-20 mA, 0-10 V, 0-5      V. The electrical connection method can be selected from M12 aviation connector, Hirschman connector (DIN      175301-803 A/C type) or standard 2-meter cable straight out, which is easy to integrate into different control      systems.

• Durable and sturdy structure: The main components are made of 316L stainless steel material, which has good      corrosion resistance and can adapt to industrial environments with medium temperatures up to 80 ℃. Compact      structural design facilitates integration into various machines and equipment.

• Extremely high configuration flexibility and fast delivery: This model can be configured into over 2 million      variants, and customers can choose pressure type, range, output signal, process connection (such as G ¼ A, ¼ NPT),      etc. according to specific applications. ‌
