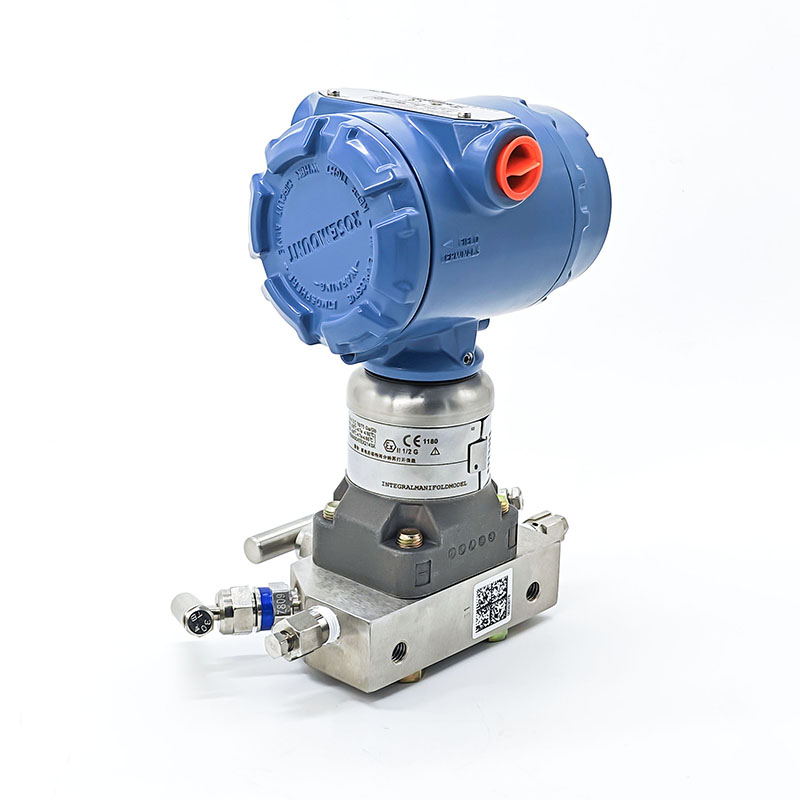

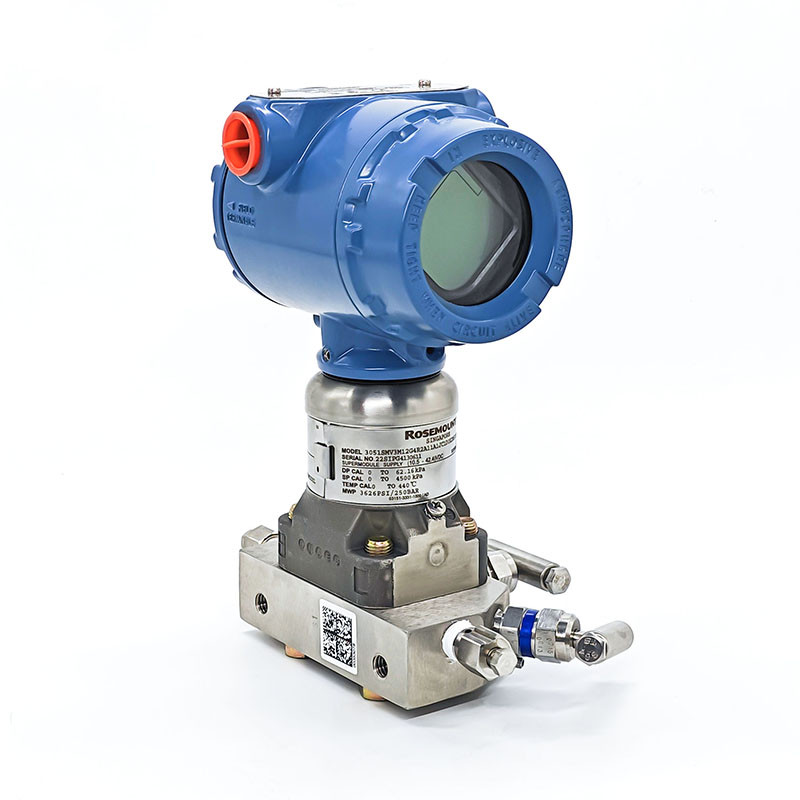

Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter

›

‹

  • Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter
  • Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter
  • Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter
  • Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter

›

Rosemount 3051SMV Scalable Multi VariablePressure Flow Transmitter 4-20mA Complete Stable Function Pressure Transmitter
Rosemount 3051S Coplanar Pressure Transmitter
Available on traditional, coplanar, and in-line transmitters:
■ Designed and engineered to provide optimal performance with Rosemount 3051S Transmitters.
■ Reduce cost and leak points with flangeless coplanar design.
■ Fully integrated manifold and transmitter assemblies come fully leak checked, calibrated and assembled
allowing for one purchase order to save time and cost.
■ Rosemount manifolds provide a wide variety of styles, materials, and configurations to fit any process.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

Rosemount 3051S MultiVariable™ Transmitter

The 3051S MultiVariable Transmitter delivers unprecedented performance and capabilities by providing superior flow calculations including fully compensated mass or volume, energy, and totalized flow. Specify the level of compensation that best matches the application:

■ Gas, natural gas, and steam measurement: Use full compensation (differential pressure, line pressure, and temperature measurement).

■ Saturated steam: Use differential and line pressure, or differential pressure and temperature measurement.

■ Liquids: Use differential pressure and temperature measurement.

■ Liquids at stable temperatures: Use differential pressure measurement.

■ 4–20 mA HART® , WirelessHART®, FOUNDATION™ Fieldbus protocols


Rosemount 3051S Coplanar Pressure Transmitters are the industry leader for Differential, Gage, and Absolute pressure measurement. The coplanar platform allows seamless integration with manifolds, primary elements, and seal solutions. Capabilities include: ■ Ultra, ultra for flow, and classic performance ■ 4–20 mA HART®WirelessHART®FOUNDATION™Fieldbus protocols ■ Safety Certification (Option code QT) ■ Advanced diagnostics (Option code DA2) ■ Remote display and interface (Option code M7, M8, or M9)

Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Power Supply Effects
±0.001% /10V (12~42V DC)
Static Pressure Effects
±(0.05%URL+0.075%Span)/10MPa
Operating Temperature Range
-20℃~80℃
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA 0～10/20mA 0/1～5VDC
Working Pressure Limits
Maximum working pressure: 16MPa,25MPa,40MPa
Sensor Body
316L stainless steel
UpTime
< 15s
Process Connection
Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides
Insulation resistance
100MΩ,100VDC
Protection
IP65



罗斯蒙特包装 (2)

Pressure transmitter.png

Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
