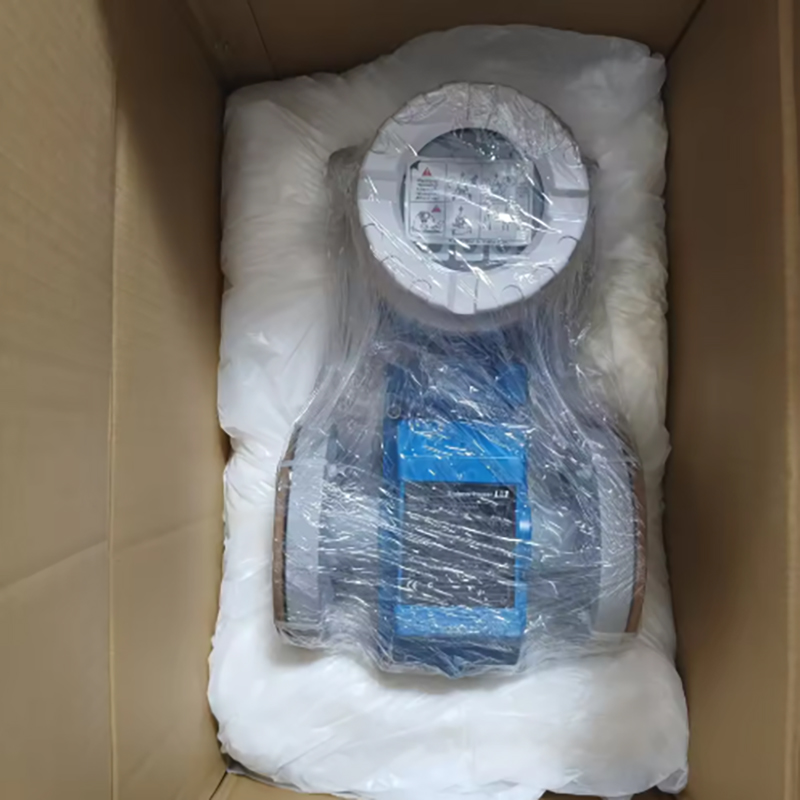

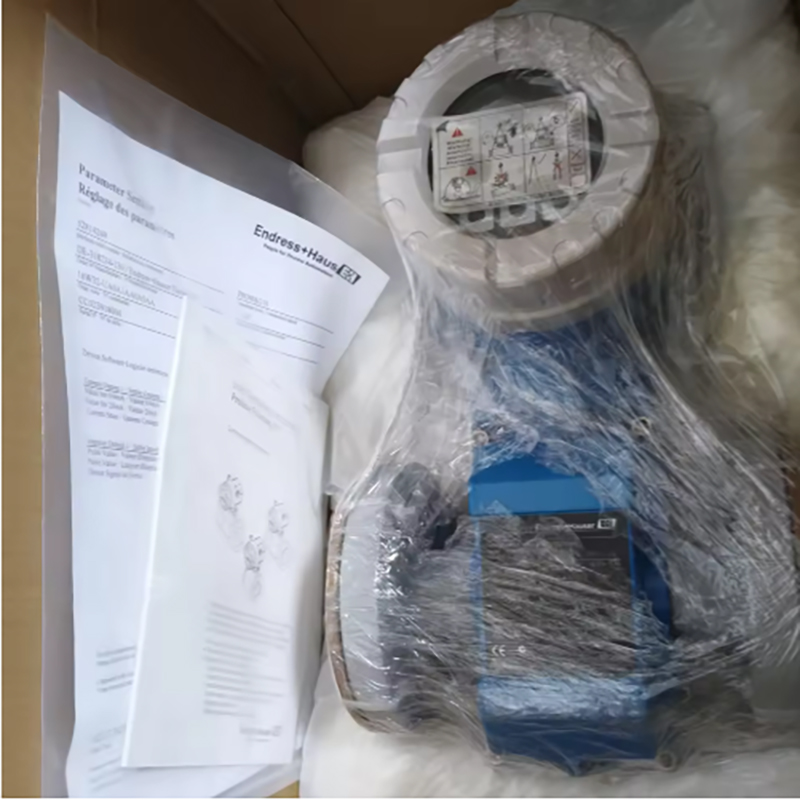

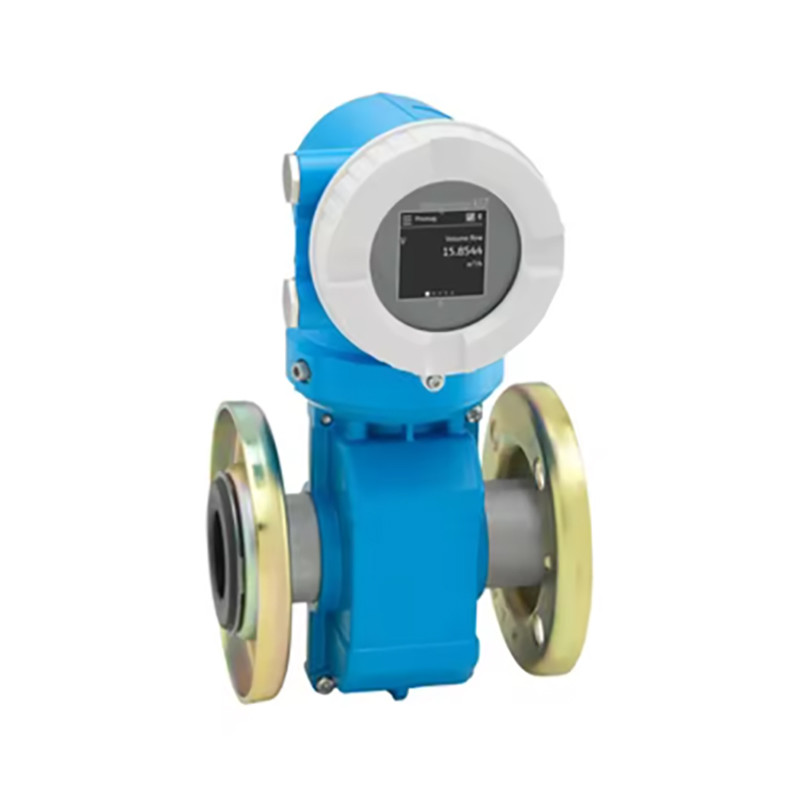

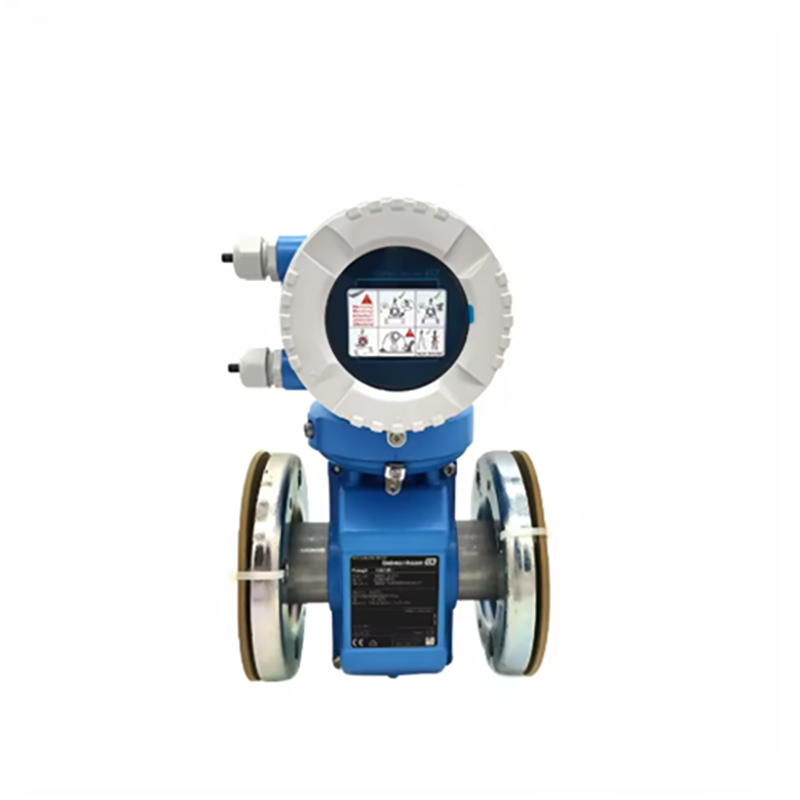

Endress+Hauser Proline Promag W10 5WBB Electromagnetic Flow Meter for Water & Wastewater
The 5WBB series electromagnetic flowmeter is a high‑performance industrial liquid measuring instrument from Endress+Hauser (E+H), belonging to the Proline Promag W10 product line, widely applied in water supply, wastewater treatment, chemical industry, municipal engineering and other fields. It adopts advanced electromagnetic measurement principle, which features no pressure loss, no mechanical moving parts, stable operation and long service life.
This flowmeter supports DN15‑DN200 multiple pipe diameters, with high‑precision measurement for conductive liquids such as water, sewage, chemical solutions and slurry. It provides standard 4‑20mA analog output, and optional HART, Modbus‑RS485 digital communication, convenient for data connection with PLC, DCS and other industrial control systems. Compact integrated type and remote separated type are both available to meet different installation and site requirements.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The 5WBB series electromagnetic flowmeter is a high-precision, reliable industrial flow measurement device independently developed and produced by Endress+Hauser (E+H), a world-leading provider of process automation solutions. As a core product of the E+H Proline Promag W10 product line, it is specifically designed for the accurate measurement of conductive liquids in various industrial and municipal scenarios, integrating advanced technology, stable performance and user-friendly operation, and has been widely recognized and applied in global markets.
Based on the Faraday's law of electromagnetic induction, the 5WBB electromagnetic flowmeter adopts a non-intrusive measurement method, which means there are no mechanical moving parts or obstacles in the flow channel. This unique design not only ensures zero pressure loss during the measurement process, reducing energy consumption of the pipeline system, but also avoids wear, clogging and leakage caused by contact between moving parts and the measured medium, greatly extending the service life of the equipment. The flowmeter can work stably for a long time even in harsh working conditions such as high viscosity, high solid content and corrosive media.
In terms of measurement performance, the 5WBB series has excellent accuracy and repeatability. It supports a wide range of pipe diameters from DN15 to DN200, with a measurable flow rate range of 0.01 m/s to 10 m/s, and the measurement accuracy can reach ±0.5% of the measured value (optional ±0.2% for high-precision models), fully meeting the strict measurement requirements of various industrial fields. It is suitable for measuring all conductive liquids with a conductivity of ≥5 μS/cm, including clean water, drinking water, industrial wastewater, sewage, chemical solutions, slurry, pulp, and various corrosive liquids, covering almost all liquid measurement scenarios in industrial production and municipal engineering.
In terms of configuration and functionality, the 5WBB electromagnetic flowmeter is highly flexible and customizable. It is available in two installation types: compact integrated type and remote separated type. The integrated type is small in size, easy to install and debug, suitable for occasions with limited installation space; the remote type separates the sensor and the transmitter, which can avoid the impact of high temperature, high humidity, strong vibration and other harsh environments on the transmitter, ensuring stable operation of the equipment. The flowmeter is equipped with a high-definition digital display, which can directly display real-time flow rate, cumulative flow, medium temperature and other key data, and supports one-key calibration and parameter setting, making operation and maintenance more convenient.
For communication and output, the 5WBB series provides rich options to meet the needs of different industrial control systems. It is equipped with standard 4-20mA analog output, and optional HART, Modbus-RS485, Profibus and other digital communication protocols, which can seamlessly connect with PLC, DCS, SCADA and other industrial control systems, realizing remote monitoring, data collection and parameter adjustment, improving the automation level of the production process.
In terms of protection performance and material selection, the 5WBB electromagnetic flowmeter is designed to adapt to various harsh working environments. The sensor shell is made of high-quality stainless steel (316L optional), which has excellent corrosion resistance and pressure resistance, and can withstand working pressures up to 1.6MPa (optional 2.5MPa for high-pressure models). The protection level reaches IP68, which is fully waterproof and dustproof, and can be used normally even in underground pipelines, damp workshops and outdoor harsh environments. The liner material has multiple options such as natural rubber, EPDM, PTFE and PFA, which can be customized according to the characteristics of the measured medium to avoid corrosion and wear of the liner, ensuring the long-term stability of measurement accuracy.
As an original genuine product of E+H, the 5WBB electromagnetic flowmeter undergoes strict quality inspection and testing before leaving the factory, ensuring stable performance and reliable quality. We provide comprehensive after-sales service, including technical support, installation guidance, maintenance and replacement of wearing parts, to solve the worries of customers in use. Whether it is water supply and drainage in municipal engineering, flow measurement in chemical plants, sewage treatment in environmental protection projects, or liquid measurement in food and pharmaceutical industries, the 5WBB electromagnetic flowmeter is an ideal choice for efficient, accurate and stable flow measurement.
