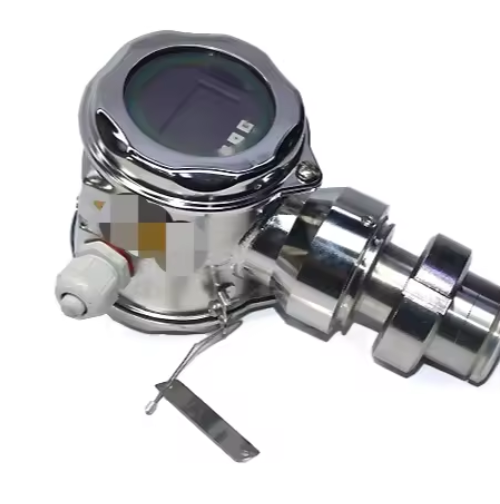

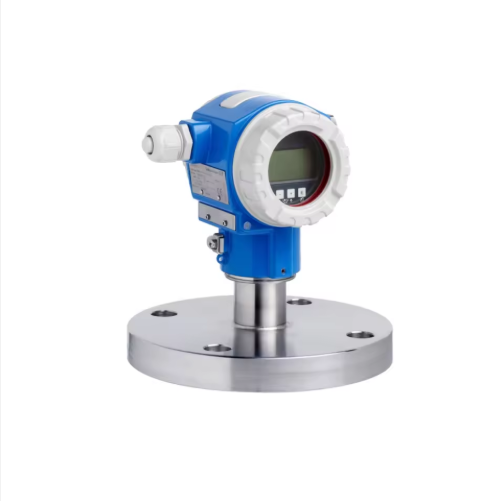

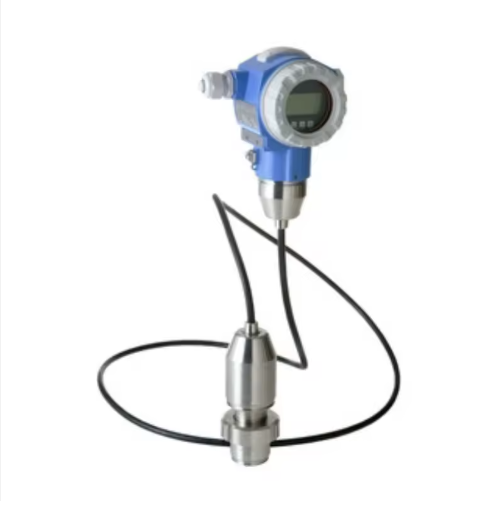

Endress+Hauser FMB70 Hydrostatic Level Transmitter 4-20mA HART Original E+H FMB70 Liquid Level Gauge
The E+H FMB70 is a heavy-duty submersible hydrostatic level transmitter that operates based on the principle of hydrostatic pressure: the pressure exerted by a liquid column is proportional to its height, and the transmitter converts this pressure into a standard electrical signal for easy integration with industrial control systems. Designed by Endress+Hauser, a global leader in process measurement and automation, the FMB70 is built to meet the strictest industrial standards, ensuring outstanding long-term stability, ultra-high accuracy, and maintenance-free operation.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The E+H FMB70 is a heavy-duty submersible hydrostatic level transmitter that operates based on the principle of hydrostatic pressure: the pressure exerted by a liquid column is proportional to its height, and the transmitter converts this pressure into a standard electrical signal for easy integration with industrial control systems. Designed by Endress+Hauser, a global leader in process measurement and automation, the FMB70 is built to meet the strictest industry standards, ensuring long-term stability, high accuracy, and low maintenance.
This versatile level transmitter is suitable for measuring liquid levels in pressure tanks, storage vessels, reservoirs, boreholes, wells, and open channels, and is compatible with various liquids including clean water, wastewater, drinking water, saltwater, brine, oil, and corrosive chemical solutions. With its rugged integrated structure and flexible installation options, it can be easily deployed in both above-ground and underground applications, even in harsh industrial and deep-well environments with limited space.
Core Technical Specifications
Measuring Range: 0.5 m to 100 m (liquid column); optional customized range available for special applications
Accuracy: ±0.075% of full scale (FS) for high-precision version; ±0.1% FS for standard version, ensuring precise measurement even in deep-level and high-pressure applications
Measuring Cell: High-end monolithic ceramic pressure cell with excellent overload resistance (up to 15x full scale) and long-term stability, resistant to corrosion, wear, and fatigue
Output Signal: Standard 4-20 mA analog output; optional HART 7 communication protocol for remote configuration, calibration, and real-time data monitoring
Temperature Measurement: Optional Pt100 temperature sensor (accuracy ±0.2 °C) for simultaneous level and temperature detection, eliminating the need for additional sensors
Protection Class: IP68 (full waterproof and dustproof), suitable for long-term permanent submergence in liquid; optional IP69K for high-pressure cleaning applications in industrial scenarios
Material: Probe wetted parts made of stainless steel (1.4404/316L); optional Hastelloy or titanium alloy for strong corrosive media; housing made of robust engineering plastic or stainless steel, ensuring durability in harsh industrial conditions
Operating Temperature: -20 °C to +85 °C (process temperature); -40 °C to +85 °C (ambient temperature), adaptable to extreme weather, deep underground, and high-temperature industrial environments
Pressure Rating: Up to 100 bar (max), suitable for high-pressure closed tanks, deep wells, and high-static-pressure industrial applications

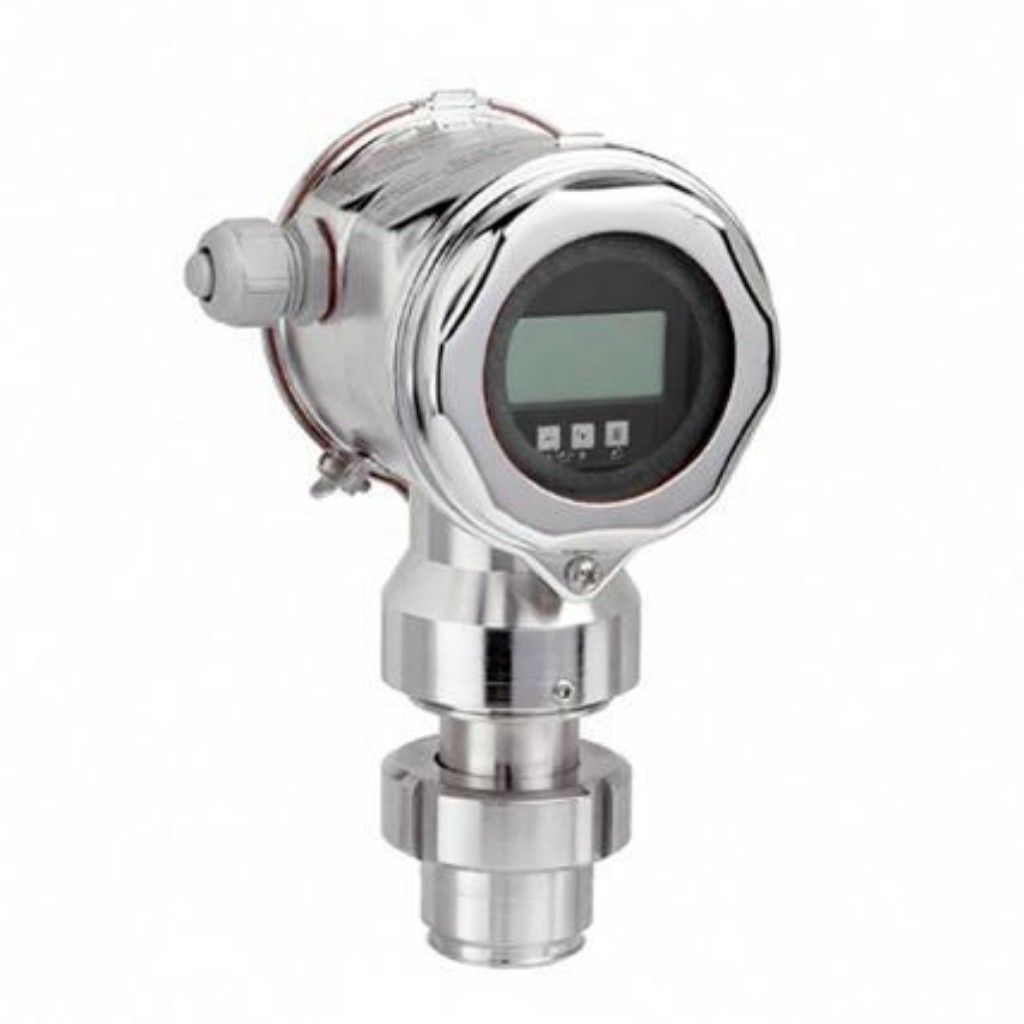

retouch_2025121911013210
