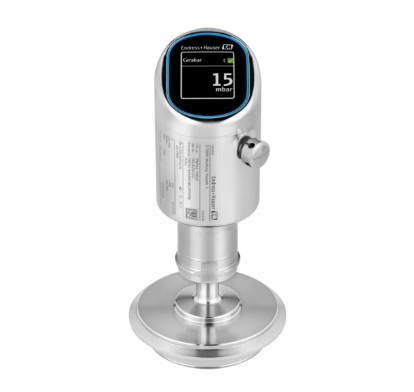

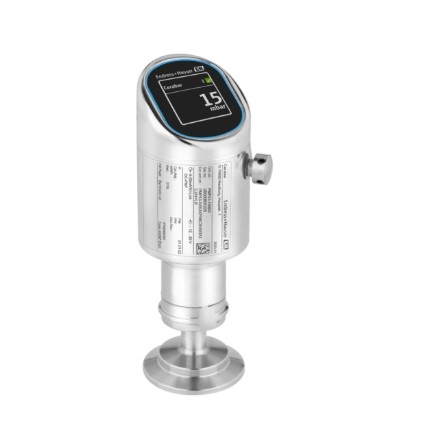

Endress+Hauser Cerabar PMP43 Hygienic Pressure Transmitter for Food & Beverage
This Endress+Hauser Cerabar PMP43 is a high-performance hygienic pressure transmitter designed for strict sanitary applications in the food, beverage, pharmaceutical, biotechnology and dairy industries. Built with premium stainless steel and a flush diaphragm, it ensures easy CIP/SIP cleaning and fully complies with 3A and EHEDG hygienic standards.
Featuring high measuring accuracy up to ±0.075%, the PMP43 provides stable and reliable gauge or absolute pressure measurement. It supports multiple output signals including 4–20 mA HART and IO-Link, enabling easy integration into modern process control systems.
With its compact structure, IP69K protection rating and resistance to high-temperature cleaning, the E+H PMP43 delivers long-term stability even in harsh hygienic environments. Equipped with Heartbeat Technology for self-diagnosis, it reduces maintenance and improves process safety.
Featuring high measuring accuracy up to ±0.075%, the PMP43 provides stable and reliable gauge or absolute pressure measurement. It supports multiple output signals including 4–20 mA HART and IO-Link, enabling easy integration into modern process control systems.
With its compact structure, IP69K protection rating and resistance to high-temperature cleaning, the E+H PMP43 delivers long-term stability even in harsh hygienic environments. Equipped with Heartbeat Technology for self-diagnosis, it reduces maintenance and improves process safety.
Download Attachment
Whatsapp : +86 17391983629
Email : Jayna@xinyiyb.com
CONTACT US
Product Description
The Endress+Hauser Cerabar PMP43 is a state-of-the-art hygienic pressure transmitter, meticulously engineered to meet the stringent requirements of sanitary process industries. As a core product in E+H’s Cerabar series, it combines high-precision measurement, robust hygienic design, and intelligent functionality, making it the first choice for pressure monitoring in food & beverage, pharmaceutical, biotechnology, dairy, and brewery applications. Whether for routine process control, critical quality assurance, or compliance with strict industry standards, the PMP43 delivers reliable performance and long-term stability in the harshest hygienic environments.
1. Product Overview & Core Design
The E+H PMP43 is a compact, hygienic pressure transmitter designed for gauge, absolute, or differential pressure measurement (depending on configuration), with a focus on minimizing contamination risks and ensuring easy cleaning. Its sleek, crevice-free design eliminates dead zones where media can accumulate, a critical feature for sanitary processes that require frequent CIP (Clean-in-Place) and SIP (Sterilize-in-Place) cycles.
Constructed with high-quality 316L stainless steel (or optional Hastelloy for corrosive media), the transmitter’s flush diaphragm is polished to a Ra ≤ 0.8 μm surface finish, meeting the strictest hygienic standards. The diaphragm is hermetically sealed to prevent media penetration, ensuring product purity and protecting the internal measurement components from damage. Additionally, the PMP43 features a rugged housing with IP69K protection rating, making it resistant to high-pressure, high-temperature cleaning agents and suitable for use in wash-down environments.
2. Technical Specifications & Performance
The PMP43 stands out for its exceptional measurement accuracy and stability, ensuring precise pressure monitoring even in dynamic process conditions. Below are its key technical parameters:
- Measurement Range: Gauge pressure: -1...0 bar to 0...400 bar; Absolute pressure: 0...1 bar to 0...400 bar (depending on model)
- Accuracy: Up to ±0.075% of full scale (FS), ensuring reliable and consistent measurement results
- Output Signals: 4–20 mA HART (version 7), IO-Link (IEC 61131-9), optional pulse output for flow calculation
- Temperature Range: Process temperature: -40°C to +200°C; Ambient temperature: -40°C to +85°C (with optional cooling element for high-temperature applications)
- Pressure Rating: Maximum working pressure: Up to 400 bar; Burst pressure: 1.5 × maximum working pressure
- Hygienic Certifications: Compliant with 3A, EHEDG, FDA, and CE standards, ensuring compliance with global sanitary regulations
- Process Connections: Tri-Clamp, Varivent, SMS, or custom connections, compatible with standard sanitary fittings
- Power Supply: 12–30 V DC (for 4–20 mA HART); 20–30 V DC (for IO-Link)
With a response time of ≤ 10 ms (fast response option available), the PMP43 can quickly adapt to changes in process pressure, providing real-time data for process optimization and control. Its low temperature drift (≤ 0.01% FS/°C) ensures measurement accuracy even in fluctuating temperature environments, a common challenge in sanitary processing.
