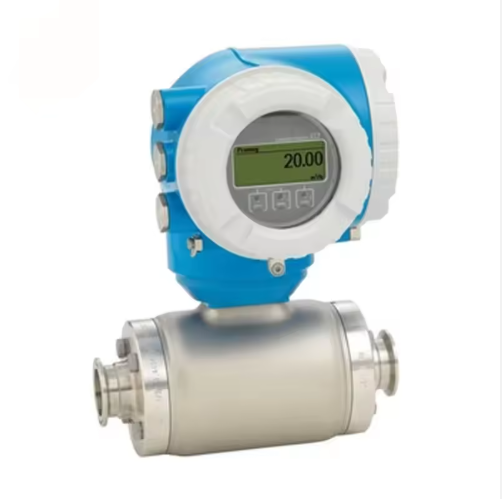

Endress+Hauser 5E1B Promag H 500 Electromagnetic Flow Meter Proline Promag H500 5E1B Clamp-Type Hygienic Flow Meter

Endress+Hauser 5E1B (Proline Promag H 500) is a high-precision hygienic electromagnetic flow meter, specially designed for conductive liquids in food, beverage, dairy, and pharmaceutical industries. Compliant with FDA, 3A, and EHEDG standards, it features ±0.2% accuracy, CIP/SIP compatibility, tri-clamp connection, and PFA liner for corrosion resistance. With flow velocity range 0.01-10 m/s, it supports bi-directional measurement and seamless integration with industrial control systems, ensuring safe and reliable flow monitoring in hygienic applications.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

Endress+Hauser 5E1B, a core model of the Proline Promag E100 series, is a cost-effective electromagnetic flow meter specifically developed for the economical measurement of conductive liquids in basic industrial applications. With its ultra-compact design, reliable performance, and flexible integration capabilities, it has become a preferred choice for industrial users who need practical and efficient flow measurement solutions, especially skid manufacturers, equipment suppliers, and system integrators.

1. Core Measurement Technology & Performance Parameters

The 5E1B adopts the principle of electromagnetic induction based on Faraday’s Law, which ensures that the flow measurement is not affected by changes in fluid properties such as pressure, density, temperature, or viscosity—eliminating common measurement errors in traditional flow meters. This technology enables bidirectional flow measurement, making it suitable for processes where fluid direction may change, such as recycling systems or batch operations.

Measurement Accuracy: Standard version: ±0.5% of reading ±1 mm/s (0.04 in/s); Optional high-accuracy version: ±0.2% of reading ±2 mm/s (0.08 in/s), ensuring precise measurement for both basic and critical processes [3][4].
Flow Measurement Range: 4 dm³/min to 9600 m³/h (1 to 44,000 gal/min), covering a wide range of flow scenarios from low-flow raw material transfer to high-volume industrial production [3][8].
Medium Temperature Range: -10°C to +110°C (14 to 230°F), adapting to normal and moderate-temperature industrial process liquids [3][4].
Maximum Process Pressure: PN 40, Class 150, 20 k, ensuring stable operation under different pressure conditions in industrial environments [3][8].
Nominal Diameter: Up to DN 600 (24 inches), supporting various pipeline specifications from small to large diameters [4][8].

2. Structural Design & Material Advantages

The 5E1B is designed with practicality and durability in mind, with every detail optimized to adapt to industrial working conditions and reduce operational costs.

Ultra-Compact Transmitter: The transmitter features a robust and ultra-compact housing, which occupies minimal space while providing full functionality. This design is particularly suitable for compact installation environments, such as skid-mounted systems and small-scale process equipment [3][8].
Wetted Materials: The liner is made of PTFE, which has excellent chemical resistance, high temperature resistance, and non-stick properties, preventing material adhesion and ensuring long-term stable operation. The electrodes are available in multiple options, including 1.4435 (316L) for general applications, Alloy C22 (2.4602/UNS N06022) for corrosive media, and Tantalum for highly aggressive liquids [2][3].
Protection Class: IP67 (Type 4X enclosure), ensuring dust-tight and water-tight performance, suitable for indoor and outdoor industrial environments, and effectively protecting the internal components from external interference .
Hazardous Area Approvals: Equipped with EX approvals for Zone 2, complying with ATEX, IECEx, CSAus, INMETRO, and EAC standards, making it suitable for use in hazardous industrial environments .
