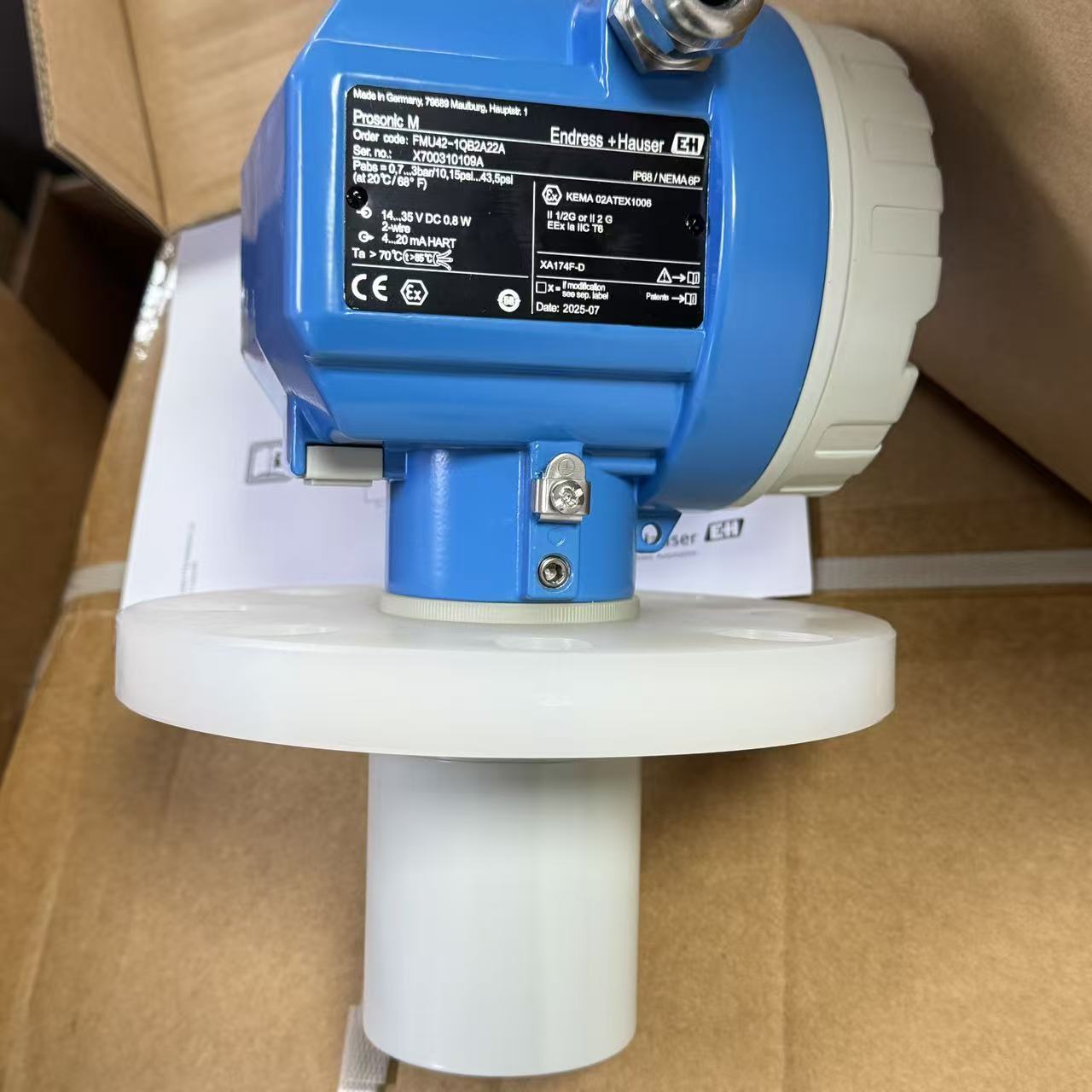

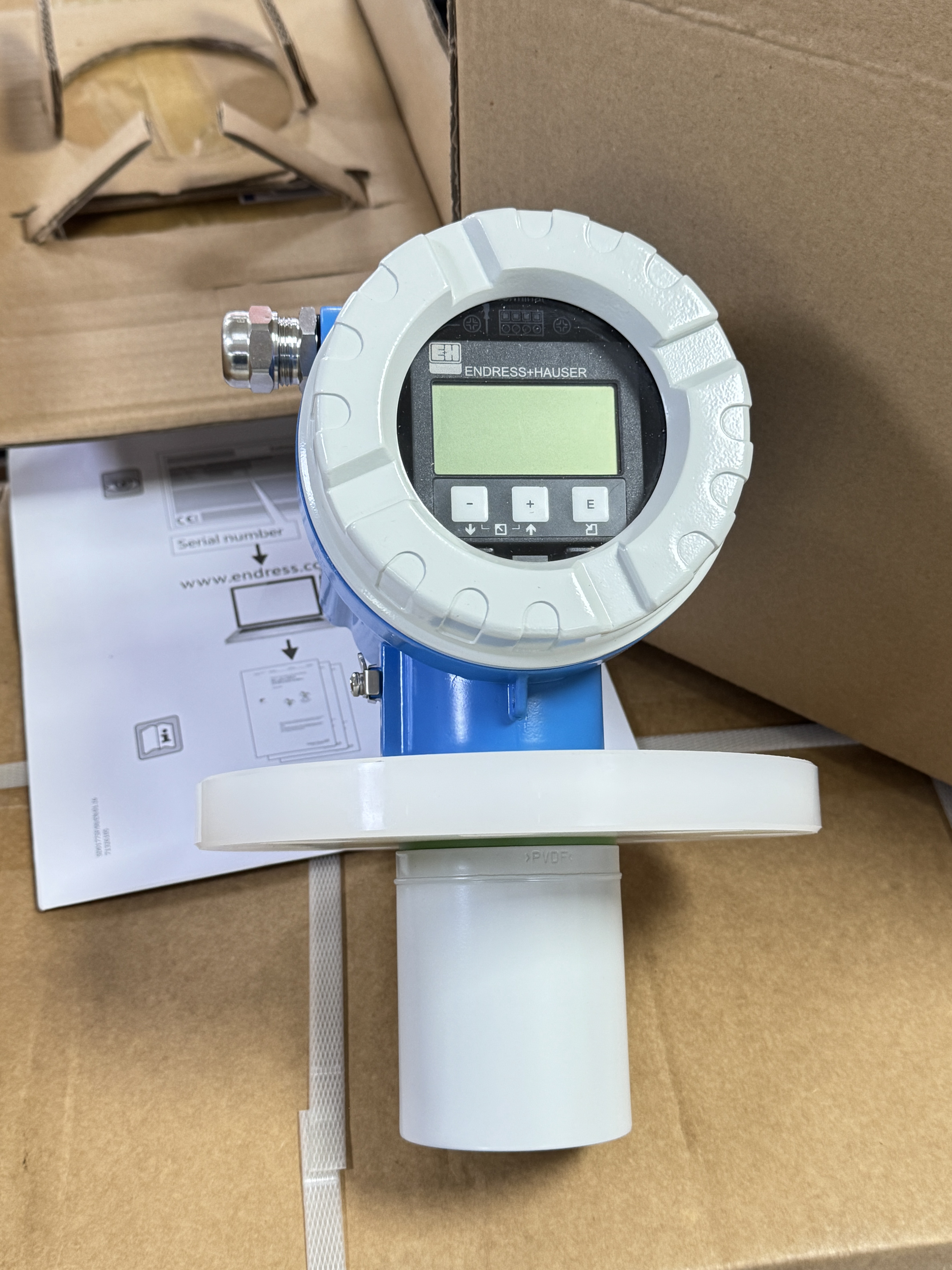

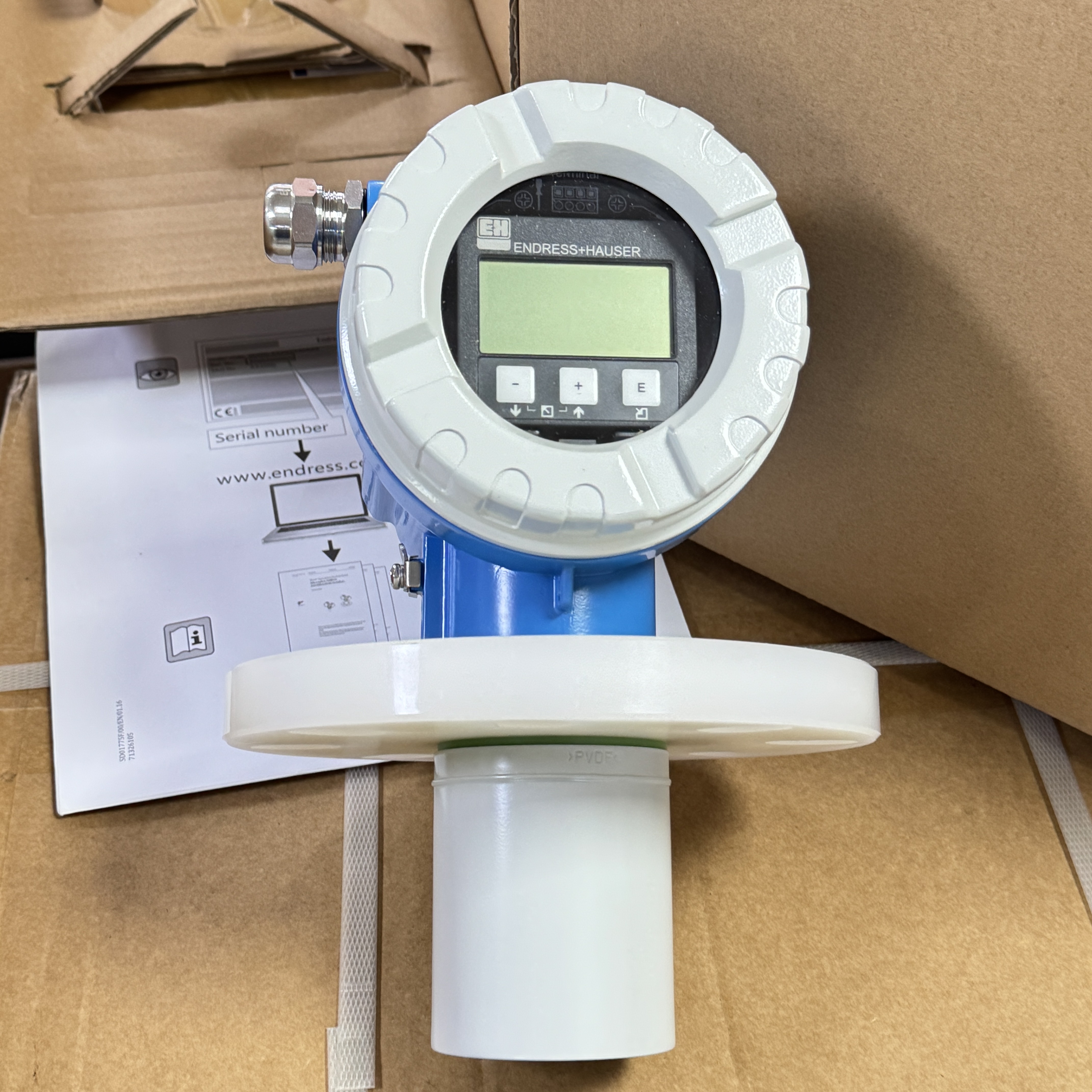

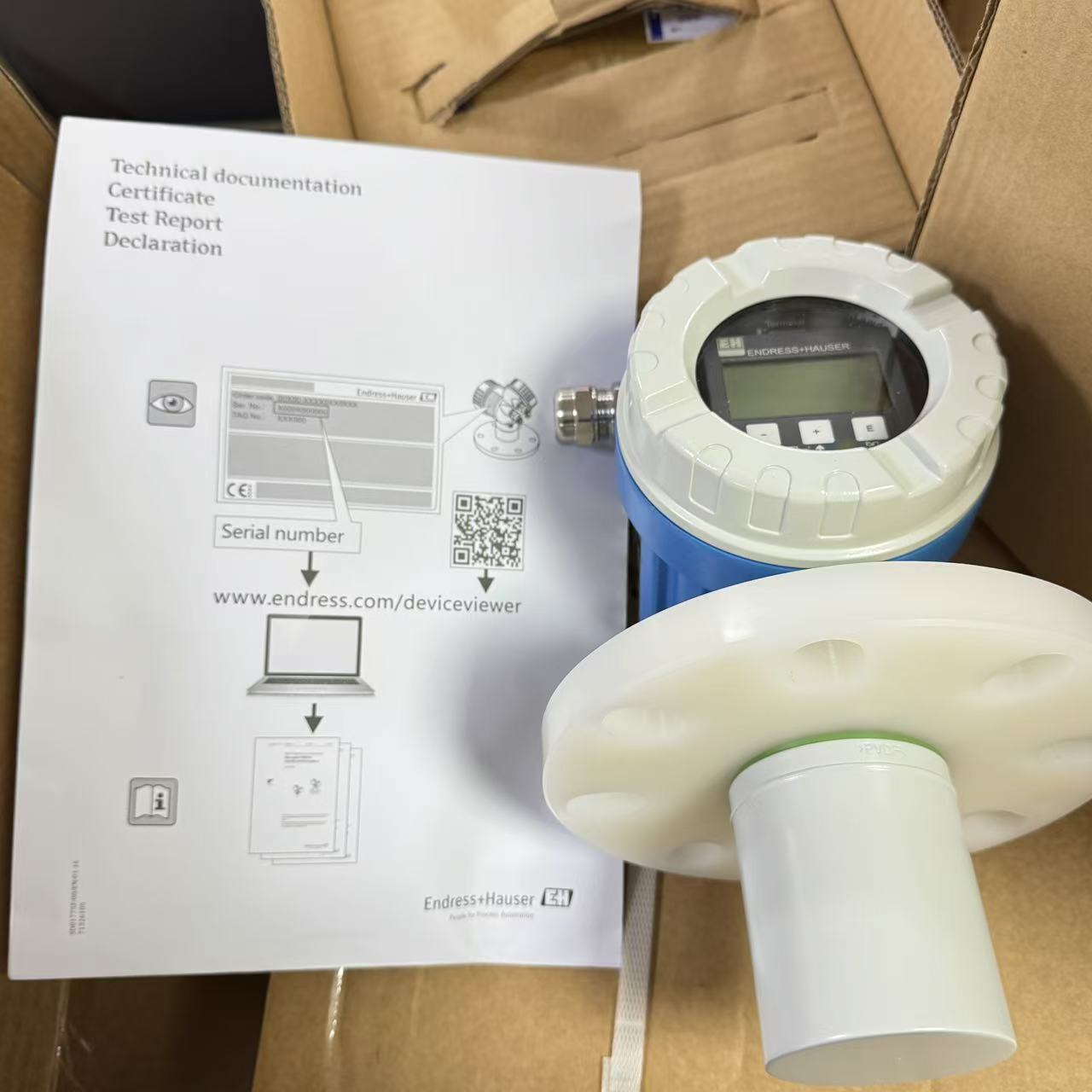

E+H FMU42 High-Precision Radar Level Meter for Liquids/Solids Industrial FMU42 Radar Level Sensor

Endress+Hauser Prosonic FMU42 Ultrasonic Level Transmitter
The FMU42 series is a high-performance non-contact ultrasonic level meter designed and manufactured by Endress+Hauser (E+H). It provides reliable continuous level measurement for liquids, slurries, and bulk solids in tanks, open channels, silos, and process vessels. With stable signal processing and strong anti-interference capability, it is widely applied in water treatment, chemical industry, food processing, mining, and environmental protection.

Download Attachment

Whatsapp : +86 17391983629‬

Email : Jayna@xinyiyb.com

Product Description

The Prosonic FMU42 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis.
Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Two-wire or four wire instrument for continuous non-contact level and flow measurement.
* Process connection: Flange
* Temperature: -40 to +80°C (-40 to +176°F)
* Pressure: +0.7 to +2.5bar (+10 to +36psi)
* Maximum measuring distance: Liquids 10m (33ft), Solids 5m (16ft)
* Blocking distance: Liquids and Solids 0.4m (1.3ft)
* International explosion protection certificates

Benefits
 * Reliable non-contact measurement
 * Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
 * Envelope curves on the on-site display for simple diagnosis
 * Hermetically sealed and potted sensor
 * Chemically resistant sensor out of PVDF
 * Calibration without filling or discharging
 * Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Message

Products Recommended



Pressure Transmitters for Industrial Pressure Measurement

Name: E+H FMU42 High-Precision Radar Level Meter for Liquids/Solids Industrial FMU42 Radar Level Sensor
SKU: -1

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types	Gauge, absolute, negative pressure, differential pressure
Measuring Range	From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals	4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy	Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection	M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials	Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media	Water, oil, gas, air, steam and compatible liquid or gas media
Applications	Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
Xinyi YW-3051DP - smart differential pressure transmitter for process control.
Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
