Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter

›

‹

  • Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter
  • Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter
  • Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter
  • Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter
  • Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter

›

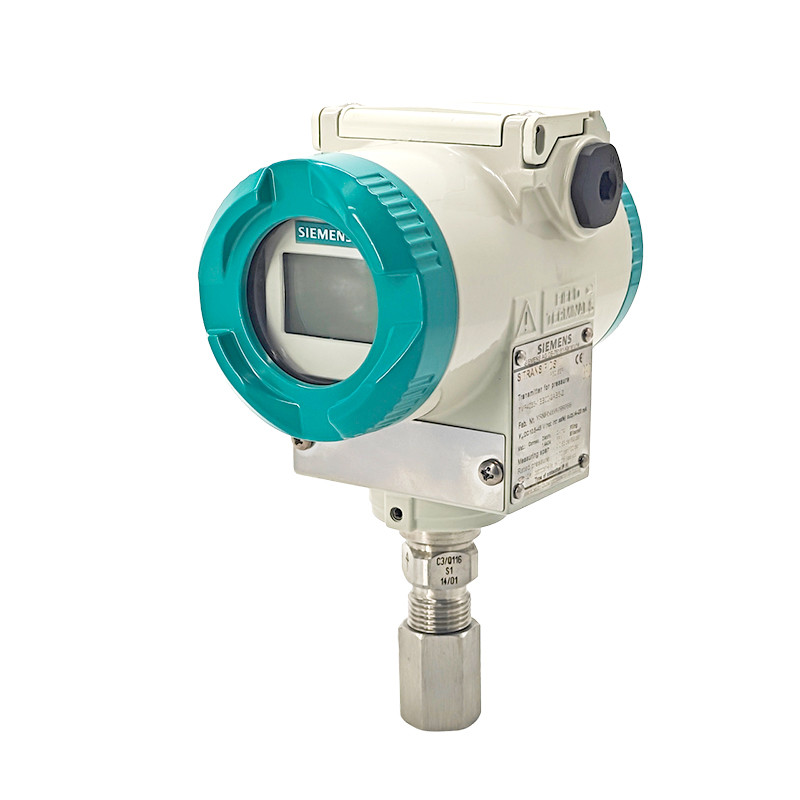

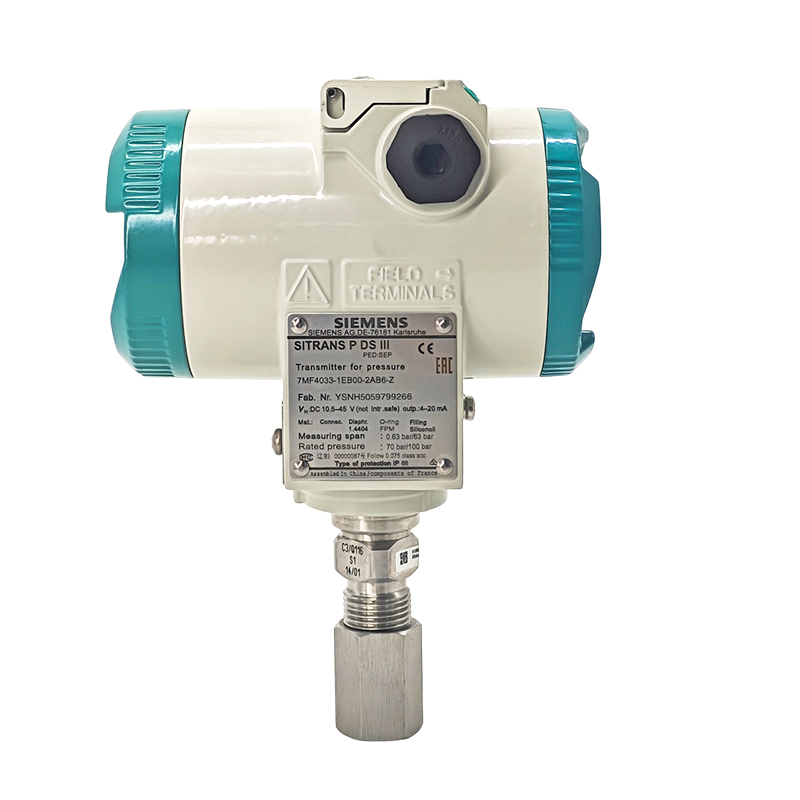

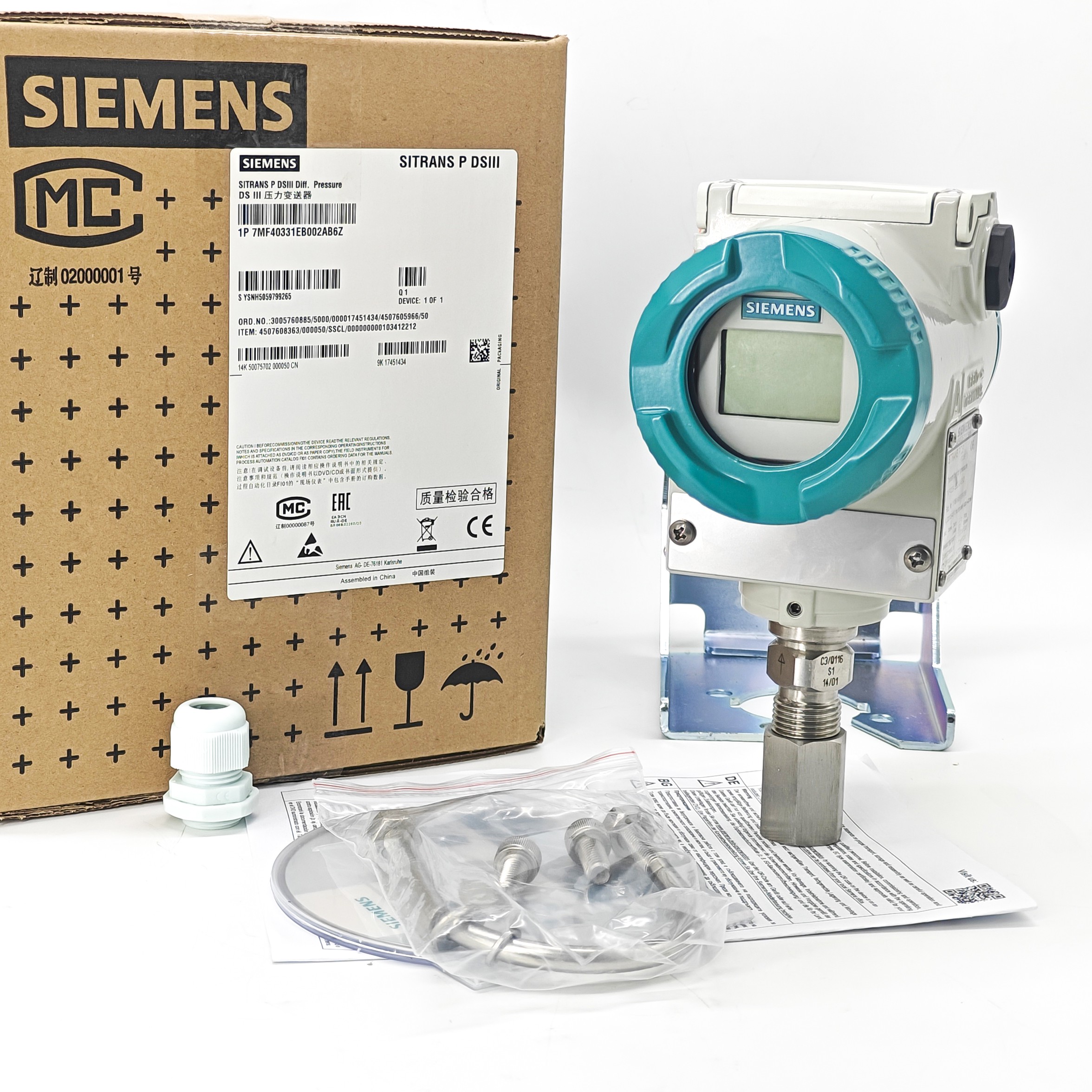

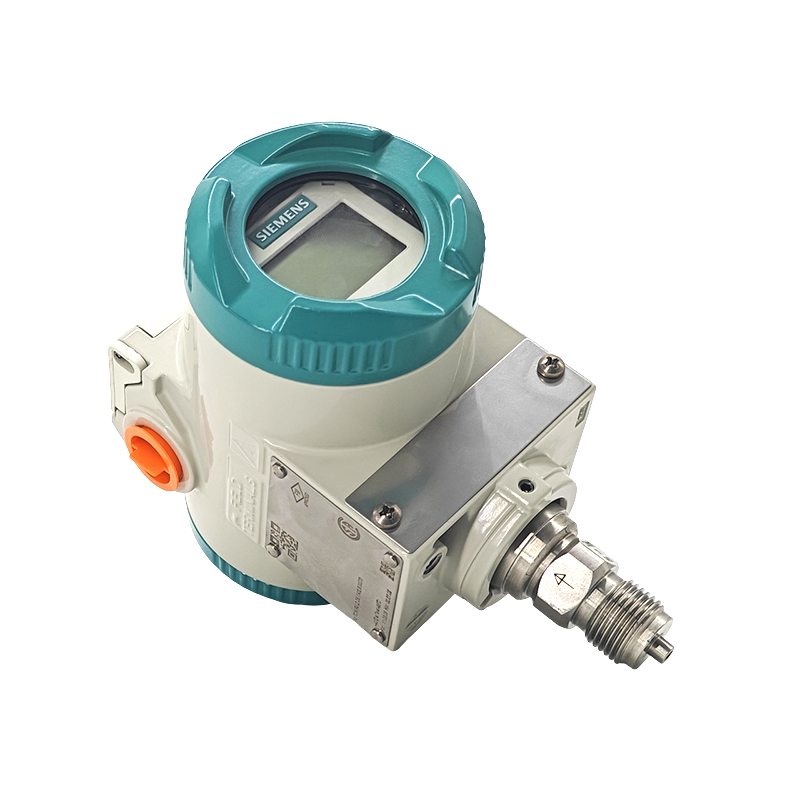

Siemens Sitrans P 7MF4033-1EB00-2AB6-Z Pressure Transmitter
Siemens Sitrans P 7MF4033 gauge pressure transmitter with 4-20 mA output for gases, vapors, and liquids. Legacy DS III model, now discontinued.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

The Siemens 7MF4033 is a gauge pressure transmitter from the SITRANS P DS III series, designed for industrial  applications measuring gases, vapors, and liquids. While it is a widely used legacy device, it has been  canceled/discontinued by Siemens and replaced by the SITRANS P320/P420 series.

Technical Specifications

This transmitter is a two-wire device that converts pressure into a standard 4 to 20 mA output signal, often with HART  communication.

Accuracy: Typically

0.075% of the set span, though some variants list $pm$0.1%.

Measuring Spans: Highly adjustable ranges, with common spans including:

9.14 to 914 psi (0.63 to 63 bar).

23.2 to 2320 psi (1.6 to 160 bar).

2.32 to 232 psi (0.16 to 16 bar).

Materials:

Wetted Parts: Stainless steel or optional Hastelloy process diaphragms.

Housing: Die-cast aluminum or precision-cast stainless steel.

Display: Options include a hidden display or a visible digital indicator with a glass-windowed cover.

Protection: Rated for IP65/IP66/IP68; available in general-purpose or explosion-proof (EEx d) versions.5

4

Eric

Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
