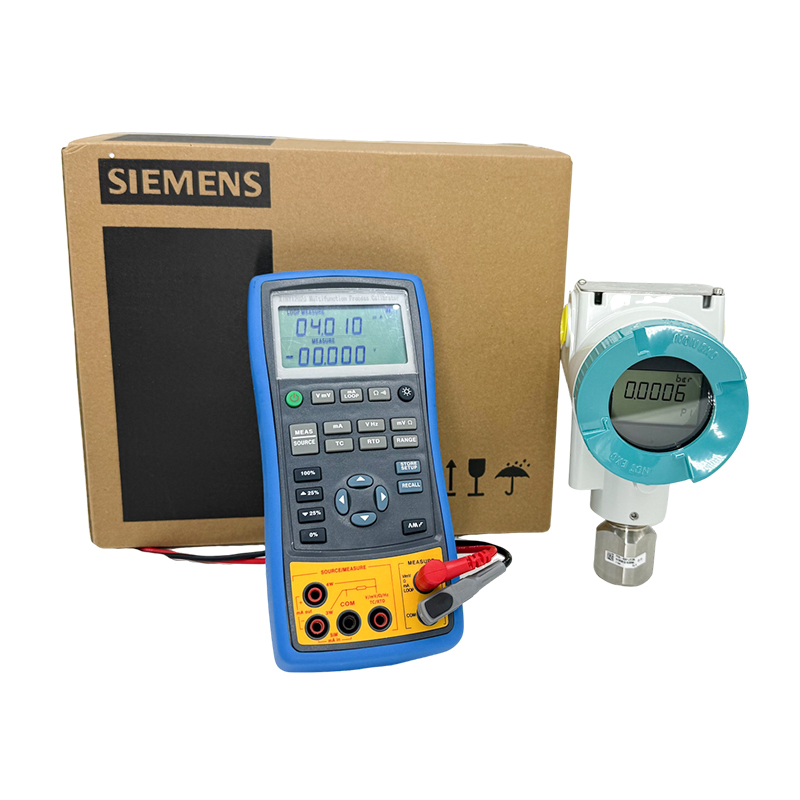

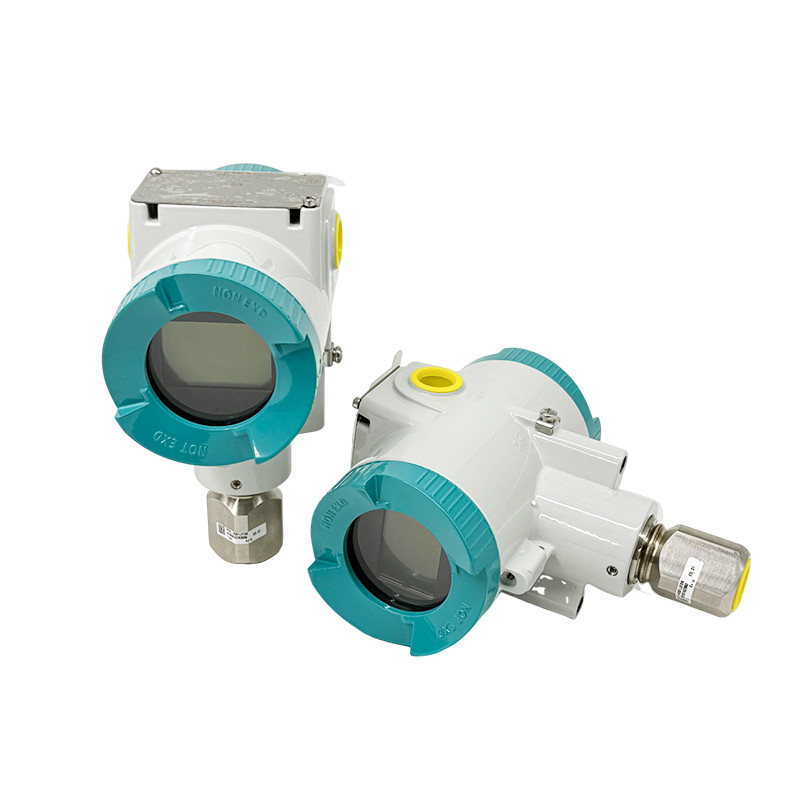

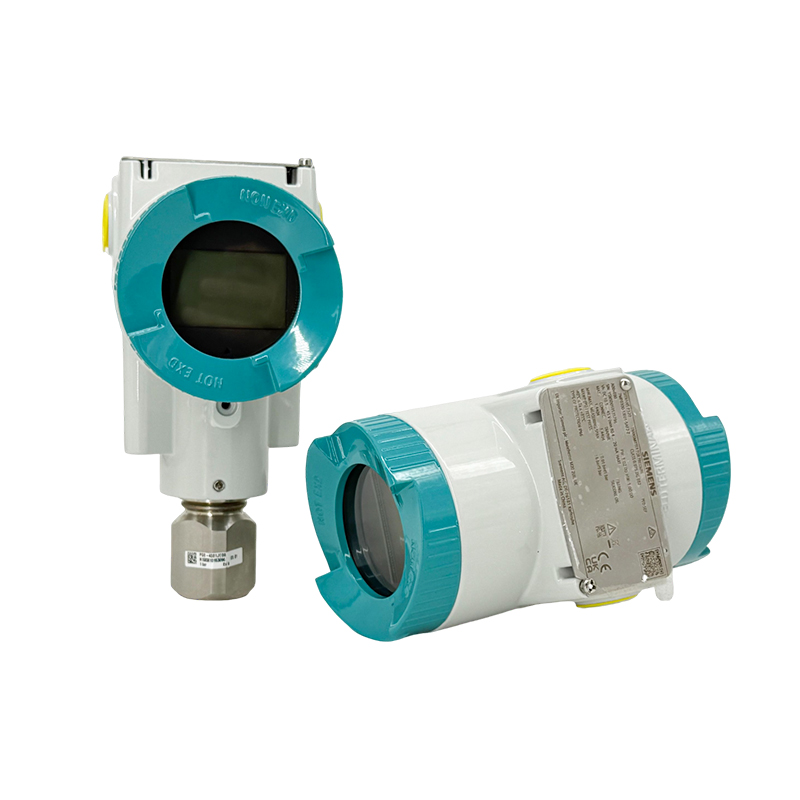

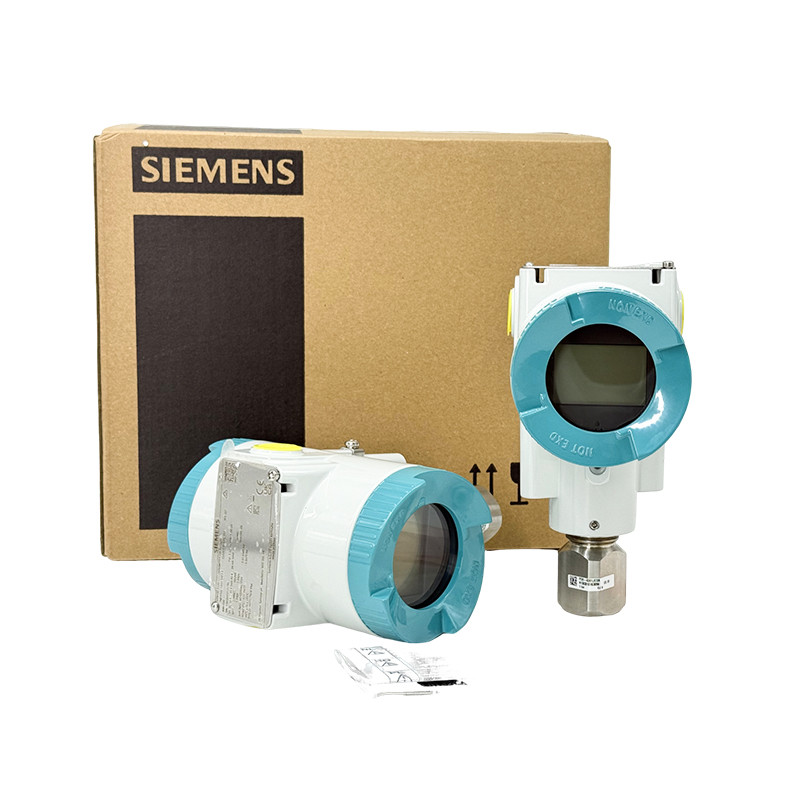

Siemens 7MF0300/7MF0400 Series Gauge Pressure Transmitters

SITRANS P320/P420 pressure transmitters are digital pressuretransmitters featuring extensive user-friendliness and  high accuracy, The parameter assignment is performed using input buttons or the HART interface.

The comprehensive functionality makes for precise adjustmentof the pressure transmitter to the requirements of the  plant. Operation is very user-friendly in spite of the numerous setting options.

Due to their advanced diagnostic functionalities according to NAMUR NE107, the SITRANS P320/P420 pressure  transmittersare very suitable for use in chemical plants. Thanks to the advanced diagnostic functions and the process  value storage, the SITRANS P420 is "Ready for Digitalization".

The "Remote Safety Handling' function saves customers signifi-cant amounts of time and money, because the SIL function  can be switched on and validated remotely via SIMATIC PDM, This eliminates travel times and on-site operation via the  local displayor keyboard.

Parameter assignment using the HART protocol is very easy andquick thanks to the innovative EDD with integrated Quick  Startwizard.

The transmitters can be equipped with various types of remoteseals for special applications such as the measurement of  highlyviscous substances.

SITRANS P320/P420 pressure transmitters are available in vari-ous versions for measuring:

· Gauge pressure

· Absolute pressure

· Differential pressure

· Level

· Volume flow

· Mass flow

Benefits

Diagnostic functions in accordance with NAMURrecommendation NE107

SIL devices developed according to IEC 61508

SIL validation on the device or remotely with SIMATIC PDM

Reduction of internal inductance for Ex applications to LI = 0

Step response time for pressure type T63 = 105 ms and fordifferential pressure type 135 ms.

Minimal conformity error

Very low temperature influence

Very good long-term stability

High quality and service life

High reliability even under extreme chemical and mechanical loads

For corrosive and non-corrosive gases, vapors and liquids

Extensive diagnostics and simulation functions

Separate replacement of measuring cell and electronicswithout recalibration

Wetted parts made of high-grade materials (e.g., stainlesssteel, alloy, gold, Monel, tantalum)

Infinitely adjustable measuring spans from O.01 bar to 700 bar(0.15 psi to 10153 psi)

Convenient parameterization over 4 input buttons and HARTinterface
