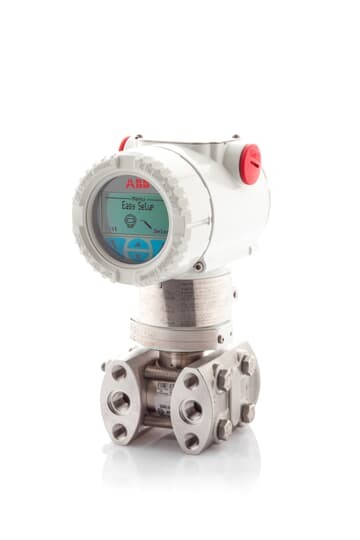

Model 266MST is the top performance differential pressure transmitter with “multisensor technology” suitable for  measuring liquid, gas or steam flow as well as level, pressure and density in applications with working pressure up to  41Mpa / 5945psi.

The unique combination of several sensor systems in a single device allows simultaneous measurement of differential  pressure and absolute pressure. The sensor temperature and the absolute pressure are also used for eliminating  environmental effects on the sensor. Long-term stability and proven reliability are the key-factors that make of  266MST the best choice for differential pressure measurement.

In addition to the plug-in terminal block, this transmitter features in-field replaceable electronics module that  thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play  display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.  Moreover, the innovative TTG (Through The Glass) technology allows users to configure the instruments in the field  without removing the windowed front cover and consequently to save a lot of time.

The 266MST is certified by TUV NORD for use in safety instrumented systems as per the requirements of IEC61508. The  transmitters meet the requirements for SIL2 applications in a single transmitter configuration (1oo1) and for SIL3  applications in a redundant configuration (1oo2).
