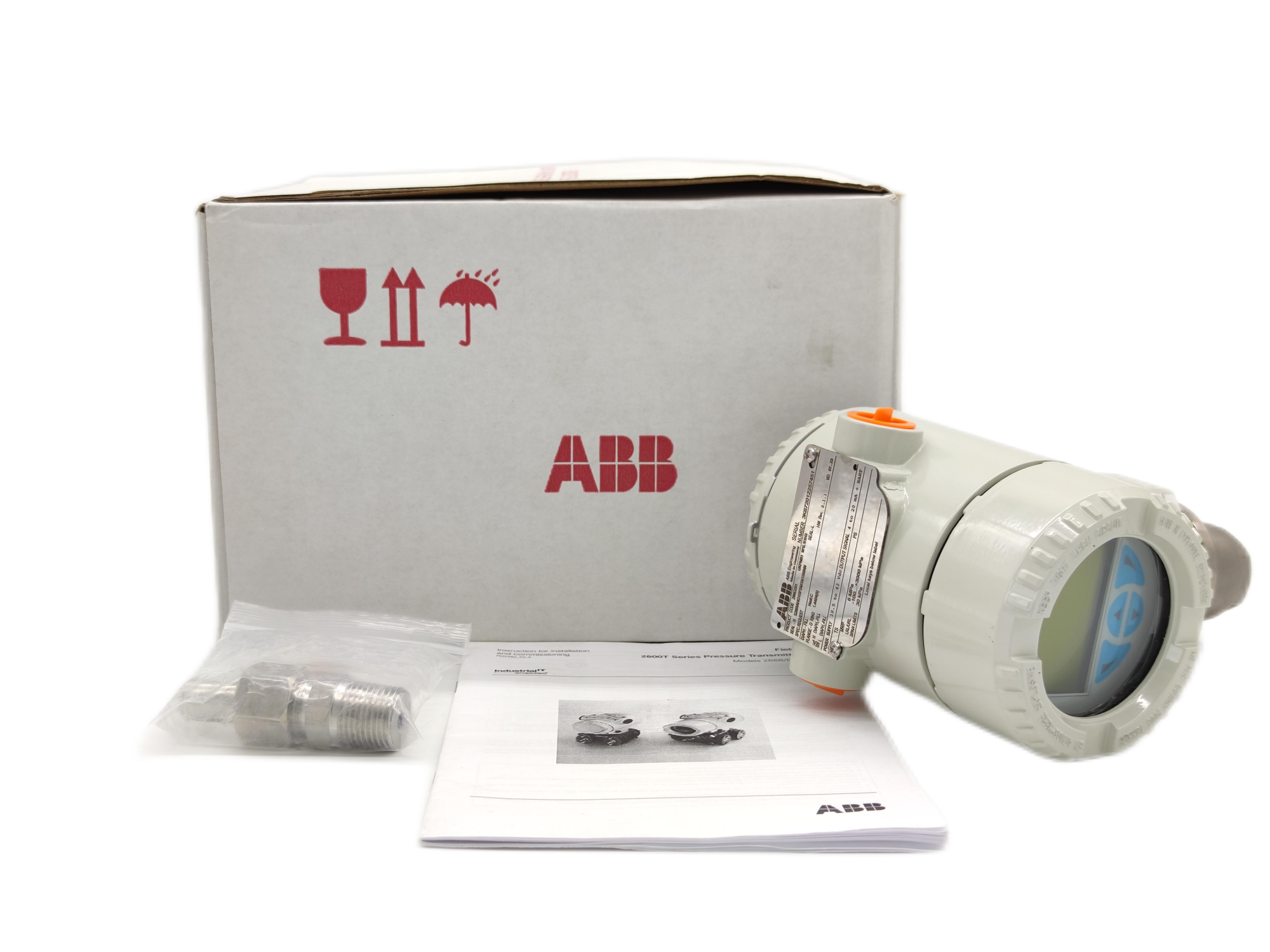

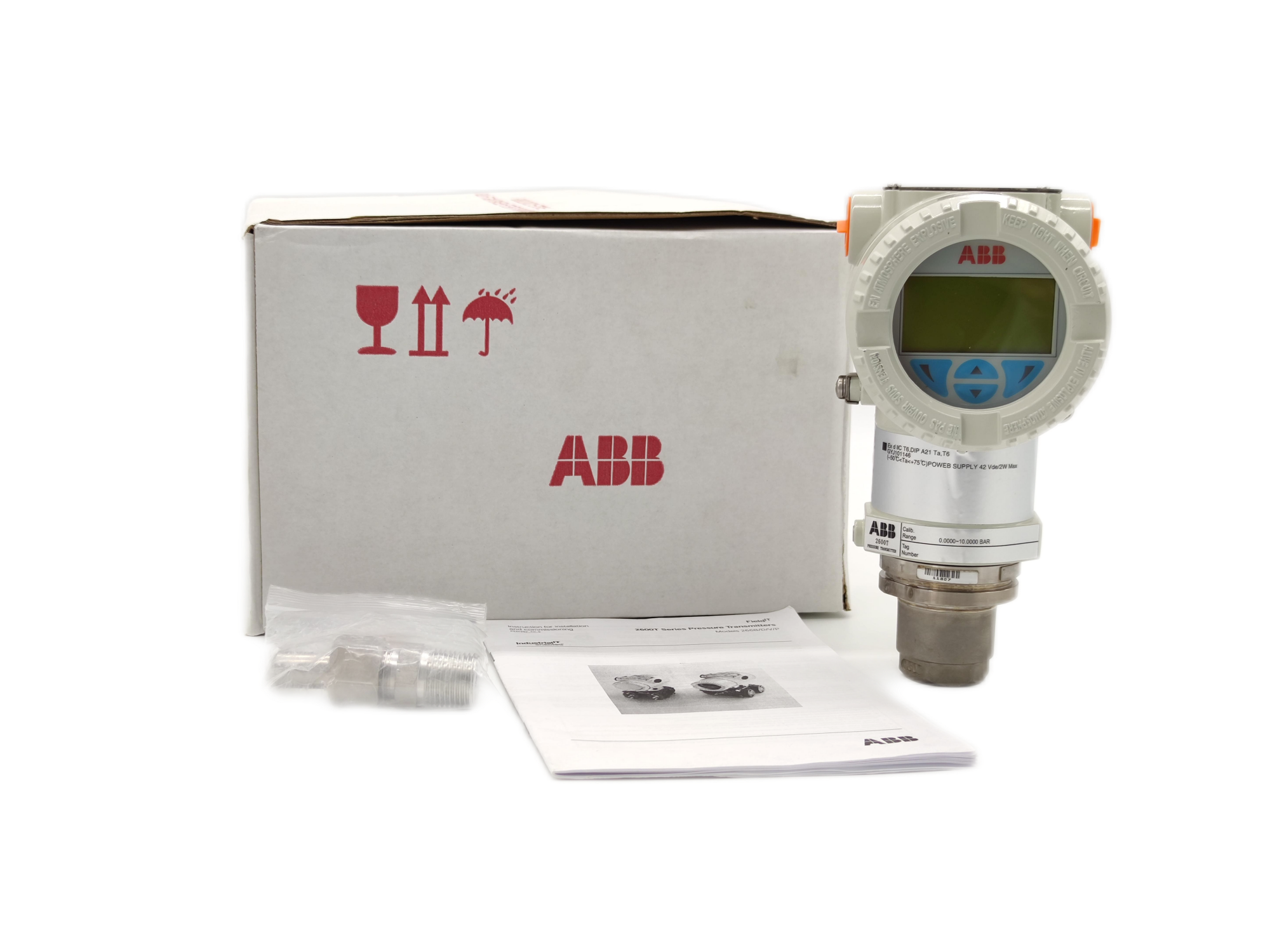

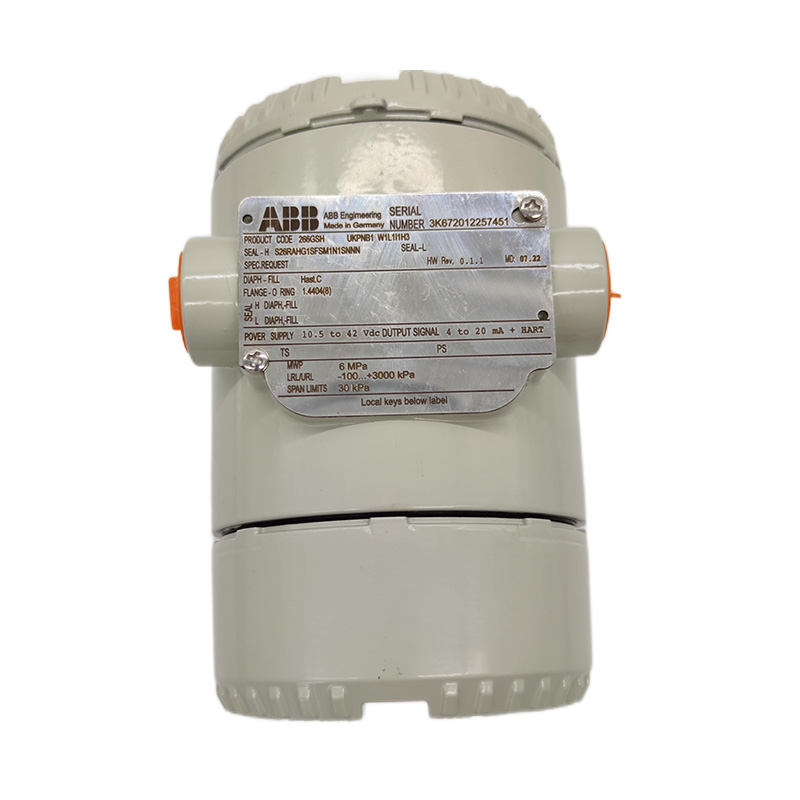

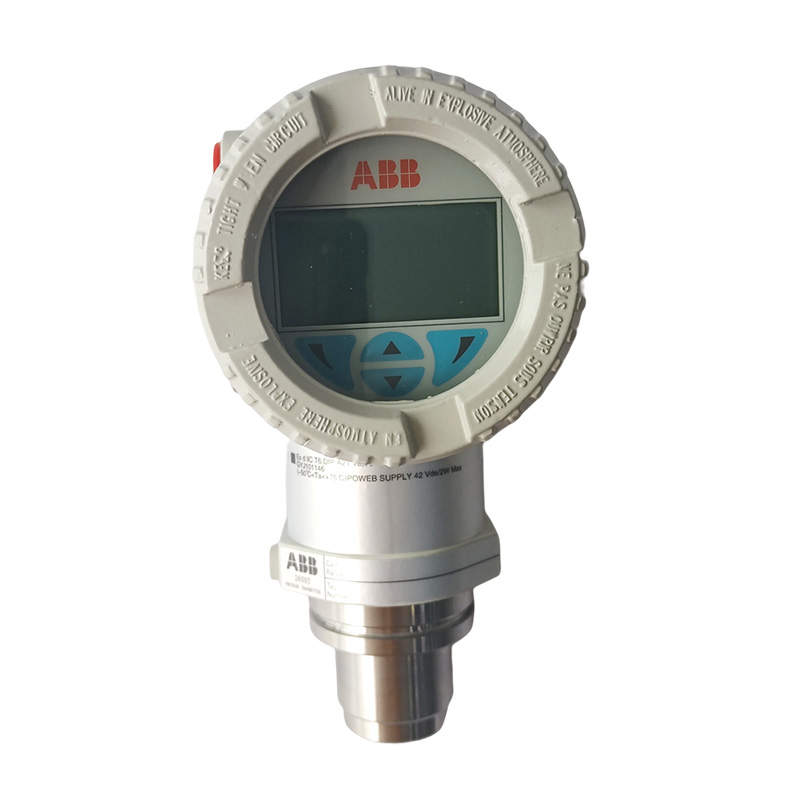

Intelligent ABB 2600T 266GSH Gauge Pressure Transmitter 4-20ma with Hart Communication
Discover the ABB 266GSH gauge pressure transmitter with 4-20mA and HART communication, delivering high accuracy, stability, and reliable industrial performance.
Download Attachment
Whatsapp : +86 17391983629‬
Email : Jayna@xinyiyb.com
CONTACT US

Product Description

ABB2600T 266GSH Gauge Pressure Transmitter

ABB 266GSH gauge pressure transmitter is a widely used device in industrial control. It realizes pressure measurement and control by converting pressure signals into standard electrical signals.

Advantages:

1. High accuracy: 266GSH gauge pressure transmitter uses high-precision sensors to accurately measure pressure with an error of less than 0.06%.

2. High reliability: Its structure is simple and can withstand certain shocks and vibrations. At the same time, it uses patch circuits, which can greatly improve the stability and durability of the equipment. 3. Easy installation: 266GSH pressure transmitter is small in size, easy to install and maintain, and does not take up too much space.

4. Wide application: It can be widely used in chemical industry, water treatment, energy, pharmaceuticals and food processing.

Features:

1. High precision, long-term stability, the use of reliable
2. All transmitter basic accuracy levels are 0.075%, and can provide 0.04% high precision optional; maximum range than 100: 1.
3. Reliable operation, stable performance, long-term drift less than 0.03% / year. 5 years free maintenance.
4. From the signal conversion, calculation, output, to the field settings, debugging, display all the digital chip design, can provide: the use of open HART protocol, the Communicator can be set locally.

Product Details

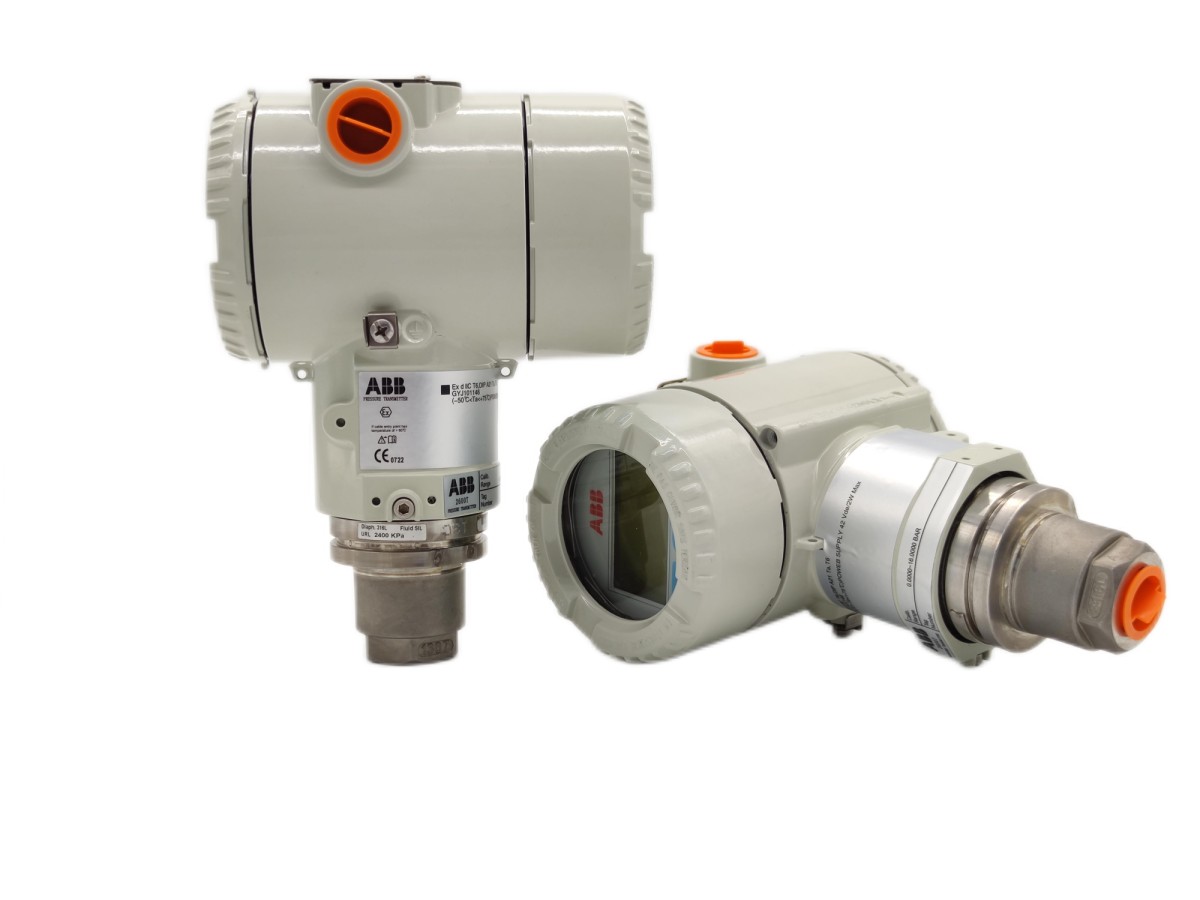

ABB1 (6)

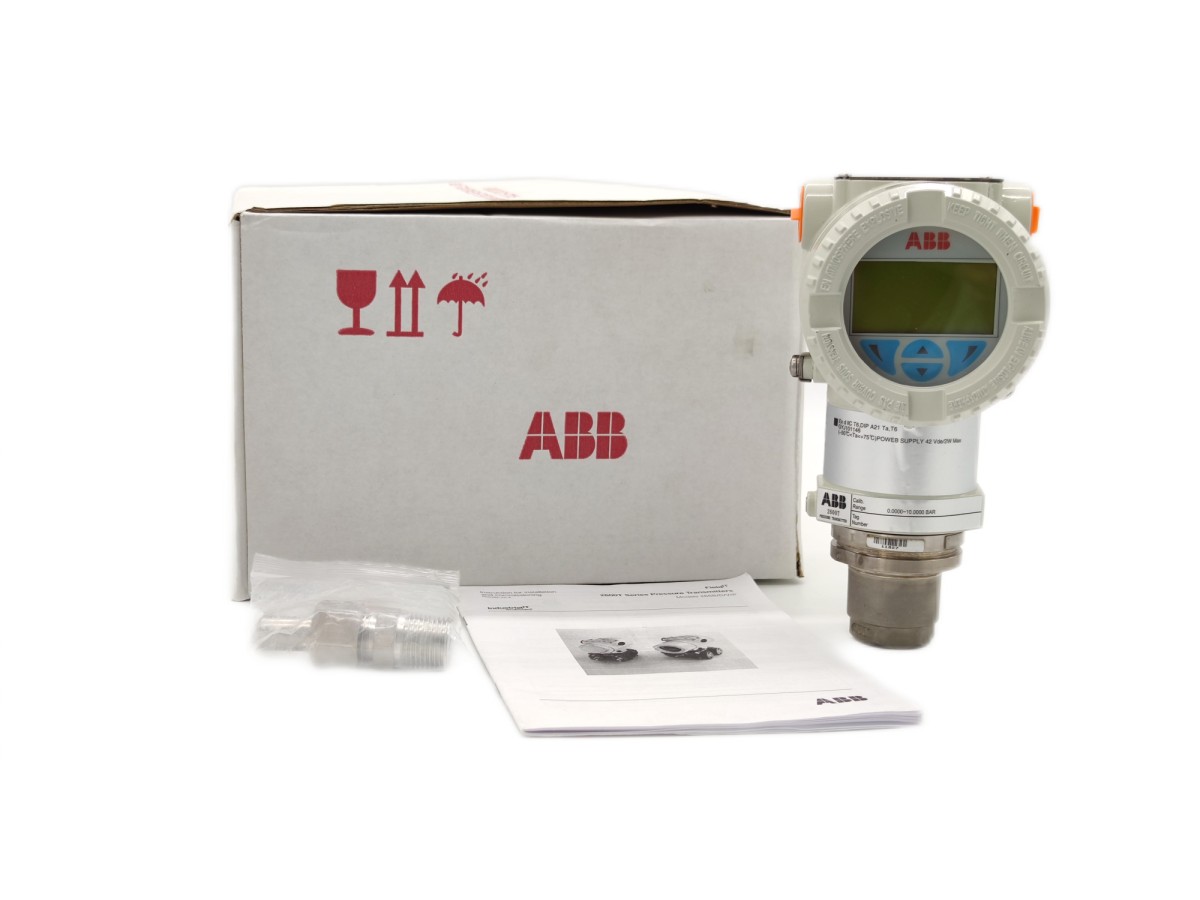

ABB1 (3)

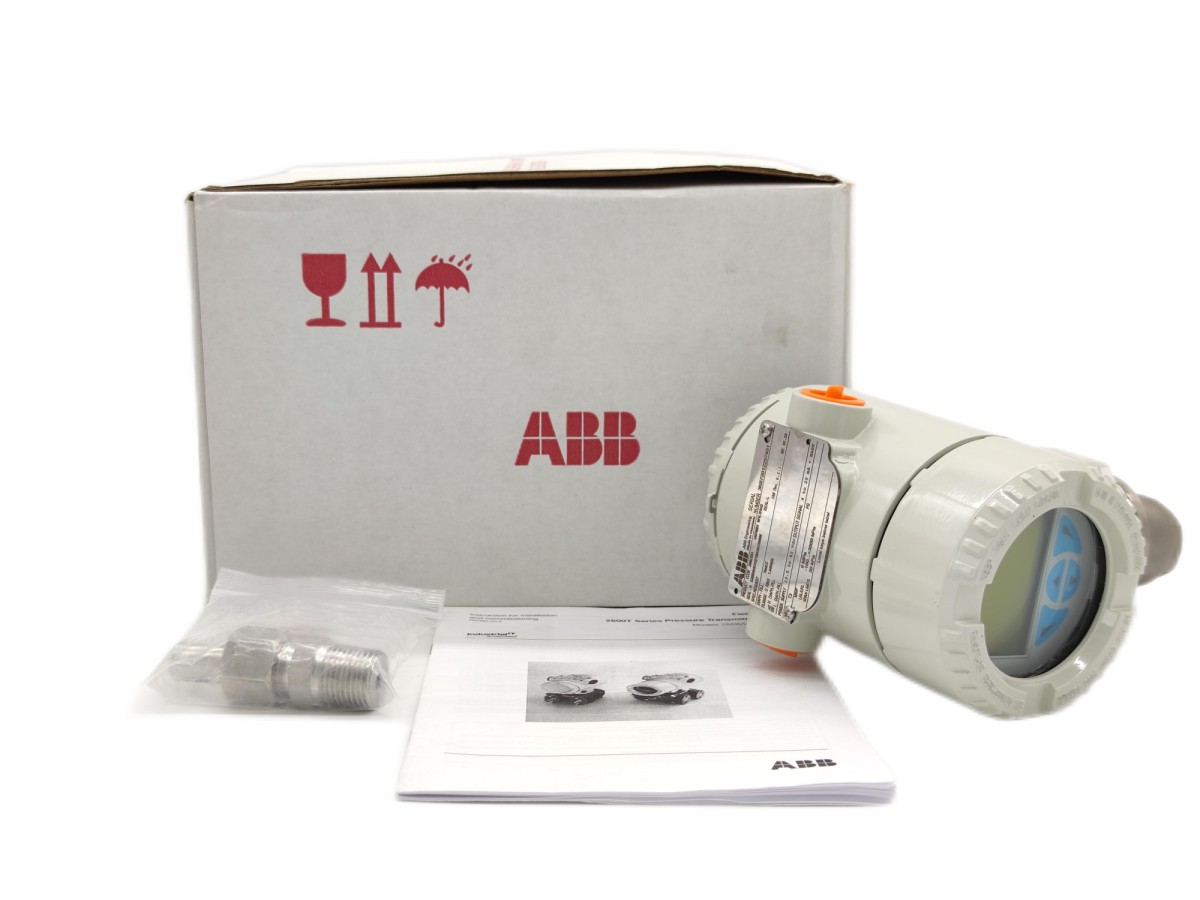

ABB1 (2)

Eric

Message

Submit

Products Recommended

Pressure Transmitters for Industrial Pressure Measurement

Xinyi Instrument supplies pressure transmitters for process control, hydraulic systems, petrochemical plants, water treatment, HVAC, power generation and general industrial pressure monitoring. Our pressure transmitter range covers gauge pressure, absolute pressure, differential pressure, high temperature media and digital communication applications.

Choose from compact pressure transmitters, smart 3051 differential pressure transmitters, diaphragm seal models, RS485 digital pressure transmitters and high frequency dynamic pressure sensors. Standard outputs include 4-20 mA, voltage output, HART and RS485 Modbus options, with stainless steel wetted parts and custom process connections available on request.

Pressure Transmitter Parameters

Pressure Types Gauge, absolute, negative pressure, differential pressure
Measuring Range From low differential pressure to high pressure ranges up to 100 MPa, depending on model
Output Signals 4-20 mA, 0-5 V, 1-5 V, 0-10 V, RS485 Modbus, HART options
Accuracy Typical options include 0.1%, 0.2%, 0.25% and 0.5% FS
Process Connection M20 x 1.5, G1/4, G1/2, NPT and customized thread connections
Wetted Materials Stainless steel, 316L diaphragm and corrosion-resistant sealing options
Media Water, oil, gas, air, steam and compatible liquid or gas media
Applications Pipeline pressure, tank level, flow differential pressure, hydraulic pressure and automation systems

Recommended Pressure Transmitter Series

  • Xinyi YW-150 - differential pressure transmitter for stable industrial measurement.
  • Xinyi YW-3051DP - smart differential pressure transmitter for process control.
  • Xinyi YW-130 / YW-140 - compact pressure transmitters for general pressure monitoring.
  • RS485 Digital Pressure Transmitter - Modbus communication for remote monitoring systems.
  • High Temperature Pressure Transmitter - designed for hot media and demanding process conditions.
  • Siemens, Yokogawa and ABB Options - international brand transmitters available for project matching.

Pressure Transmitter FAQ

What is a pressure transmitter used for?

A pressure transmitter converts the pressure of liquid, gas or steam into a standard electrical signal for PLC, DCS, recorder or control instrument input. It is widely used for pipeline pressure, tank level, flow measurement and process safety monitoring.

How do I choose the right pressure transmitter?

Confirm the pressure range, pressure type, medium, temperature, output signal, accuracy, installation thread, electrical connection and environmental requirements. For corrosive media, high temperature or sanitary applications, diaphragm material and sealing structure are especially important.

What is the difference between gauge, absolute and differential pressure transmitters?

Gauge pressure transmitters measure pressure relative to atmospheric pressure. Absolute pressure transmitters measure pressure relative to vacuum. Differential pressure transmitters measure the pressure difference between two points and are commonly used for flow, filter and level measurement.

Can Xinyi Instrument provide customized pressure transmitters?

Yes. Xinyi Instrument can support customized pressure ranges, process connections, output signals, cable length, display options and model selection for different industrial applications.
