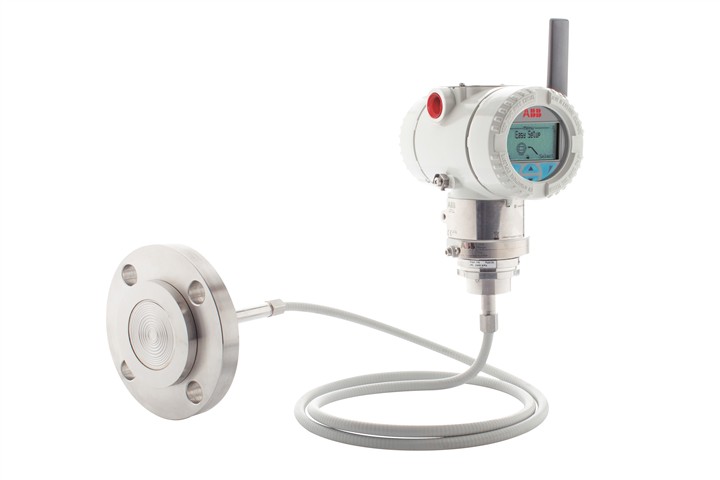

Model 266NRH is a high overload absolute pressure transmitter suitable for measuring liquid, gas or steam flow as well  as level, pressure and density characterized by the remote seal construction.

Thanks to Taylor’s “All-Welded” technology in remote seal manufacturing as well as to the longstanding expertise,  266NRH can offer unmatched total performances and a wide selection of options such as fill fluid, diaphragm material,  capillary protection and mounting connections.

 ABB, leader in severe process measurements, is able to provide the right solution for the most critical process media  at extreme ambient and process conditions. The long-term stability and its proven reliability make of 266NRH the best  application solution for absolute pressure measurements. This transmitter features in-field replaceable electronics  module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive  plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and  inventory costs. Moreover, the innovative TTG (Through The Glass) technology allows users to configure the instruments  in the field without removing the windowed front cover and consequently to save a lot of time.

 SIL2/SIL3 certification issued by TÜV Nord according to IEC 61508 represents another key-feature within 266 pressure  transmitter portfolio. This certification is a real guarantee of protection and makes of 266NRH the smartest fit in  Safety-critical loops.

 266NRH features WirelessHART communication protocol allowing a shorter installation times by eliminating complex wired  infrastructures, and lower overall implementation costs of process measurement.
 266NRH battery life is about 10 years at 32 sec. update rates, delivering a very cost effective and reliable solution  to monitor your process assets.

Data

266NRH: smartness beyond performances.

- Base accuracy : ±0.075%

- Span limits: 1.1 ...16000 kPa abs.; 8 mm HG ... 2320 psia

- Multiple protocol availability – provides integration with HART®, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART  platforms offering interchangeability and transmitter upgrade capabilities

- Full compliance with PED Category III
